Ray Cast Space

A runnable example of the coordinate-space contract behind Blender's two ray casts, the one AI-written code gets wrong most often. Scene.ray_cast(depsgraph, origin, direction) takes and returns world space. Object.ray_cast(origin, direction) takes and returns the object's local space. Feed world coordinates to Object.ray_cast and nothing raises: it quietly misses, or hits the wrong spot.

What it witnesses: a target block carries a transform with every ingredient that separates the two spaces: a translation, a 32° turn about Z, and non-uniform scale (1.55 × 0.62 × 0.62). The example casts five rays at closed-form points on three of its faces, arriving obliquely, and checks each one three ways:

1. Scene.ray_cast hits the closed-form world point (to 1e-4 m). Its normal matches the face's world normal, which comes from the inverse-transpose of matrix_world.
2. Object.ray_cast is fed the origin through matrix_world.inverted() and the direction through that matrix's 3×3 part only, because directions do not translate. It must hit the same polygon. Its local hit point, mapped back through matrix_world (and its normal through the inverse-transpose), must land on the same world point and normal.
3. The trap must bite on this setup. The same world origin and direction handed straight to Object.ray_cast either misses or lands at least 0.25 m from the true hit. Without this, the check could pass by coincidence.

Both 5.2 LTS and 4.5 LTS give identical results: every hit exact to under 1e-6 m, and the world-coordinate trap's closest landing 0.287 m away.

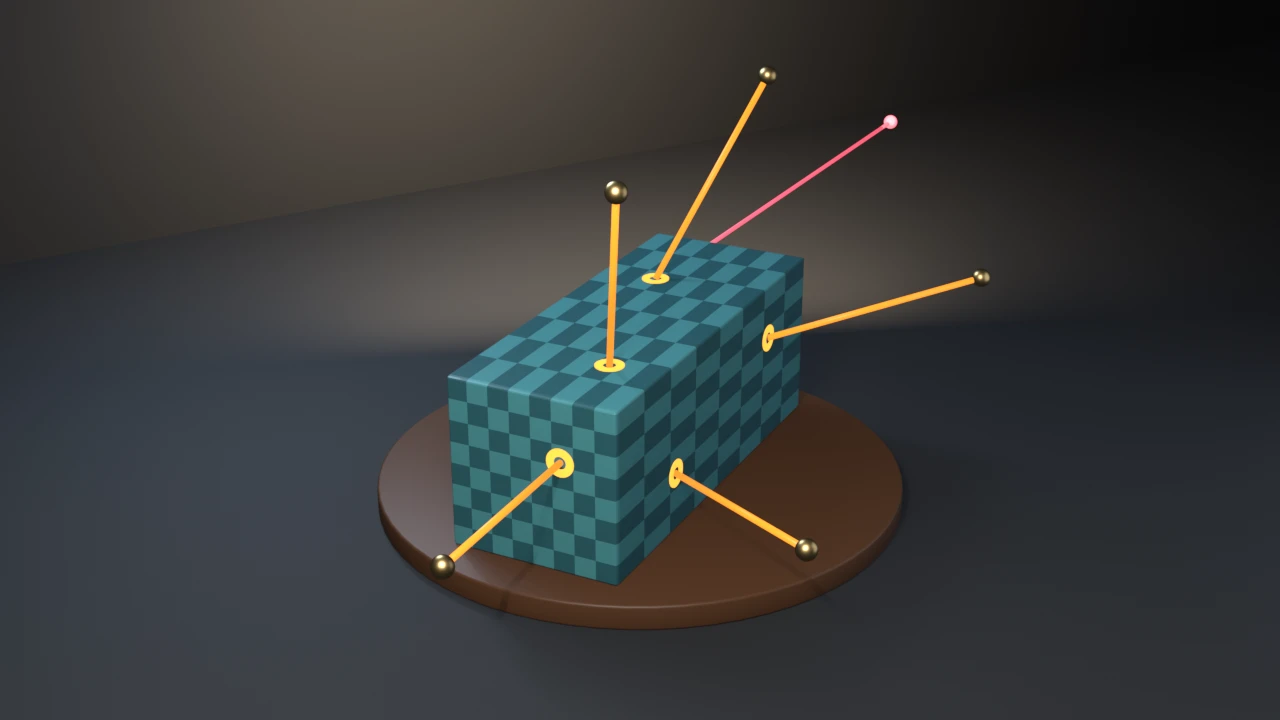

The still shows the block glazed in a teal checker laid out in object coordinates. The cells are square in local space, so the non-uniform scale stretches them into the block's own grid. The block stands on a walnut plinth. Five orange rays run from brass emitter balls to orange hit rings that sit exactly on three faces: the correct casts. One red ray is the first front-face ray's world origin and direction read by Object.ray_cast as if local. In the world that is the ray matrix_world @ origin along matrix_world.to_3x3() @ direction. It starts somewhere else entirely and strikes the far side of the block. A render-only Bevel modifier rounds the block's edges after the check has run.

Run#

# Cheap correctness check (no render) — the CI check:
blender --background --python ray_cast_space.py --

# Falsifier: feed WORLD coords to Object.ray_cast in the checked path. Must exit 4.
blender --background --python ray_cast_space.py -- --world-to-object

# Also render a still (EEVEE on a GPU host; use --engine cycles on GPU-less hosts):
blender --background --python ray_cast_space.py -- --output ray.png
blender --background --python ray_cast_space.py -- --output ray.png --engine cycles

--world-to-object measured on 5.2.1 and 4.5.11: Object.ray_cast ray 0 mapped back to (1.5668, 1.22769, 1.38161), error 1.1253 m (normal error 1.0000, polygon 2 vs Scene 3). The cast hit a different face of the block, a metre from the true point.

Exit codes#

The blender-smoke workflow runs the check on Blender 5.2 LTS and 4.5 LTS (5.1 on the weekly cron, the needs-5.1 PR label, or manual dispatch). Smoke does not pass --output. Its catalog falsifier is --world-to-object (expects exit 4).
