A procedural retro tilt-head kitchen stand mixer on a honed limestone countertop section — a cast enamel body lofted from superellipse sections (a pebble-shaped base foot on four rubber feet, a neck leaning back as it rises, a streamlined motor head) hinged at the back on a pin through two neck knuckles; a chrome trim band wrapped on the head's own sections, a blank badge, a speed lever and a tilt-lock lever; an attachment hub with its cap and thumb screw on the nose; a planetary socket carrying a flat beater whose frame follows the bowl's wall into a 4.5 L brushed stainless bowl with a rolled rim and strap handle, clamped under three bayonet lugs; a cord to a plug; and a balloon whisk, a measuring cup and two brown eggs in a glazed dish — through UVs, bake, LOD, collider, and Unity glTF, asserting recomputed budgets rather than an API contract.

Rendered headless by the showcase piece itself. Select it to enlarge.

witnesses Recomputed: 29620 tris, eight materials with 4328 enamel, 2626 chrome, 5560 stainless, 91 stone, 1174 rubber, 812 ceramic, 760 egg and 562 beater faces, UVs in 0..1 with zero AABB overlap, outer AABB 0.470×0.570×0.389 m, zmin 0, hygiene 0 including zero coplanar cross-shell pairs, all four feet sunk 0.00025–0.00070 m into the counter (band 0.0001–0.0008), the hinge pin 0.000000 m off the axis of both neck knuckles and the head knuckle (cap 0.0003) and spanning all three, the bowl seated 0.00050 m into its plate (band 0.0002–0.0010) and 0.000000 m off its axis (cap 0.0003) with all three lugs engaged, the mixer 0.35899 m tall (0.360 ± 0.006) and the bowl holding 4.5465 L to the brim (4.5 ± 0.35), the beater shaft 0.000000 m off the planetary socket's axis (cap 0.0003) and clearing the bowl's wall by 0.00245 m and its floor by 0.00250 m (band 0.0012–0.0040), the mass centre 0.0658 m inside the feet's support polygon (floor 0.040) at 13.94 kg, one connected assembly of 52 shells, LOD ratios in band, collider 1308 tris, non-empty glTF. --skip-decimate exits 9; --stray-vert 15; --lift-z 16; --float-foot 16; --offset-hinge 17; --offset-bowl 18; --shallow-bowl 19; --offset-beater 20; --long-beater 21; --bunch-feet 22; --loose-cap 23.

category Household

tags mesh export showcase

blender --background --python showcase/stand-mixer/stand_mixer.py --

A showcase piece, not an example, and the fourth in the household category. It builds a procedural retro tilt-head kitchen stand mixer, generic and unbranded, on a short countertop section:

The head is a closed-form surface (head_sec(), head_y(), head_zbot()), and everything mounted on it reads its position from that surface: the band is built on the head's sections offset along their normals, the badge and escutcheon lie in the head's tangent plane with their backs buried by the surface's measured drop under their outlines, the neck's top ring follows the head's underside, and the planetary sits under the head at the bowl's axis. The beater frame is the bowl's inner profile offset inward by the clearance plus the frame's half-width, run straight between the profile's vertices as the bowl's own lathe is. A spline through them bulged toward the wall and cut the clearance from 2.5 mm to 1.65 mm.

Every face carries a part tag (a face attribute written as each part is built), and the audits classify shells by it. The measurements themselves are read off the mesh.

Things the coplanar budget forced:

Shading follows what each part is. The enamel, bowl, lathe parts and swept wire are smooth-shaded; chamfers, knurls and steps stay crisp above 35° and at every material boundary. The enamel is a muted slate blue under a clear coat. The stainless is brushed, its roughness noise squeezed along Z into circumferential streaks. A plain noise read as a blotchy, dirty bowl.

It asserts budget conformance of the generated result. It does not witness an API contract. "It rendered without error" is not a check.

Composes skills mesh-editing-and-bmesh, bake-high-to-low, depsgraph-and-evaluated-data, engine-export-presets, and snippets bake_normal_high_to_low.py, setup_bake_target_image.py, lod_chain.py / decimate_to_budget.py, convex_hull_collider.py, export_preset_unity.py (helpers copied inline, not imported).

Intended size: a mixer 0.36 m tall on a 0.03 m counter, a 0.296 × 0.196 m base foot, a 0.34 m head, and a 4.5 L bowl. The outer AABB is 0.470 × 0.570 × 0.389 m. The counter sets the plan and the head's crown sets the top. The origin is under the counter.

Budgets#

Every budget is declared as a named constant. Every gate recomputes its value from the mesh, materials, UVs, evaluated LOD, collider, or export file.

AxisDeclaredMeasured (5.2.1)
Base triangles29000–3030029620
LOD1 ratio0.32–0.62 of base0.5000
LOD2 ratio0.10–0.35 of base0.2200
Materialsexactly 8 distinct; ≥3980 enamel, ≥2410 chrome, ≥5110 stainless, ≥84 stone, ≥1080 rubber, ≥745 ceramic, ≥700 egg, ≥515 beater faces8 slots; 4328 / 2626 / 5560 / 91 / 1174 / 812 / 760 / 562
UVsin 0..1, AABB overlap ≤ 1e-5in range, overlap 0
Outer AABB(0.470, 0.570, 0.389) m ± 0.01(0.4700, 0.5700, 0.3890), zmin 0
Collider tris≤ 24501308
Exportwritten, size > 0, removed after measuring2283036 / 2283036 / 2283032 bytes (4.5.11 / 5.1.2 / 5.2.1)

No falsifier changes the topology, so every one of them measures the default's 29620 triangles and the default's AABB. --shallow-bowl keeps the bowl's four wall stations, spread up to the lower rim, and the beater follows the full-height wall's r(z), which is the same function.

DECIMATE COLLAPSE triangle counts are not identical across Blender series, so the LOD gate is a ratio band, not an exact count. Bake pixels are stochastic, so the bake gate is has_data plus operator FINISHED, not byte-identity. Construction uses no RNG; two default runs print identical measurements.

Hygiene#

Recomputed from the generated mesh, not asserted about the script.

AxisDeclaredMeasured
Non-manifold edges00
Loose verts / edges0 / 00 / 0
Doubles merged at 1e-500
Zero-area faces00
N-gons00
Coplanar cross-shell face pairs (KD range 0.05 m, plane ε 1e-4)00
Grounded: zminwithin 1e-4 of 00.0000
Feet: each of the 4 rubber feet sunk into the counter top read off the mesh0.0001–0.0008 m0.00025, 0.00040, 0.00055, 0.00070

Hinge, bowl, size, beater, stance and assembly#

AxisDeclaredMeasured
Hinge: the pin's PCA axis against the axis of each of the 2 neck knuckles and the head knuckle, at that knuckle's own station; the pin spans each in Y; tilt off Y≤ 0.0003 m; 2 + 1 knuckles; 0 not through; ≤ 0.5°0.000000; 2 + 1; 0; 0.0000°
Bowl seated: plate top minus bowl foot; bowl axis (lathe centroid) against the plate's; each of the 3 lugs overlapping the bowl's flange (BVH); handle on the bowl0.0002–0.0010 m; ≤ 0.0003 m; 3 of 30.00050; 0.000000; 3 of 3, handle on
Size: head crown above the counter top; brim capacity (rays from the bowl's own axis to its inner wall, 1 mm slices from the floor to the rim)0.360 ± 0.006 m; 4.5 ± 0.35 L0.35899 m; 4.5465 L
Beater coaxial: the shaft's PCA axis against the planetary socket's axis; shaft tilt≤ 0.0003 m; ≤ 0.5°0.000000; 0.0000°
Beater clearance ("dime test"): nearest beater vertex to the bowl's surface; beater's lowest point above the bowl's floor (a ray down the bowl's axis)both 0.0012–0.0040 m0.00245; 0.00250
Stance: mass centre (shell volumes × densities, counter and props excluded) inside the convex polygon of the feet's contact faces≥ 0.040 m0.0658 (13.94 kg)
One connected assembly (union of shells whose BVH trees overlap)1 component1 (52 shells)

A tilt-head mixer carries its motor over the bowl, well forward of the neck, and stands because its feet are spread under it. The stance budget measures that. The densities are named constants (cast enamel 6600, chrome and stainless 7900, coated aluminium 2700, rubber 1200), with the three castings overridden where the mesh is solid but the part is not: head 850 (a shell round a motor and air), neck 1300, base 1400.

Falsifiers#

Each falsifier violates one named budget. Every one was run on 5.2.1 and exited its declared code. None moves the envelope: every run measured the default's triangle count and outer AABB, and every budget checked before its own stayed green.

FlagBudget violatedExit
--skip-decimateLOD1 ratio band (measured 1.0000)9
--stray-vertloose vertex count is 0 (measured 1, placed inside the envelope)15
--lift-zbounding box zmin is 0 (measured 0.05000)16
--float-footfeet on the counter (one foot 3 mm up: seat −0.00230 m)16
--offset-hingehinge pin coaxial through its knuckles (pin 2 mm aft: 0.002000 m)17
--offset-bowlbowl concentric on its plate (bowl slid 1 mm: 0.001000 m)18
--shallow-bowlbowl capacity (rim 30 mm lower: 3.4959 L)19
--offset-beaterbeater coaxial with the socket (0.000800 m)20
--long-beaterbeater clearance band (frame 2 mm lower: wall 0.00050, floor 0.00050 m)21
--bunch-feetstance (feet under the neck: margin −0.0785 m)22
--loose-capone connected assembly (hub cap 5 mm off the hub: 2 components)23

--offset-bowl still leaves the beater 1.72 mm clear of the wall and all three lugs engaged, and --offset-beater leaves it 1.87 mm clear, so only the concentric and coaxial budgets see them. --float-foot leaves three feet and the counter grounding the piece. --bunch-feet keeps every foot under the base and on the counter, so only the mass centre moves out of the support polygon.

Run#

blender --background --python stand_mixer.py --
blender --background --python stand_mixer.py -- --skip-decimate
blender --background --python stand_mixer.py -- --stray-vert
blender --background --python stand_mixer.py -- --lift-z
blender --background --python stand_mixer.py -- --float-foot
blender --background --python stand_mixer.py -- --offset-hinge
blender --background --python stand_mixer.py -- --offset-bowl
blender --background --python stand_mixer.py -- --shallow-bowl
blender --background --python stand_mixer.py -- --offset-beater
blender --background --python stand_mixer.py -- --long-beater
blender --background --python stand_mixer.py -- --bunch-feet
blender --background --python stand_mixer.py -- --loose-cap
blender --background --python stand_mixer.py -- --output mixer.png

Smoke passes no flags.

The camera looks along (−0.72, 0.69), so the hero shows the mixer's nose and its −Y side, with the badge, the speed lever, the hinge boss and the tilt-lock lever toward the camera, and the props in the foreground. The wall behind the mixer in frame lies 2.5 m to its −X, so the warm wedge is aimed there rather than at the wall straight behind the piece.

Exit codes#

File-local. 9 is a valid check code. 10 is reserved for gallery_framing.check_framing on the --output path. 15–19 are the hygiene and joint-fit family. 20–23 are file-local. 24 is the asset-quality floor on the render path: check_asset_quality returns 11, which this piece already spends on the collider ceiling, so the call site remaps it.

CodeMeaning
0Success
1Uncaught exception (FATAL wrapper)
2argparse / usage
3Mesh did not build / no UV layer
4Base triangle count outside range
5Material count ≠ 8 distinct slots, or a face-count floor missed
6UVs outside 0..1
7UV AABB overlap above tolerance
8World AABB off declared outer size
9LOD ratio band (--skip-decimate lands here)
10Framing gate (render path only)
11Collider triangle count above ceiling
12Bake did not finish or image has no data
13Export file missing or empty
14--output produced no file
15Mesh hygiene: loose, non-manifold, zero-area, doubles, n-gons, coplanar cross-shell pairs
16Not grounded: bounding box zmin off 0, or a foot off the counter or not 4 feet (--lift-z, --float-foot)
17Hinge pin off a knuckle's axis, not spanning one, tilted, or not 2 + 1 knuckles (--offset-hinge)
18Bowl seat: bite outside its band, bowl off the plate's axis, a lug not engaged, or the handle off the bowl (--offset-bowl)
19Size: mixer height or bowl capacity off (--shallow-bowl)
20Beater shaft off the socket's axis or tilted (--offset-beater)
21Beater clearance to the bowl's wall or floor outside its band (--long-beater)
22Stance: mass centre within 40 mm of the feet's support polygon's edge (--bunch-feet)
23Assembly splits into more than one connected component (--loose-cap)
24Asset-quality floor (render path only; remapped from 11)

Source

showcase/stand-mixer/stand_mixer.py View the script on GitHub →

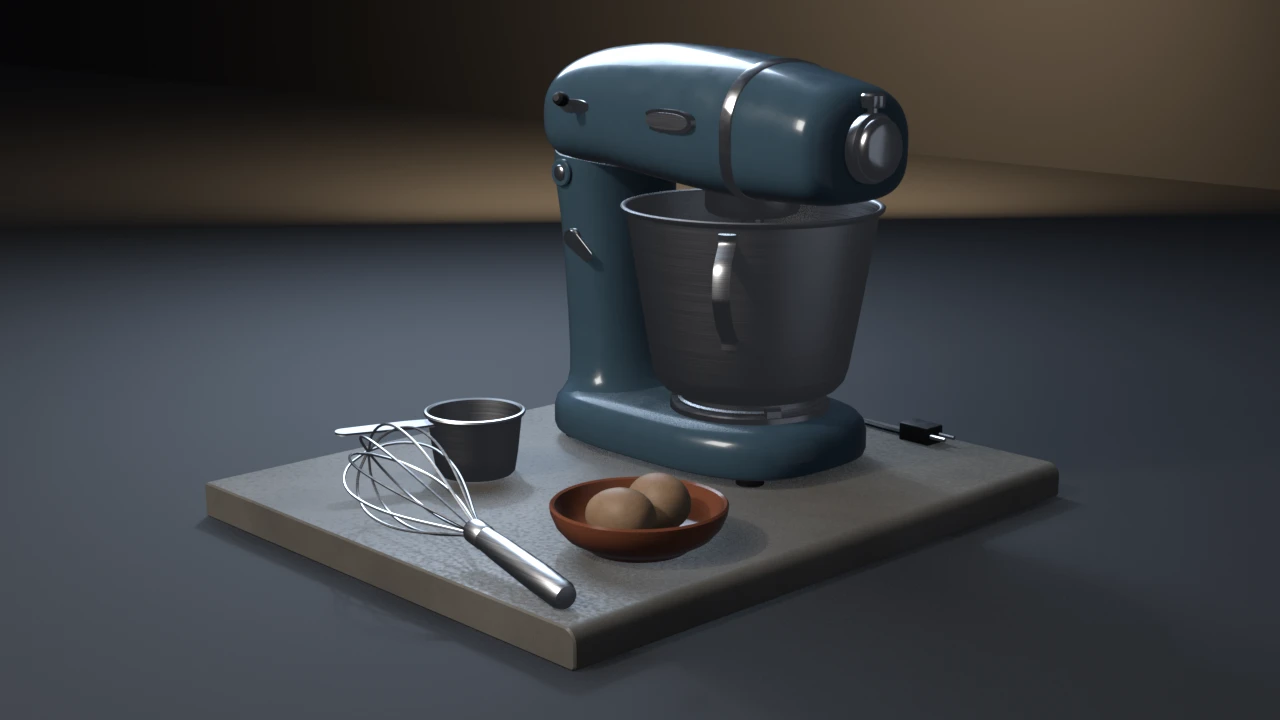

A slate-blue retro stand mixer with a chrome band and a brushed steel bowl on a stone countertop, beside a wire whisk, a steel measuring cup and two brown eggs in a terracotta dish.
