showcase/apothecary-shelf/
A procedural apothecary shelf — housed shelves, gallery rails, a drawer bank and an arched crest, stocked with fifteen lathed bottles, flasks and glazed jars, each corked or lidded and labelled — carried through UVs, bake, LOD, convex collider, and Unity glTF, asserting recomputed budgets rather than an API contract.

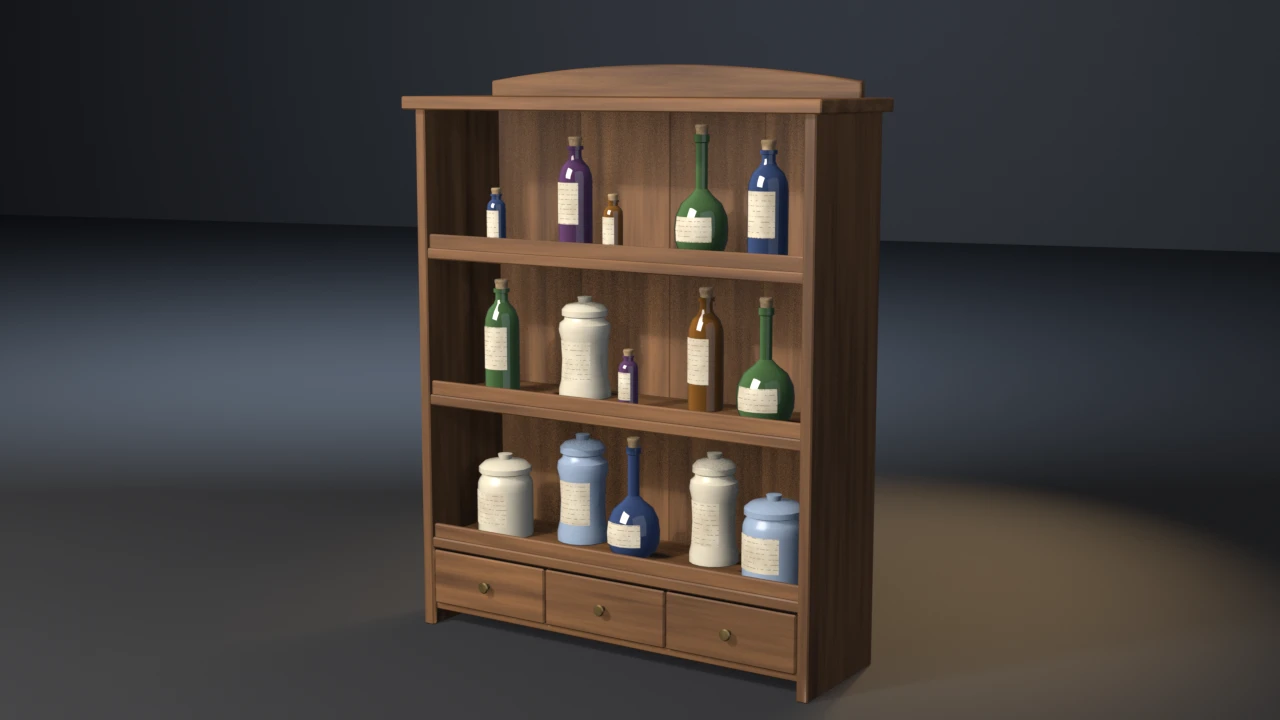

Rendered headless by the showcase piece itself. Select it to enlarge.
category Village
blender --background --python showcase/apothecary-shelf/apothecary_shelf.py --
An apothecary shelf: a stained carcass with three shelves housed in its sides, a gallery rail along each shelf, lapped back boards, a bank of three drawers with brass knobs and an arched crest, stocked with fifteen vessels in five forms (bottle, flask, jar, albarello, vial). Every vessel is corked or lidded and carries a paper label. A showcase piece, not an example — it witnesses no API contract. It asserts that generated geometry meets declared asset budgets, recomputed from the finished mesh.
| Shipped content | Used for |
|---|---|
skills/mesh-editing-and-bmesh | chamfered boards, arched crest, lathed vessels, closures and knobs, labels on the bodies' rings, all in one bmesh |
skills/custom-properties | face attributes (PlankTone, GrainDir, Tint) read by the shaders |
skills/procedural-materials-and-shaders | grained stain, tinted glass, glaze, cork, inked paper, aged brass |
skills/bake-high-to-low | Cycles tangent-space normal bake, high onto low |
skills/engine-export-presets | Unity glTF (export_yup=True) |
skills/depsgraph-and-evaluated-data | evaluated triangle counts for the LOD ratios |
snippets/decimate_to_budget.py | LOD1 / LOD2 COLLAPSE chain |
snippets/convex_hull_collider.py | one hull over the carcass and knobs |
snippets/lod_chain.py | LOD naming and ratio pattern |
examples/mesh-hygiene-audit | hygiene combinatorics (copied, not imported) |
A stocked shelf fails invisibly when a vessel does not fit between its shelf and the one above. A flask a few centimetres too tall runs its neck up into the next shelf, and nothing else notices:
The piece reads each vessel's top (body or closure, whichever is higher) and the underside of the lowest horizontal member above it off the finished mesh, and asserts a headroom floor of 20 mm. The tightest vessel clears by 24.05 mm.
--tall-flask is the falsifier built for exactly this. It stretches the flask on the middle shelf by 1.20. It then runs 5.5 mm into the shelf above and exits 20, while every seat, every joint and the envelope still pass.
Declared in the script as named constants, recomputed from the generated mesh. Measured values are from Blender 5.2.1; every one is byte-identical on 4.5.11 and 5.1.2 (only the glTF file size differs, by up to 8 bytes, which is exporter metadata and not a budget).
| Budget | Band | Measured | ||
|---|---|---|---|---|
| Base triangles | 9800–11100 | 10456 | ||
| LOD1 ratio | 0.32–0.62 | 0.5000 | ||
| LOD2 ratio | 0.10–0.35 | 0.2200 | ||
| Material slots | exactly 6, distinct | 6 | ||
| Wood / glass / glaze faces | ≥ 450 / 1800 / 1300 | 525 / 2080 / 1520 | ||
| Cork / paper / brass faces | ≥ 850 / 380 / 300 | 960 / 420 / 336 | ||
| UV bounds | inside 0..1 | (0.0009, 0.0010)–(0.9991, 0.9990) | ||
| UV AABB overlap | ≤ 1e-5 | 0.000000 | ||
| Outer AABB | 0.876 × 0.274 × 1.076 m ± 0.020 | 0.8760 × 0.2740 × 1.0760 | ||
| Collider triangles | ≤ 200 | 138 | ||
| Normal bake | {'FINISHED'} with image data | {'FINISHED'}, has_data=True | ||
| glTF export | file written, non-empty | ~449 kB | ||
| Hygiene | all zero | loose 0/0, non-manifold 0, zero-area 0, doubles 0, n-gons 0, coplanar cross-shell pairs 0 | ||
| Grounded AABB | \ | zmin\ | ≤ 1e-4 | 0.00000 |
| Named sides | 2 sides, each zmin ≤ 1e-4 | 2 at 0.00000 | ||
| Dado | 7 cross members, each ≥ 5 mm into both sides and ≥ 6 mm clear of the far face | 8.00 mm in, 14.00 mm clear | ||
| Closure bite | every cork and lid 2–10 mm into its body | 5.00 mm | ||
| Knob bite | 3 knobs, each 2–10 mm into its drawer front | 4.00 mm | ||
| Vessel seat | 15 vessels, each 0.5–3.0 mm into its shelf | 1.00–1.80 mm | ||
| Drawer seat | 3 drawer fronts, each 1–4 mm into the base | 2.00 mm | ||
| Label seat | inner face 0.1–0.8 mm inside the body, outer face ≥ 0.4 mm proud | 0.30 mm in, 0.80 mm proud | ||
| Headroom | every vessel ≥ 20 mm under the member above | 24.05 mm | ||
| Vessel overlaps | 0, vessel against vessel and against the carcass | 0 | ||
| Form spread | widest / narrowest body ≥ 2.0; tallest / shortest ≥ 1.5 | 3.146 / 2.202 | ||
| Edge treatment | right-angle wood edges | 0 |
Real-world size: 0.88 m wide, 1.08 m to the top of the crest and 0.27 m deep. It is a wall shelf for a shop counter or a study, and each compartment is 260 mm clear.
DADO (8 mm) into both sides and stop 14 mm short of the outer faces. The top board is seated over the sides and the back boards (TOP_SEAT). The crest is an extruded outline whose top is a shallow arc, seated CREST_BITE into the top board. Every board is chamfered at 2.5 mm with material= pinned to wood, edges sorted by index. The crest's caps are single n-gons, chamfered and then triangulated.DRAWER_BITE into the base, with a 4 mm reveal all round. Each has a turned brass knob lathed along −Y, its shank KNOB_BITE into the front.Sizes vary by a closed-form ±5 % per vessel. Each shelf shares its clear width out evenly. Vessels step front and back alternately inside the depth left between the rail and the back boards.
CLOSURE_BITE into the body.Every convention in showcase/README.md, and whether it applies here.
| Convention | Applies | How |
|---|---|---|
| Deterministic, budgets declared, assertions recompute | yes | no RNG; every value above is read off the mesh |
| Falsifier fails the budget it targets | yes | table below, proven on all three binaries |
| Hygiene incl. cross-shell coplanar | yes | exit 15; seats, lap steps and cork flares chosen to keep it at 0 |
| Named supports | yes | the two sides (--float-side) |
| Joint-fit budgets | yes | dado bite and far-face clearance per cross member (--short-shelves) |
| A member is tenoned into its seat | yes | sides into the top, crest into the top, back boards into base and top |
| A platform bears on something | yes | every shelf housed in both sides and biting the back boards |
| Carried parts bite their bearers | yes | vessels in shelves (--float-jars), drawer fronts in the base (--lift-drawers) |
| A joint bites; touching is not joining | yes | closures (--pop-corks) and knobs (--pull-knobs) as banded bites |
| Bands on a curved host are built on the host's arc | yes | labels on the body's own rings and angles (--float-labels) |
| Scattered parts do not interpenetrate | yes | exit 21 (--crowd-jars) |
| Scatter varies in size | yes | form spread, exit 22 (--uniform-vessels) |
| Edge treatment: no right angles | yes | exit 23 (--sharp-rail), wood only; lathed feet are chamfered by construction |
| Aim an edge falsifier at one member | yes | one rail left square: 12 edges, −32 triangles |
| Chamfer n-gon caps, then triangulate | yes | crest caps |
| Sort bmesh operator inputs | yes | bevel edges sorted by index |
| A plank wall is boards | yes | four lapped back boards |
| Identical boards read as CG | yes | per-board PlankTone and GrainDir |
| Shading is part of the model | yes | vessels, closures and knobs smooth (blown, turned); every edge over 35° hard, so boards read flat with crisp chamfers |
| One substance, one slot | yes | wood, glass, glaze, cork, paper, brass; glass and glaze colour per vessel from Tint |
| Iron is not chrome | n/a | brass knobs: metallic 0.9, roughness 0.42, darkened by noise |
| Bake texels per UV cell | measured, not a budget | 512 px over a 32-cell grid, about 15 px per cell |
| The bake cage is narrower than the nearest neighbour | yes | CAGE_EXTRUSION 0.01 m |
| Level on the stage; stage 60 m | yes | turned about Z only; 60 m floor and wall |
| Keep a falsifier's envelope still | yes | every falsifier leaves the AABB unchanged except --pull-knobs (+6 mm in Y, inside BBOX_TOL) |
| Mirror symmetry, plumb, rope, masonry, roofs, rings, scatter on terrain, vessels with liquid | no | the piece has none of these |
Each breaks one pipeline stage so a named budget fails. All fourteen were run on 4.5.11, 5.1.2 and 5.2.1 and exited the same declared code on all three.
| Flag | Target budget | Breaks | Exit |
|---|---|---|---|
--skip-decimate | LOD1 ratio | drops the DECIMATE modifiers, LOD1 ratio goes to 1.0000 | 9 |
--stray-vert | mesh hygiene | adds one loose vertex inside the carcass | 15 |
--lift-z | grounded zmin | lifts the whole mesh 50 mm | 16 |
--float-side | named sides | lifts the left side 5 mm; the right side still grounds the AABB | 16 |
--short-shelves | dado bite | stops the three shelves 4 mm short of the sides; −4.0 mm | 17 |
--pop-corks | closure bite | lifts every cork and lid 10 mm; −5.0 mm | 17 |
--pull-knobs | knob bite | pulls every knob 8 mm out of its front; −4.0 mm | 17 |
--float-jars | vessel seat | lifts every vessel 6 mm off its shelf; −5.0 to −4.2 mm | 18 |
--lift-drawers | drawer seat | lifts the drawer fronts 3 mm; −1.0 mm | 18 |
--float-labels | label seat | builds every label 1.1 mm off its body; −1.1 mm | 18 |
--tall-flask | headroom | stretches the middle-shelf flask 1.20 into the shelf above; −5.5 mm | 20 |
--crowd-jars | vessel overlaps | draws the bottom shelf's jars to 0.55 of their spacing; 3 overlaps | 21 |
--uniform-vessels | form spread | one radius and height for every vessel; 1.000 / 1.000 | 22 |
--sharp-rail | edge treatment | leaves the top rail unchamfered; 12 right-angle edges | 23 |
File-local and sequential. 9 is a valid check code. 1 is the FATAL wrapper — a crash, never a named check. 19 (plumb and real-world size) is reserved across pieces and unused here.
| Code | Meaning |
|---|---|
| 0 | Success |
| 1 | Uncaught exception (FATAL wrapper) |
| 2 | argparse / usage |
| 3 | Mesh did not build, or has no UV layer |
| 4 | Base triangle count outside band |
| 5 | Material slots, or a material's face floor |
| 6 | UVs outside 0..1 |
| 7 | UV AABB overlap above tolerance |
| 8 | Outer AABB off declared size |
| 9 | LOD1 or LOD2 ratio outside band (--skip-decimate) |
| 10 | Framing gate (examples/gallery_framing.py, render path only) |
| 11 | Collider triangles above ceiling |
| 12 | Normal bake failed or produced no image data |
| 13 | glTF export missing or empty |
| 14 | --output produced no file |
| 15 | Mesh hygiene (--stray-vert) |
| 16 | Grounded zmin, or a side floating (--lift-z, --float-side) |
| 17 | Dado, closure or knob bite (--short-shelves, --pop-corks, --pull-knobs) |
| 18 | Vessel, drawer or label seat (--float-jars, --lift-drawers, --float-labels) |
| 20 | Headroom under the member above (--tall-flask) |
| 21 | Vessels overlap each other or the carcass (--crowd-jars) |
| 22 | Form spread below floor (--uniform-vessels) |
| 23 | Right-angle wood edges (--sharp-rail) |
| 24 | Gallery asset-quality violation (render path; the floors' 11 is remapped here) |
# Budget check, no render. ~4.5 s on 5.1 and 5.2.
blender --background --python apothecary_shelf.py --
# Falsifier: the middle-shelf flask runs into the shelf above. Must exit 20.
blender --background --python apothecary_shelf.py -- --tall-flask
# Falsifier: the shelves stop short of their dados. Must exit 17.
blender --background --python apothecary_shelf.py -- --short-shelves
# Render the gallery still (EEVEE; --engine cycles on a GPU-less host).
blender --background --python apothecary_shelf.py -- --output apothecary_shelf.webp
Smoke runs the check-only path. It does not pass --output or any falsifier.
| Value | 4.5.11 | 5.1.2 | 5.2.1 |
|---|---|---|---|
| Base triangles | 10456 | 10456 | 10456 |
| LOD1 / LOD2 tris | 5228 / 2300 | same | same |
| Face counts (wood / glass / glaze / cork / paper / brass) | 525 / 2080 / 1520 / 960 / 420 / 336 | same | same |
| Outer AABB | 0.8760 × 0.2740 × 1.0760 | same | same |
| Collider tris | 138 | 138 | 138 |
| Headroom / form spread | 24.05 mm / 3.146, 2.202 | same | same |
| glTF bytes | 448604 | 448600 | 448596 |
