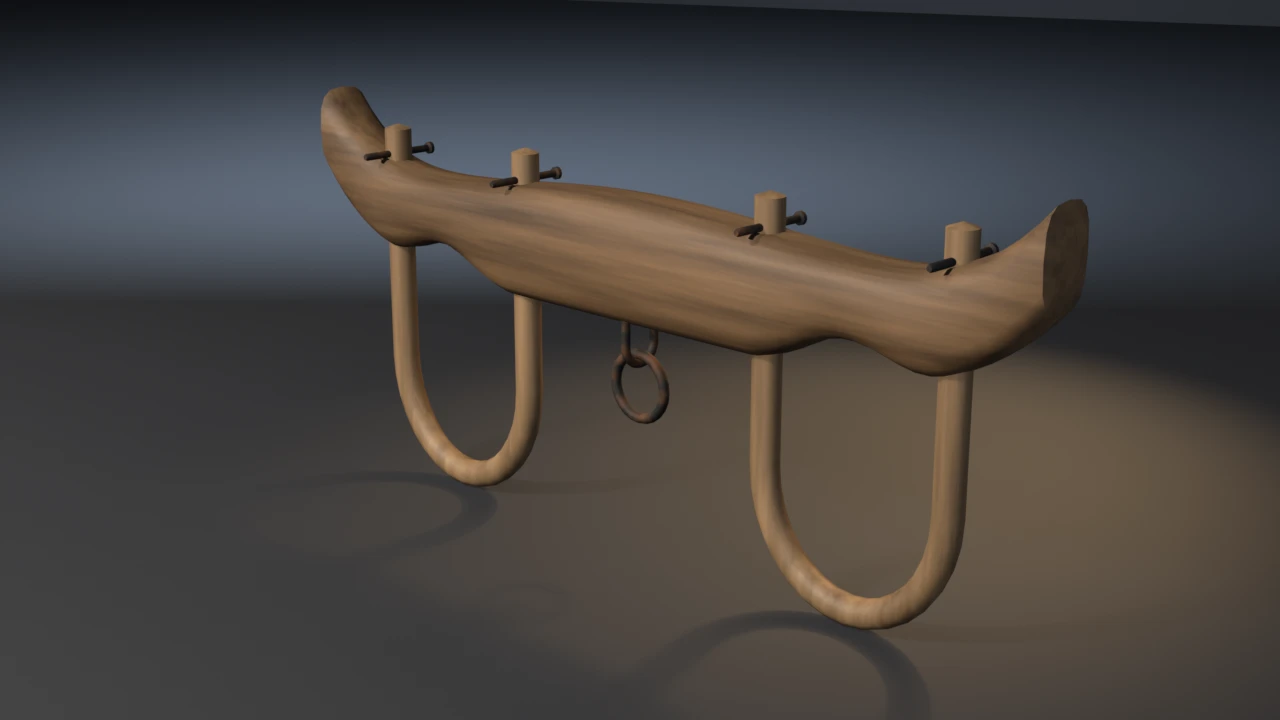

Rendered headless by the showcase piece itself — click to zoom.

witnesses Recomputed: 5288 tris, three materials with 1088 oak, 720 hickory and 936 iron faces, UVs in 0..1 with zero AABB overlap, outer AABB 1.424×0.140×0.640 m, zmin 0, hygiene 0 including zero coplanar cross-shell pairs, both bows standing on the floor, every leg 52.7 mm proud of the beam, the staple 17.5 mm into it, four pins resting 1.5 mm into its crown, a ring threaded along the staple's bar and hung 1.0 mm onto it, two mirrored bows, and each neck opening 266 mm wide and 371 mm high. --pinch-bows exits 19 at 196 mm while the bows still ground and the envelope is unchanged; --edge-on-ring exits 17.

blender --background --python showcase/wooden-yoke/wooden_yoke.py --

A double ox yoke: a carved oak beam with two neck saddles and upturned ends, two bent-hickory oxbows whose legs pass up through the beam and are pinned above it, and a forged staple under the centre carrying a hung iron ring. It stands on the bottoms of its two bows. A showcase piece, not an example — it witnesses no API contract. It asserts that generated geometry meets declared asset budgets, recomputed from the finished mesh.

What it composes#

Shipped content	Used for
`skills/mesh-editing-and-bmesh`	lofted beam, swept bows and staple, lathed pins, torus ring, all in one `bmesh`
`skills/custom-properties`	face attributes (`PlankTone`, `GrainDir`) read by the wood shaders
`skills/procedural-materials-and-shaders`	oak and hickory with grain along each piece, rusted rough iron
`skills/bake-high-to-low`	Cycles tangent-space normal bake, high onto low
`skills/engine-export-presets`	Unity glTF (`export_yup=True`)
`skills/depsgraph-and-evaluated-data`	evaluated triangle counts for the LOD ratios
`snippets/decimate_to_budget.py`	LOD1 / LOD2 COLLAPSE chain
`snippets/convex_hull_collider.py`	a hull for the beam and for each bow leg and foot, merged into a compound
`snippets/lod_chain.py`	LOD naming and ratio pattern
`examples/mesh-hygiene-audit`	hygiene combinatorics (copied, not imported)

The budget that matters#

A yoke exists to close round two necks. Each bow and the saddle above it make an opening an ox's neck passes through. A bow bent too tight fails its job, and nothing else notices:

it still stands on the floor, so zmin and the named bows pass;
its legs still pass up through the beam and stand proud of it;
its pins still rest on the beam;
it still fits the bounding box, because the beam sets the envelope.

The piece measures each opening off the finished mesh:

Width is the gap between the inner faces of the bow's two legs, taken over the straight run of the legs. Band 240–300 mm; measured 266 mm.
Height runs from the bow's inner bottom up to the saddle's apex on the beam's underside. Band 300–400 mm; measured 370.9 mm.

--pinch-bows is the falsifier built for exactly this. It brings each bow's legs 35 mm closer to its centre, so the opening closes to 196 mm and the run exits 19. Every other budget still passes, and the AABB is unchanged.

Budgets#

Declared in the script as named constants, recomputed from the generated mesh. Measured values are from Blender 5.2.1; every one is byte-identical on 4.5.11 and 5.1.2 (only the glTF file size differs, by 4 bytes, which is exporter metadata and not a budget).

Budget	Band	Measured
Base triangles	4800–5800	5288
LOD1 ratio	0.32–0.62	0.5000
LOD2 ratio	0.10–0.35	0.2197
Material slots	exactly 3, distinct	3
Oak / hickory / iron faces	≥ 950 / 650 / 750	1088 / 720 / 936
UV bounds	inside 0..1	(0.0100, 0.0100)–(0.9900, 0.9900)
UV AABB overlap	≤ 1e-5	0.000000
Outer AABB	1.424 × 0.140 × 0.640 m ± 0.020	1.4240 × 0.1400 × 0.6400
Collider triangles	≤ 300	260 (seven hulls)
Normal bake	`{'FINISHED'}` with image data	`{'FINISHED'}`, `has_data=True`
glTF export	file written, non-empty	~160 kB
Hygiene	all zero	loose 0/0, non-manifold 0, zero-area 0, doubles 0, n-gons 0, coplanar cross-shell pairs 0
Grounded AABB	\	zmin\	≤ 1e-4	0.00000
Named bows	2 bows, each zmin ≤ 1e-4	2 at 0.00000
Leg protrusion	4 legs, each 25–70 mm above the beam's top at that leg	52.7 mm
Staple bite	8–30 mm into the beam	17.5 mm
Threaded ring	ring's hole axis against the staple's bar, cos ≥ cos 20°	1.0000
Pin seat	4 pins, shank 0.5–3.0 mm into the beam's top	1.50 mm
Hung ring	ring's inner edge against the bar's top, −3.0 to +0.5 mm	−1.00 mm
Neck opening	width 240–300 mm, height 300–400 mm	266.0 / 370.9 mm
Mirrored bows	extents mirrored through x = 0 within 0.1 mm	0.000 mm

Real-world size: a 1.42 m beam over two 266 mm openings 0.80 m apart, standing 0.64 m to the tips of its upturned ends. It is a pair yoke for draught oxen.

Construction#

Beam. Lofted along X through superellipse sections (exponent 3), 16 vertices each. Every shaping term is even in x, so the two halves are mirror images. Each station reads four functions of x:
a crowned top;
an underside raised by a cosine saddle over each neck;
a sixth-power upturn at both ends;
a width that tapers toward the ends.

Stations are a uniform run plus one at every leg and bow centre, so the top a pin is measured against, and the saddle apex, are vertices rather than chords. The ends close on a pole a few millimetres past the last ring.

Bows. A 44 mm round hickory rod swept along a U:
Each leg rises straight up through the beam and ends a named height above it (BOW_PROTRUDE).
The bottom is a half-ellipse whose lowest centreline point is one radius off the floor.
A section vertex points straight down, so each bow stands on a vertex at exactly z = 0.
The section frame is fixed to the bow's plane, so there is no twist.
Pins. A forged pin crosses each leg tip, its shank resting PIN_SEAT into the beam's crown. Its head hangs past the beam's edge. Two shank rings sit over the crown, so the seat is measured on vertices where the pin rests.
Staple and ring. A round bar bent into a U across Y has its legs driven STAPLE_BITE up into the beam. The ring is a torus whose hole axis runs along the staple's bar (Y). Its inner edge rests on the bar's top, RING_BITE into it, so the bar passes through the ring's hole and the ring hangs clear of the floor.

Findings the budgets forced#

Pin seat on a span. The pin was first a lathe with rings only at its two ends. No vertex sat over the beam, and the seat audit found nothing to measure. Two shank rings now sit over the crown.
A section vertex on the axis. Ten-segment sections have no vertex straight down. That put the pins' seat at 1.21 mm against a designed 1.50 mm, and the staple's bar 0.3 mm off. Pins and staple are now 12-segment.
Collider. Hulls over thinned vertex grids still came to 744–766 triangles against a 300 ceiling. The hulls now take every eighth beam ring and every fifth bow ring, with every other section vertex, and the compound is 260 triangles.
Bamboo bows (inspection-only). Grain set per face from the path's tangent broke the wood figure at every ring, and the bent bows rendered as bamboo. The bows now take one grain direction, up their legs.

Conventions walked#

Every convention in showcase/README.md, and whether it applies here.

Convention	Applies	How
Deterministic, budgets declared, assertions recompute	yes	no RNG; every value above is read off the mesh
Falsifier fails the budget it targets	yes	table below, proven on all three binaries
Hygiene incl. cross-shell coplanar	yes	exit 15
Named supports	yes	the two bows (`--float-bow`)
Even shaping terms and mirror symmetry	yes	every beam term even in x; mirrored bows asserted (`--skew-bow`)
Plumb and real-world size	yes	the neck opening is the real-world size that matters (`--pinch-bows`)
A joint bites; touching is not joining	yes	legs through the beam (`--short-bows`), staple into it (`--short-staple`)
Hung ring	yes	torus hung on the bar, inner edge on its top (`--clip-ring`)
A ring is threaded across its hole	yes	hole axis along the bar (`--edge-on-ring`)
Carried parts bite their bearers	yes	pins resting into the beam's crown (`--float-pins`)
Rope, masonry, timber boards, roofs, vessels, scatter, paint	no	the piece has none of these
A bent bar is one sweep	yes	each bow and the staple is one sweep
Shading is part of the model	yes	beam and bows smooth (carved, bent); every edge over 40° hard (sawn beam ends, pin heads)
One substance, one slot	yes	oak, hickory, iron
Iron is not chrome	yes	near-black and rust, roughness 0.55–0.85, metallic 0.65
Identical boards read as CG	yes	per-piece `PlankTone`; grain along the beam and up each bow
Edge treatment: no right angles	n/a	lofted and swept, no box edges; not a separate budget
Sort bmesh operator inputs	n/a	no set-fed operator is run
The bake cage is narrower than the nearest neighbour	yes	`CAGE_EXTRUSION` 0.01 m
Level on the stage; stage 60 m	yes	turned about Z only; 60 m floor and wall
Keep a falsifier's envelope still	yes	every falsifier leaves the AABB unchanged

Falsifiers#

Each breaks one pipeline stage so a named budget fails. All eleven were run on 4.5.11, 5.1.2 and 5.2.1 and exited the same declared code on all three.

Flag	Target budget	Breaks	Exit
`--skip-decimate`	LOD1 ratio	drops the DECIMATE modifiers, LOD1 ratio goes to 1.0000	9
`--stray-vert`	mesh hygiene	adds one loose vertex under the beam	15
`--lift-z`	grounded zmin	lifts the whole mesh 50 mm	16
`--float-bow`	named bows	lifts the left bow 8 mm; the right still grounds the AABB	16
`--short-bows`	leg protrusion	stops every leg 10 mm under the beam's top; −2.3 mm at the tip	17
`--short-staple`	staple bite	stops the staple 5 mm under the beam; −2.6 mm	17
`--edge-on-ring`	threaded ring	turns the ring into the staple's plane; cos 0.0000	17
`--float-pins`	pin seat	lifts every pin 5 mm off the beam; −3.5 mm	18
`--clip-ring`	hung ring	lifts the ring 6 mm off its bar; +5.0 mm	18
`--pinch-bows`	neck opening	brings each bow's legs 35 mm in; 196 mm wide	19
`--skew-bow`	mirrored bows	moves the right bow 6 mm along the beam; 6.0 mm	19

Exit codes#

File-local and sequential. 9 is a valid check code. 1 is the FATAL wrapper — a crash, never a named check.

Code	Meaning
0	Success
1	Uncaught exception (FATAL wrapper)
2	argparse / usage
3	Mesh did not build, or has no UV layer
4	Base triangle count outside band
5	Material slots, or a material's face floor
6	UVs outside 0..1
7	UV AABB overlap above tolerance
8	Outer AABB off declared size
9	LOD1 or LOD2 ratio outside band (`--skip-decimate`)
10	Framing gate (`examples/gallery_framing.py`, render path only)
11	Collider triangles above ceiling
12	Normal bake failed or produced no image data
13	glTF export missing or empty
14	`--output` produced no file
15	Mesh hygiene (`--stray-vert`)
16	Grounded zmin, or a bow floating (`--lift-z`, `--float-bow`)
17	Leg protrusion, staple bite or threaded ring (`--short-bows`, `--short-staple`, `--edge-on-ring`)
18	Pin seat or hung ring (`--float-pins`, `--clip-ring`)
19	Neck opening or mirrored bows (`--pinch-bows`, `--skew-bow`)

Run it#

# Budget check, no render. ~2.5 s on 4.5, ~4.6 s on 5.2.
blender --background --python wooden_yoke.py --

# Falsifier: the bows close too tight for a neck. Must exit 19.
blender --background --python wooden_yoke.py -- --pinch-bows

# Falsifier: the ring turns into the staple's plane. Must exit 17.
blender --background --python wooden_yoke.py -- --edge-on-ring

# Render the gallery still (EEVEE; --engine cycles on a GPU-less host).
blender --background --python wooden_yoke.py -- --output wooden_yoke.webp

Smoke runs the check-only path. It does not pass --output or any falsifier.

Cross-version measurements#

Value	4.5.11	5.1.2	5.2.1
Base triangles	5288	5288	5288
LOD1 / LOD2 tris	2644 / 1162	same	same
Face counts (oak / hickory / iron)	1088 / 720 / 936	same	same
Outer AABB	1.4240 × 0.1400 × 0.6400	same	same
Collider tris	260	260	260
Neck opening	266.0 × 370.9 mm	same	same
glTF bytes	159764	159764	159760

Source

showcase/wooden-yoke/wooden_yoke.py 1265 lines · View on GitHub →

"""Game-ready ox yoke — a showcase piece, not an example.

Asserts budget conformance of a procedural double ox yoke: a carved oak
beam with two neck saddles and upturned ends, two bent-hickory oxbows
whose legs pass up through the beam and are pinned above it, and a forged
staple under the centre carrying a hung iron ring. It stands on the
bottoms of its two bows. Carried through UVs, three materials (oak,
hickory, iron), a high-to-low normal bake, an LOD chain, a compound
convex collider, and a Unity glTF export.

The budget that matters here is the one a yoke fails invisibly: each bow
and its saddle must close round an ox's neck. A bow bent too tight still
stands on the floor, still passes up through the beam, still takes its
pins and still fits the bounding box; only the opening knows. The piece
measures each opening's width between the bow's legs and its height from
the bow's inner bottom to the saddle, off the finished mesh.

Budgets are declared below and recomputed from the generated result.
They are not API-contract witnesses. Each falsifier violates one named
budget: ``--skip-decimate`` the LOD-ratio band, ``--stray-vert`` mesh
hygiene, ``--lift-z`` grounded zmin, ``--float-bow`` the named bows,
``--short-bows`` the leg protrusion, ``--short-staple`` the staple bite,
``--edge-on-ring`` the threaded ring, ``--float-pins`` the pin seat,
``--clip-ring`` the hung ring, ``--pinch-bows`` the neck opening,
``--skew-bow`` the mirrored bows.

No randomness. DECIMATE COLLAPSE triangle counts are not byte-identical
across Blender versions — the LOD gate is a ratio band.

    blender --background --python wooden_yoke.py --
    blender --background --python wooden_yoke.py -- --pinch-bows
    blender --background --python wooden_yoke.py -- --output wooden_yoke.png
"""
import argparse
import math
import os
import sys
import tempfile
import traceback

import bmesh
import bpy
from mathutils import Matrix, Vector
from mathutils.kdtree import KDTree

_REPO = os.path.abspath(
    os.path.join(os.path.dirname(os.path.abspath(__file__)), os.pardir, os.pardir)
)
sys.path.insert(0, os.path.join(_REPO, "examples"))
sys.dont_write_bytecode = True
import gallery_framing  # noqa: E402

# The beam, lofted along X. Every shaping term is even in x, so the two
# halves of the yoke are mirror images and the two bows see one beam.
HALF_L = 0.700
BOTTOM_Z = 0.360
TOP_Z = 0.500
CROWN = 0.050
UPTURN = 0.140
UPTURN_POW = 6
BEAM_W = 0.130
BEAM_W_TAPER = 0.030
SECTION_N = 3.0
BEAM_SEG = 16
BEAM_STATIONS = 30
END_REACH = 0.012
SADDLE_DEPTH = 0.050
SADDLE_HALF = 0.160

# Bows: a round hickory rod bent into a U, legs straight up through the
# beam, bottom a half-ellipse whose lowest point stands on the floor.
BOW_X = 0.400
BOW_A = 0.155
PINCH_A = 0.120
BOW_R = 0.022
BOW_SEG = 12
BOW_ARC_Z = 0.200
BOW_ARC_STEPS = 16
BOW_PROTRUDE = 0.045
SHORT_BOW = -0.010
FLOAT_BOW = 0.008
SKEW_BOW = 0.006

# Iron: a pin across each leg tip, resting on the beam; a staple under the
# centre; a ring hung on the staple's bar.
PIN_R = 0.006
PIN_L = 0.140
PIN_SEAT = 0.0015
FLOAT_PIN = 0.005
STAPLE_R = 0.007
STAPLE_C = 0.030
STAPLE_DROP = 0.035
STAPLE_BITE = 0.015
SHORT_STAPLE = -0.005
RING_R = 0.050
RING_T = 0.008
RING_BITE = 0.001
RING_SEG = 24
RING_TUBE_SEG = 10
CLIP_RING = 0.006

BBOX_TOL = 0.020
OUTER_SIZE = (1.424, 0.140, 0.640)

BASE_TRIS_MIN = 4800
BASE_TRIS_MAX = 5800
LOD1_RATIO_MIN = 0.32
LOD1_RATIO_MAX = 0.62
LOD2_RATIO_MIN = 0.10
LOD2_RATIO_MAX = 0.35
LOD1_TARGET = 0.50
LOD2_TARGET = 0.22
MATERIAL_COUNT = 3
FACE_FLOORS = {0: 950, 1: 650, 2: 750}
UV_EPS = 1e-4
UV_OVERLAP_MAX = 1e-5
COLLIDER_TRIS_MAX = 300
BAKE_RES = 512
CAGE_EXTRUSION = 0.01
ZMIN_EPS = 1e-4
DOUBLES_EPS = 1e-5
AREA_EPS = 1e-10
COPLANAR_NORMAL_EPS = 1e-4
COPLANAR_PLANE_EPS = 1e-4
COPLANAR_CENTRE_MAX = 0.05
LIFT_Z = 0.05
BOW_Z_MAX = 1e-4
PROTRUDE_MIN = 0.025
PROTRUDE_MAX = 0.070
STAPLE_BITE_MIN = 0.008
STAPLE_BITE_MAX = 0.030
THREAD_COS_MIN = math.cos(math.radians(20.0))
PIN_SEAT_MIN = 0.0005
PIN_SEAT_MAX = 0.0030
RING_GAP_MIN = -0.003
RING_GAP_MAX = 0.0005
NECK_W_MIN = 0.240
NECK_W_MAX = 0.300
NECK_H_MIN = 0.300
NECK_H_MAX = 0.400
MIRROR_EPS = 1e-4

OAK_IDX = 0
HICKORY_IDX = 1
IRON_IDX = 2


def eevee_engine_id():
    """EEVEE id: 'BLENDER_EEVEE' on 5.0+, 'BLENDER_EEVEE_NEXT' on 4.2-4.5."""
    return "BLENDER_EEVEE" if bpy.app.version >= (5, 0, 0) else "BLENDER_EEVEE_NEXT"


def fail(msg, code):
    print(f"FAIL[{code}]: {msg}", file=sys.stderr)
    return code


def triangle_count(mesh):
    mesh.calc_loop_triangles()
    return len(mesh.loop_triangles)


def evaluated_triangle_count(obj):
    deps = bpy.context.evaluated_depsgraph_get()
    ev = obj.evaluated_get(deps)
    mesh = ev.to_mesh()
    try:
        mesh.calc_loop_triangles()
        return len(mesh.loop_triangles)
    finally:
        ev.to_mesh_clear()


# --- beam shape -------------------------------------------------------------


def upturn(x):
    return UPTURN * (x / HALF_L) ** UPTURN_POW


def saddle(x):
    """Raise of the beam's underside over each neck: a cosine bump, even in x."""
    d = abs(abs(x) - BOW_X)
    if d >= SADDLE_HALF:
        return 0.0
    return SADDLE_DEPTH * 0.5 * (1.0 + math.cos(math.pi * d / SADDLE_HALF))


def beam_top(x):
    return TOP_Z + CROWN * math.cos(math.pi * x / (2.0 * HALF_L)) ** 2 + upturn(x)


def beam_bottom(x):
    return BOTTOM_Z + saddle(x) + upturn(x)


def beam_width(x):
    return BEAM_W - BEAM_W_TAPER * (x / HALF_L) ** 2


def beam_stations(leg_xs, bow_xs):
    """Stations for x >= 0, mirrored: a uniform run plus one at every leg and neck.

    A station on each leg and bow centre puts a beam ring exactly where a pin rests, so
    the top the pin is measured against is a vertex, not a chord.
    """
    pos = {round(HALF_L * k / BEAM_STATIONS, 6) for k in range(BEAM_STATIONS + 1)}
    pos |= {round(abs(x), 6) for x in list(leg_xs) + list(bow_xs)}
    pos = sorted(pos)
    return sorted({-x for x in pos} | set(pos))


def section(x, k):
    """Superellipse section vertex ``k`` of BEAM_SEG at station ``x``: (y, z)."""
    phi = 2.0 * math.pi * k / BEAM_SEG
    c, s = math.cos(phi), math.sin(phi)
    e = 2.0 / SECTION_N
    zc = (beam_top(x) + beam_bottom(x)) * 0.5
    hh = (beam_top(x) - beam_bottom(x)) * 0.5
    y = beam_width(x) * 0.5 * math.copysign(abs(c) ** e, c)
    z = zc + hh * math.copysign(abs(s) ** e, s)
    return y, z


# --- construction -----------------------------------------------------------


def new_island(ctx):
    ctx["next"] += 1
    return ctx["next"]


def stamp(ctx, face, island, uvmap, grain):
    face[ctx["isl"]] = island
    for loop in face.loops:
        loop[ctx["uv"]].uv = uvmap[loop.vert]
    face[ctx["gx"]], face[ctx["gy"]], face[ctx["gz"]] = grain


def tube(bm, rings, closed_ends, mat_idx, ctx, grains):
    """Quads between consecutive rings, fans to the two end poles."""
    island = new_island(ctx)
    n = len(rings[0])
    arc = [0.0]
    for a, b in zip(rings, rings[1:]):
        ca = sum((v.co for v in a), Vector()) / n
        cb = sum((v.co for v in b), Vector()) / n
        arc.append(arc[-1] + (cb - ca).length)
    for k in range(len(rings) - 1):
        a, b = rings[k], rings[k + 1]
        for i in range(n):
            j = (i + 1) % n
            f = bm.faces.new((a[i], a[j], b[j], b[i]))
            f.material_index = mat_idx
            stamp(ctx, f, island, {a[i]: (arc[k], i / n), a[j]: (arc[k], (i + 1) / n),
                                   b[j]: (arc[k + 1], (i + 1) / n), b[i]: (arc[k + 1], i / n)},
                  grains[k])
    for pole, ring, s, g, sign in ((closed_ends[0], rings[0], arc[0], grains[0], -1.0),
                                   (closed_ends[1], rings[-1], arc[-1], grains[-1], 1.0)):
        for i in range(n):
            j = (i + 1) % n
            vs = (pole, ring[i], ring[j]) if sign < 0 else (pole, ring[j], ring[i])
            f = bm.faces.new(vs)
            f.material_index = mat_idx
            stamp(ctx, f, island, {pole: (s + sign * 0.01, (i + 0.5) / n),
                                   ring[i]: (s, i / n), ring[j]: (s, (i + 1) / n)}, g)


def add_beam(bm, ctx, leg_xs, bow_xs):
    xs = beam_stations(leg_xs, bow_xs)
    rings = []
    for x in xs:
        rings.append([bm.verts.new((x, *section(x, k))) for k in range(BEAM_SEG)])
    z0 = (beam_top(xs[0]) + beam_bottom(xs[0])) * 0.5
    z1 = (beam_top(xs[-1]) + beam_bottom(xs[-1])) * 0.5
    poles = (bm.verts.new((xs[0] - END_REACH, 0.0, z0)), bm.verts.new((xs[-1] + END_REACH, 0.0, z1)))
    tube(bm, rings, poles, OAK_IDX, ctx, [(1.0, 0.0, 0.0)] * len(rings))


def sweep(bm, pts, radius, seg, side, mat_idx, ctx, cone=0.35, grain=None):
    """Round section swept along ``pts`` with its frame fixed to the path's plane.

    ``side`` is the plane's normal; the section's vertex 3*seg/4 points
    down the path's ``up`` (t x side) negative, so a path's lowest point
    puts a vertex exactly ``radius`` below it. Ends close in blunt cones.

    ``grain`` fixes one grain direction for the whole shell. The shader
    stretches its noise along the face's direction, so a per-ring tangent
    breaks the figure at every ring: the bent bows rendered as bamboo.
    """
    m = len(pts)
    tans = [(pts[min(i + 1, m - 1)] - pts[max(i - 1, 0)]).normalized() for i in range(m)]
    rings = []
    for p, t in zip(pts, tans):
        s = (side - t * side.dot(t)).normalized()
        up = t.cross(s)
        rings.append([bm.verts.new(p + s * (radius * math.cos(2 * math.pi * k / seg))
                                   + up * (radius * math.sin(2 * math.pi * k / seg)))
                      for k in range(seg)])
    poles = (bm.verts.new(pts[0] - tans[0] * (cone * radius)),
             bm.verts.new(pts[-1] + tans[-1] * (cone * radius)))
    grains = [grain] * m if grain is not None else [tuple(t) for t in tans]
    tube(bm, rings, poles, mat_idx, ctx, grains)


def bow_path(cx, a, tip_l, tip_r, lift=0.0):
    """U centreline: left leg down, half-ellipse under the neck, right leg up."""
    pts = []
    zc = BOW_ARC_Z + lift
    b = zc - (BOW_R + lift)
    for k in range(6):
        pts.append(Vector((cx - a, 0.0, tip_l + (zc - tip_l) * k / 6)))
    for k in range(BOW_ARC_STEPS + 1):
        th = math.pi + math.pi * k / BOW_ARC_STEPS
        pts.append(Vector((cx + a * math.cos(th), 0.0, zc + b * math.sin(th))))
    for k in range(1, 7):
        pts.append(Vector((cx + a, 0.0, zc + (tip_r - zc) * k / 6)))
    return pts


def lathe_y(bm, profile, n, mat_idx, ctx, origin):
    """Revolve an (r, t) profile about an axis along +Y from ``origin``."""
    xf = Matrix.Translation(origin) @ Matrix.Rotation(-math.pi / 2.0, 4, "X")
    rings, poles = [], []
    for p in profile:
        if p.x <= 0.0:
            poles.append(bm.verts.new(xf @ Vector((0.0, 0.0, p.y))))
        else:
            rings.append([bm.verts.new(xf @ Vector((p.x * math.cos(2 * math.pi * k / n),
                                                     p.x * math.sin(2 * math.pi * k / n), p.y)))
                          for k in range(n)])
    tube(bm, rings, poles, mat_idx, ctx, [(0.0, 1.0, 0.0)] * len(rings))


def pin_profile():
    """A forged pin: shank with a flat head at the far end, from its near end."""
    h = PIN_L
    # Two shank rings over the beam's crown, so the seat is measured on
    # vertices where the pin rests rather than on a span between its ends.
    rings = [(PIN_R * 0.7, 0.0), (PIN_R, 0.004), (PIN_R, h * 0.5 - 0.02), (PIN_R, h * 0.5 + 0.02),
             (PIN_R, h - 0.010), (PIN_R * 1.7, h - 0.008),
             (PIN_R * 1.7, h - 0.002), (PIN_R * 1.2, h)]
    return [Vector((0.0, 0.0))] + [Vector(r) for r in rings] + [Vector((0.0, h))]


def add_ring(bm, centre, normal_axis, ctx):
    """Torus of RING_R by RING_T in the plane whose normal is ``normal_axis``."""
    n = Vector(normal_axis)
    u = Vector((0.0, 0.0, 1.0)) if abs(n.z) < 0.9 else Vector((1.0, 0.0, 0.0))
    v = n.cross(u)
    rings = []
    for i in range(RING_SEG):
        a = 2.0 * math.pi * i / RING_SEG
        radial = u * math.cos(a) + v * math.sin(a)
        c = centre + radial * RING_R
        rings.append([bm.verts.new(c + radial * (RING_T * math.cos(2 * math.pi * k / RING_TUBE_SEG))
                                   + n * (RING_T * math.sin(2 * math.pi * k / RING_TUBE_SEG)))
                      for k in range(RING_TUBE_SEG)])
    island = new_island(ctx)
    for i in range(RING_SEG):
        a, b = rings[i], rings[(i + 1) % RING_SEG]
        tang = tuple((b[0].co - a[0].co).normalized())
        for k in range(RING_TUBE_SEG):
            j = (k + 1) % RING_TUBE_SEG
            f = bm.faces.new((a[k], a[j], b[j], b[k]))
            f.material_index = IRON_IDX
            stamp(ctx, f, island, {a[k]: (i / RING_SEG, k / RING_TUBE_SEG),
                                   a[j]: (i / RING_SEG, (k + 1) / RING_TUBE_SEG),
                                   b[j]: ((i + 1) / RING_SEG, (k + 1) / RING_TUBE_SEG),
                                   b[k]: ((i + 1) / RING_SEG, k / RING_TUBE_SEG)}, tang)


def build_yoke_mesh(
    name,
    stray_vert=False,
    float_bow=False,
    short_bows=False,
    short_staple=False,
    edge_on_ring=False,
    float_pins=False,
    clip_ring=False,
    pinch_bows=False,
    skew_bow=False,
):
    a = PINCH_A if pinch_bows else BOW_A
    bows = []
    for side in (-1.0, 1.0):
        cx = side * BOW_X + (SKEW_BOW if (skew_bow and side > 0) else 0.0)
        bows.append((cx, side))
    leg_xs = [cx + d for cx, _s in bows for d in (-a, a)]
    bm = bmesh.new()
    try:
        ctx = {"uv": bm.loops.layers.uv.new("UVMap"),
               "isl": bm.faces.layers.int.new("UVIsland"),
               "gx": bm.faces.layers.float.new("gx"),
               "gy": bm.faces.layers.float.new("gy"),
               "gz": bm.faces.layers.float.new("gz"), "next": 0}
        add_beam(bm, ctx, leg_xs, [cx for cx, _s in bows])
        for cx, side in bows:
            lift = FLOAT_BOW if (float_bow and side < 0) else 0.0
            protrude = SHORT_BOW if short_bows else BOW_PROTRUDE
            tip_l = beam_top(cx - a) + protrude
            tip_r = beam_top(cx + a) + protrude
            sweep(bm, bow_path(cx, a, tip_l, tip_r, lift=lift), BOW_R, BOW_SEG,
                  Vector((0.0, 1.0, 0.0)), HICKORY_IDX, ctx, grain=(0.0, 0.0, 1.0))
            # Pins across each leg tip, resting on the beam's top at that leg.
            for lx in (cx - a, cx + a):
                pz = beam_top(lx) + PIN_R - PIN_SEAT + (FLOAT_PIN if float_pins else 0.0)
                lathe_y(bm, pin_profile(), 12, IRON_IDX, ctx,
                        Vector((lx, -PIN_L * 0.5, pz)))
        # Staple under the centre: a round bar bent into a U across Y, its
        # legs driven up into the beam.
        bb = beam_bottom(0.0)
        top = bb + (SHORT_STAPLE if short_staple else STAPLE_BITE)
        bar_z = bb - STAPLE_DROP
        pts = [Vector((0.0, -STAPLE_C, top + (bar_z - top) * k / 4)) for k in range(4)]
        for k in range(13):
            th = math.pi + math.pi * k / 12
            pts.append(Vector((0.0, STAPLE_C * math.cos(th), bar_z + STAPLE_C * math.sin(th))))
        pts += [Vector((0.0, STAPLE_C, bar_z + (top - bar_z) * k / 4)) for k in range(1, 5)]
        sweep(bm, pts, STAPLE_R, 12, Vector((1.0, 0.0, 0.0)), IRON_IDX, ctx)
        # The ring hangs on the staple's bar: its inner edge rests on the
        # bar's top, and its hole runs along the bar (Y).
        low = bar_z - STAPLE_C
        rc = Vector((0.0, 0.0, low + STAPLE_R + RING_T - RING_R - RING_BITE
                     + (CLIP_RING if clip_ring else 0.0)))
        add_ring(bm, rc, (1.0, 0.0, 0.0) if edge_on_ring else (0.0, 1.0, 0.0), ctx)
        if stray_vert:
            bm.verts.new((0.0, 0.0, 0.1))
        bmesh.ops.recalc_face_normals(bm, faces=list(bm.faces))
        for f in bm.faces:
            f.smooth = True
        for e in bm.edges:
            if len(e.link_faces) == 2 and e.calc_face_angle(0.0) > math.radians(40.0):
                e.smooth = False
        pack_uvs(bm, ctx)
        bm.faces.layers.int.remove(ctx["isl"])
        me = bpy.data.meshes.new(name)
        bm.to_mesh(me)
        me.update()
    finally:
        bm.free()
    paint_pieces(me)
    obj = bpy.data.objects.new(name, me)
    bpy.context.collection.objects.link(obj)
    return obj


def pack_uvs(bm, ctx, margin=0.06):
    """One grid cell per UV island (every face here belongs to a strip island)."""
    uv, isl = ctx["uv"], ctx["isl"]
    islands, order = {}, []
    for face in bm.faces:
        key = face[isl]
        if key not in islands:
            islands[key] = []
            order.append(key)
        islands[key].append(face)
    cols = max(1, math.ceil(math.sqrt(len(order))))
    rows = max(1, math.ceil(len(order) / cols))
    cw, ch = 1.0 / cols, 1.0 / rows
    pu, pv = margin * cw * 0.5, margin * ch * 0.5
    for idx, key in enumerate(order):
        faces = islands[key]
        allc = [tuple(loop[uv].uv) for f in faces for loop in f.loops]
        minx, maxx = min(c[0] for c in allc), max(c[0] for c in allc)
        miny, maxy = min(c[1] for c in allc), max(c[1] for c in allc)
        dx, dy = max(maxx - minx, 1e-8), max(maxy - miny, 1e-8)
        ou, ov = (idx % cols) * cw + pu, (idx // cols) * ch + pv
        for face in faces:
            for loop in face.loops:
                x, y = loop[uv].uv
                loop[uv].uv = (ou + (x - minx) / dx * (cw - 2 * pu),
                               ov + (y - miny) / dy * (ch - 2 * pv))


def paint_pieces(me):
    """``GrainDir`` from the per-face path tangent, ``PlankTone`` per shell."""
    npoly = len(me.polygons)
    comps = []
    for nm in ("gx", "gy", "gz"):
        vals = [0.0] * npoly
        me.attributes[nm].data.foreach_get("value", vals)
        comps.append(vals)
        me.attributes.remove(me.attributes[nm])
    grain = [c for i in range(npoly) for c in (comps[0][i], comps[1][i], comps[2][i])]
    tone = [0.5] * npoly
    vf = [[] for _ in range(len(me.vertices))]
    for p in me.polygons:
        for i in p.vertices:
            vf[i].append(p.index)
    for k, g in enumerate(shells(me)):
        t = 0.5 + 0.3 * (((k * 0.6180339887 + 0.3) % 1.0) - 0.5)
        for fi in {fi for i in g for fi in vf[i]}:
            tone[fi] = t
    a = me.attributes.new("PlankTone", "FLOAT", "FACE")
    a.data.foreach_set("value", tone)
    b = me.attributes.new("GrainDir", "FLOAT_VECTOR", "FACE")
    b.data.foreach_set("vector", grain)


# --- surface ----------------------------------------------------------------


def _sock(sockets, identifier):
    return next(sk for sk in sockets if sk.identifier == identifier)


def wood_material(name, dark, light, rough=(0.72, 0.52)):
    """Timber whose grain runs along ``GrainDir`` and whose tone varies by piece."""
    mat = bpy.data.materials.new(name)
    mat.use_nodes = True
    nt = mat.node_tree
    bsdf = nt.nodes["Principled BSDF"]
    coord = nt.nodes.new("ShaderNodeTexCoord")
    gdir = nt.nodes.new("ShaderNodeAttribute")
    gdir.attribute_name = "GrainDir"
    tone = nt.nodes.new("ShaderNodeAttribute")
    tone.attribute_name = "PlankTone"
    dot = nt.nodes.new("ShaderNodeVectorMath")
    dot.operation = "DOT_PRODUCT"
    nt.links.new(coord.outputs["Object"], dot.inputs[0])
    nt.links.new(gdir.outputs["Vector"], dot.inputs[1])
    squash = nt.nodes.new("ShaderNodeMath")
    squash.operation = "MULTIPLY"
    squash.inputs[1].default_value = 0.94
    nt.links.new(dot.outputs["Value"], squash.inputs[0])
    along = nt.nodes.new("ShaderNodeVectorMath")
    along.operation = "SCALE"
    nt.links.new(gdir.outputs["Vector"], along.inputs[0])
    nt.links.new(squash.outputs["Value"], along.inputs["Scale"])
    grain_co = nt.nodes.new("ShaderNodeVectorMath")
    grain_co.operation = "SUBTRACT"
    nt.links.new(coord.outputs["Object"], grain_co.inputs[0])
    nt.links.new(along.outputs["Vector"], grain_co.inputs[1])
    shift = nt.nodes.new("ShaderNodeVectorMath")
    shift.operation = "ADD"
    nt.links.new(grain_co.outputs["Vector"], shift.inputs[0])
    nt.links.new(tone.outputs["Fac"], shift.inputs[1])
    noise = nt.nodes.new("ShaderNodeTexNoise")
    noise.inputs["Scale"].default_value = 30.0
    noise.inputs["Detail"].default_value = 6.0
    noise.inputs["Roughness"].default_value = 0.62
    nt.links.new(shift.outputs["Vector"], noise.inputs["Vector"])
    ramp = nt.nodes.new("ShaderNodeValToRGB")
    ramp.color_ramp.elements[0].position = 0.30
    ramp.color_ramp.elements[0].color = (*dark, 1.0)
    ramp.color_ramp.elements[1].position = 0.72
    ramp.color_ramp.elements[1].color = (*light, 1.0)
    nt.links.new(noise.outputs["Fac"], ramp.inputs["Fac"])
    gain = nt.nodes.new("ShaderNodeMath")
    gain.operation = "MULTIPLY_ADD"
    gain.inputs[1].default_value = 1.0
    gain.inputs[2].default_value = 0.50
    nt.links.new(tone.outputs["Fac"], gain.inputs[0])
    mix = nt.nodes.new("ShaderNodeMix")
    mix.data_type = "RGBA"
    mix.blend_type = "MULTIPLY"
    _sock(mix.inputs, "Factor_Float").default_value = 1.0
    nt.links.new(ramp.outputs["Color"], _sock(mix.inputs, "A_Color"))
    nt.links.new(gain.outputs["Value"], _sock(mix.inputs, "B_Color"))
    nt.links.new(_sock(mix.outputs, "Result_Color"), bsdf.inputs["Base Color"])
    rmap = nt.nodes.new("ShaderNodeMapRange")
    rmap.inputs["To Min"].default_value = rough[0]
    rmap.inputs["To Max"].default_value = rough[1]
    nt.links.new(noise.outputs["Fac"], rmap.inputs["Value"])
    nt.links.new(rmap.outputs["Result"], bsdf.inputs["Roughness"])
    return mat


def iron_material(name):
    """Forged iron: near-black, rough, rusted in patches. Not chrome."""
    mat = bpy.data.materials.new(name)
    mat.use_nodes = True
    nt = mat.node_tree
    bsdf = nt.nodes["Principled BSDF"]
    tc = nt.nodes.new("ShaderNodeTexCoord")
    noise = nt.nodes.new("ShaderNodeTexNoise")
    noise.inputs["Scale"].default_value = 40.0
    noise.inputs["Detail"].default_value = 8.0
    nt.links.new(tc.outputs["Object"], noise.inputs["Vector"])
    ramp = nt.nodes.new("ShaderNodeValToRGB")
    ramp.color_ramp.elements[0].position = 0.45
    ramp.color_ramp.elements[0].color = (0.035, 0.033, 0.031, 1.0)
    ramp.color_ramp.elements[1].position = 0.78
    ramp.color_ramp.elements[1].color = (0.20, 0.085, 0.035, 1.0)
    nt.links.new(noise.outputs["Fac"], ramp.inputs["Fac"])
    nt.links.new(ramp.outputs["Color"], bsdf.inputs["Base Color"])
    bsdf.inputs["Metallic"].default_value = 0.65
    rough = nt.nodes.new("ShaderNodeMapRange")
    rough.inputs["To Min"].default_value = 0.55
    rough.inputs["To Max"].default_value = 0.85
    nt.links.new(noise.outputs["Fac"], rough.inputs["Value"])
    nt.links.new(rough.outputs["Result"], bsdf.inputs["Roughness"])
    return mat


def yoke_materials():
    return (
        wood_material("YokeOak", (0.075, 0.040, 0.018), (0.25, 0.14, 0.065)),
        wood_material("YokeHickory", (0.13, 0.075, 0.035), (0.36, 0.22, 0.11), rough=(0.66, 0.46)),
        iron_material("YokeIron"),
    )


def assign_slots(obj, mats):
    slots = obj.data.materials
    for i, mat in enumerate(mats):
        if i < len(slots):
            slots[i] = mat
        else:
            slots.append(mat)


# --- measurement ------------------------------------------------------------


def world_bbox(obj):
    corners = [obj.matrix_world @ Vector(c) for c in obj.bound_box]
    xs, ys, zs = [c.x for c in corners], [c.y for c in corners], [c.z for c in corners]
    return (min(xs), min(ys), min(zs), max(xs), max(ys), max(zs))


def uv_stats(mesh):
    uv = mesh.uv_layers.active
    if uv is None:
        return 0.0, 0.0, 1.0, 1.0, 0.0, 0
    data = uv.data
    us = [loop.uv[0] for loop in data]
    vs = [loop.uv[1] for loop in data]
    aabbs = []
    for poly in mesh.polygons:
        pu = [data[i].uv[0] for i in poly.loop_indices]
        pv = [data[i].uv[1] for i in poly.loop_indices]
        aabbs.append((min(pu), min(pv), max(pu), max(pv)))
    span = max(1e-6, max(a[2] - a[0] for a in aabbs), max(a[3] - a[1] for a in aabbs))
    buckets = {}
    for i, a in enumerate(aabbs):
        for c in range(int(a[0] // span), int(a[2] // span) + 1):
            for r in range(int(a[1] // span), int(a[3] // span) + 1):
                buckets.setdefault((c, r), []).append(i)
    overlap = 0.0
    seen = set()
    for members in buckets.values():
        for ii in range(len(members)):
            for jj in range(ii + 1, len(members)):
                i, j = members[ii], members[jj]
                key = (i, j) if i < j else (j, i)
                if key in seen:
                    continue
                seen.add(key)
                a, b = aabbs[i], aabbs[j]
                overlap += max(0.0, min(a[2], b[2]) - max(a[0], b[0])) * max(
                    0.0, min(a[3], b[3]) - max(a[1], b[1]))
    return min(us), min(vs), max(us), max(vs), overlap, len(aabbs)


def face_area(me, poly):
    idxs = poly.vertices
    v0 = me.vertices[idxs[0]].co
    area = 0.0
    for i in range(1, len(idxs) - 1):
        area += (me.vertices[idxs[i]].co - v0).cross(me.vertices[idxs[i + 1]].co - v0).length * 0.5
    return area


def hygiene_audit(me):
    ngons = sum(1 for p in me.polygons if len(p.vertices) > 4)
    zero_area = sum(1 for p in me.polygons if face_area(me, p) <= AREA_EPS)
    bm = bmesh.new()
    try:
        bm.from_mesh(me)
        loose_v = sum(1 for v in bm.verts if len(v.link_edges) == 0)
        loose_e = sum(1 for e in bm.edges if len(e.link_faces) == 0)
        nonman = sum(1 for e in bm.edges if not e.is_manifold)
        ret = bmesh.ops.find_doubles(bm, verts=list(bm.verts), dist=DOUBLES_EPS)
        doubles = len(ret.get("targetmap") or {})
    finally:
        bm.free()
    return {"ngons": ngons, "loose_v": loose_v, "loose_e": loose_e,
            "nonman": nonman, "zero_area": zero_area, "doubles": doubles}


def shells(me):
    neighbors = [[] for _ in range(len(me.vertices))]
    for edge in me.edges:
        a, b = edge.vertices
        neighbors[a].append(b)
        neighbors[b].append(a)
    seen = [False] * len(me.vertices)
    groups = []
    for start in range(len(me.vertices)):
        if seen[start]:
            continue
        seen[start] = True
        stack = [start]
        group = []
        while stack:
            cur = stack.pop()
            group.append(cur)
            for nxt in neighbors[cur]:
                if not seen[nxt]:
                    seen[nxt] = True
                    stack.append(nxt)
        groups.append(group)
    return groups


def zfight_pairs(me):
    """Coplanar face pairs from *different shells* (copied from showcase/grindstone)."""
    owner = {}
    for si, g in enumerate(shells(me)):
        for vi in g:
            owner[vi] = si
    faces = [(p.normal.copy(), p.center.copy(), owner.get(p.vertices[0], -1))
             for p in me.polygons]
    kd = KDTree(len(faces))
    for i, (_n, c, _s) in enumerate(faces):
        kd.insert(c, i)
    kd.balance()
    hits = 0
    for i, (ni, ci, si) in enumerate(faces):
        for _co, j, _d in kd.find_range(ci, COPLANAR_CENTRE_MAX):
            if j <= i:
                continue
            nj, cj, sj = faces[j]
            if si == sj:
                continue
            if abs(abs(ni.dot(nj)) - 1.0) > COPLANAR_NORMAL_EPS:
                continue
            if abs(ni.dot(cj - ci)) > COPLANAR_PLANE_EPS:
                continue
            hits += 1
    return hits


def classify(me):
    mats = {}
    for p in me.polygons:
        for i in p.vertices:
            mats.setdefault(i, p.material_index)
    out = {"beam": [], "bow": [], "pin": [], "staple": [], "ring": [], "other": []}
    for g in shells(me):
        pts = [me.vertices[i].co.copy() for i in g]
        lo = Vector((min(p.x for p in pts), min(p.y for p in pts), min(p.z for p in pts)))
        hi = Vector((max(p.x for p in pts), max(p.y for p in pts), max(p.z for p in pts)))
        rec = {"g": g, "pts": pts, "lo": lo, "hi": hi, "ext": hi - lo,
               "c": sum(pts, Vector()) / len(pts)}
        m = mats.get(g[0], -1)
        if m == OAK_IDX:
            out["beam"].append(rec)
        elif m == HICKORY_IDX:
            out["bow"].append(rec)
        elif m == IRON_IDX:
            e = rec["ext"]
            if e.z < 4.0 * PIN_R and e.y > 0.05:
                out["pin"].append(rec)
            elif min(e.x, e.y) < 2.5 * RING_T + 1e-3 and max(e.x, e.y) > 0.09:
                out["ring"].append(rec)
            else:
                out["staple"].append(rec)
        else:
            out["other"].append(rec)
    return out


def yoke_audit(me):
    parts = classify(me)
    out = {k: len(v) for k, v in parts.items()}
    beam = parts["beam"][0]["pts"] if parts["beam"] else []

    def beam_top_at(x):
        near = [p.z for p in beam if abs(p.x - x) < 0.002]
        return max(near) if near else 99.0

    def beam_bottom_at(x):
        near = [p.z for p in beam if abs(p.x - x) < 0.002]
        return min(near) if near else -99.0

    bows = sorted(parts["bow"], key=lambda r: r["c"].x)
    out["bow_z"] = max((r["lo"].z for r in bows), default=99.0)

    # Legs pass up through the beam and stand proud of it.
    protrude, widths, heights = [], [], []
    for r in bows:
        cx = (r["lo"].x + r["hi"].x) * 0.5
        for sgn in (-1.0, 1.0):
            leg = [p for p in r["pts"] if (p.x - cx) * sgn > 0 and p.z > BOTTOM_Z]
            if not leg:
                continue
            lx = sum(p.x for p in leg) / len(leg)
            protrude.append(max(p.z for p in leg) - beam_top_at(lx))
        # Neck opening: between the legs' inner faces at mid-height, and from
        # the bow's inner bottom up to the saddle.
        mid = [p for p in r["pts"] if BOW_ARC_Z + 0.01 < p.z < BOW_ARC_Z + 0.15]
        left = [p.x for p in mid if p.x < cx]
        right = [p.x for p in mid if p.x > cx]
        if left and right:
            widths.append(min(right) - max(left))
        under = [p.z for p in r["pts"] if abs(p.x - cx) < 0.002 and p.z < BOW_ARC_Z]
        if under:
            heights.append(beam_bottom_at(cx) - max(under))
    out["protrude"] = (min(protrude, default=-99.0), max(protrude, default=99.0))
    out["n_legs"] = len(protrude)
    out["neck_w"] = (min(widths, default=-99.0), max(widths, default=99.0))
    out["neck_h"] = (min(heights, default=-99.0), max(heights, default=99.0))

    # Mirrored bows: one the image of the other through x = 0.
    mirror = 99.0
    if len(bows) == 2:
        a, b = bows
        mirror = max(abs(a["lo"].x + b["hi"].x), abs(a["hi"].x + b["lo"].x),
                     abs(a["lo"].z - b["lo"].z), abs(a["hi"].z - b["hi"].z),
                     abs(a["lo"].y - b["lo"].y), abs(a["hi"].y - b["hi"].y))
    out["mirror"] = mirror

    # Pins rest on the beam's top at their leg.
    # Measured on the shank over the beam; the head hangs past the beam's edge.
    seats = [beam_top_at(r["c"].x) - min(p.z for p in r["pts"] if abs(p.y) < 0.03)
             for r in parts["pin"]]
    out["pin_seat"] = (min(seats, default=-99.0), max(seats, default=99.0))

    # Staple driven into the beam; ring threaded on, and hanging from, its bar.
    out["staple_bite"] = -99.0
    out["thread"] = 0.0
    out["ring_gap"] = 99.0
    if parts["staple"] and parts["ring"]:
        st = parts["staple"][0]
        out["staple_bite"] = st["hi"].z - beam_bottom_at(st["c"].x)
        r_s = st["ext"].x * 0.5
        bar = Vector((st["c"].x, (st["lo"].y + st["hi"].y) * 0.5, st["lo"].z + r_s))
        normal_s = min(range(3), key=lambda k: st["ext"][k])
        bar_dir = Vector((0.0, 0.0, 1.0)).cross(Vector([1.0 if k == normal_s else 0.0
                                                        for k in range(3)])).normalized()
        rg = parts["ring"][0]
        c = rg["c"]
        nk = min(range(3), key=lambda k: rg["ext"][k])
        n = Vector([1.0 if k == nk else 0.0 for k in range(3)])
        radial = [((p - c) - n * (p - c).dot(n)).length for p in rg["pts"]]
        r_in, r_out = min(radial), max(radial)
        d = bar - c
        in_plane = (d - n * d.dot(n)).length
        out["thread"] = abs(n.dot(bar_dir))
        out["ring_gap"] = r_in - (in_plane + r_s)
        out["ring_tube"] = (r_out - r_in) * 0.5
    return out


def make_lod(obj, name, ratio, skip_decimate):
    mesh = obj.data.copy()
    lod = bpy.data.objects.new(name, mesh)
    lod.matrix_world = obj.matrix_world.copy()
    bpy.context.scene.collection.objects.link(lod)
    if not skip_decimate and 0.0 < ratio < 1.0:
        mod = lod.modifiers.new("DecimateBudget", "DECIMATE")
        mod.decimate_type = "COLLAPSE"
        mod.ratio = ratio
    return lod


def ring_sample(me, group, seg, ring_step, vert_step, keep=None):
    """Every ``ring_step``-th ring and ``vert_step``-th vertex of a swept shell.

    Vertices are laid ring after ring in build order, so index order is
    ring order; the two end poles are the last two indices and are kept.
    """
    order = sorted(group)
    body, poles = order[:-2], order[-2:]
    nrings = len(body) // seg
    pts = []
    for r in range(nrings):
        if r % ring_step and r != nrings - 1:
            continue
        ring = [me.vertices[body[r * seg + k]].co.copy() for k in range(0, seg, vert_step)]
        if keep is None or keep(sum(ring, Vector()) / len(ring)):
            pts += ring
    return pts + [me.vertices[i].co.copy() for i in poles if keep is None
                  or keep(me.vertices[i].co)]


def hull_collider(obj, name):
    """Compound collider: one hull for the beam, one per bow leg and one per bow foot.

    A single hull over a bow fills the neck opening, which is exactly the
    space the yoke exists to leave open. Hulls are taken over sampled rings
    of each swept shell, not over every vertex.
    """
    me = obj.data
    parts = classify(me)
    groups = []
    if parts["beam"]:
        groups.append(ring_sample(me, parts["beam"][0]["g"], BEAM_SEG, 8, 2))
    for r in parts["bow"]:
        cx = (r["lo"].x + r["hi"].x) * 0.5
        g = r["g"]
        groups.append(ring_sample(me, g, BOW_SEG, 5, 2,
                                  lambda c, cx=cx: c.x < cx and c.z > BOW_ARC_Z - 0.01))
        groups.append(ring_sample(me, g, BOW_SEG, 5, 2,
                                  lambda c, cx=cx: c.x > cx and c.z > BOW_ARC_Z - 0.01))
        groups.append(ring_sample(me, g, BOW_SEG, 4, 2, lambda c: c.z <= BOW_ARC_Z + 0.01))
    mesh = bpy.data.meshes.new(name)
    bm = bmesh.new()
    try:
        for pts in groups:
            if len(pts) < 4:
                continue
            tmp = bmesh.new()
            try:
                vs = [tmp.verts.new(p) for p in pts]
                bmesh.ops.convex_hull(tmp, input=vs)
                remap = {}
                for f in tmp.faces:
                    for v in f.verts:
                        if v not in remap:
                            remap[v] = bm.verts.new(v.co)
                    bm.faces.new([remap[v] for v in f.verts])
            finally:
                tmp.free()
        bm.to_mesh(mesh)
        mesh.update()
    finally:
        bm.free()
    col = bpy.data.objects.new(name, mesh)
    bpy.context.collection.objects.link(col)
    return col


def setup_bake_image(obj, target_mat, size):
    img = bpy.data.images.new("YokeNrm", size, size, alpha=True, float_buffer=False)
    img.colorspace_settings.name = "Non-Color"
    nodes = target_mat.node_tree.nodes
    tex = nodes.new("ShaderNodeTexImage")
    tex.image = img
    nodes.active = tex
    tex.select = True
    obj.active_material_index = OAK_IDX
    return img, tex


def bake_normal(high, low):
    scene = bpy.context.scene
    scene.render.engine = "CYCLES"
    scene.cycles.device = "CPU"
    scene.cycles.samples = 1
    scene.cycles.use_denoising = False
    for ob in bpy.context.view_layer.objects:
        ob.select_set(False)
    high.select_set(True)
    low.select_set(True)
    bpy.context.view_layer.objects.active = low
    return bpy.ops.object.bake(
        type="NORMAL", use_selected_to_active=True, cage_extrusion=CAGE_EXTRUSION,
        use_cage=False, normal_space="TANGENT", margin=4,
        margin_type="ADJACENT_FACES", use_clear=True, target="IMAGE_TEXTURES",
    )


def export_unity(path, objects):
    for ob in bpy.context.view_layer.objects:
        ob.select_set(False)
    for ob in objects:
        ob.select_set(True)
    bpy.context.view_layer.objects.active = objects[0]
    bpy.ops.export_scene.gltf(
        filepath=path, use_selection=True, export_yup=True, export_apply=True,
        export_draco_mesh_compression_enable=False, export_animations=False,
    )


def check(skip_decimate, lift_z=False, **flags):
    bpy.ops.wm.read_factory_settings(use_empty=True)
    nothing = (None,) * 5
    low = build_yoke_mesh("YokeLow", **flags)
    hi_flags = {k: v for k, v in flags.items() if k != "stray_vert"}
    high = build_yoke_mesh("YokeHigh", **hi_flags)
    mats = yoke_materials()
    assign_slots(low, mats)
    assign_slots(high, mats)
    if lift_z:
        for v in low.data.vertices:
            v.co.z += LIFT_Z
        low.data.update()
        bpy.context.view_layer.update()
    if len(low.data.polygons) < 6 or not low.data.uv_layers:
        return (fail("yoke mesh did not build, or has no UV layer", 3),) + nothing

    base_tris = triangle_count(low.data)
    slots = [s for s in low.data.materials if s is not None]
    nmat, distinct = len(slots), len({id(s) for s in slots})
    idx_counts = {}
    for poly in low.data.polygons:
        idx_counts[poly.material_index] = idx_counts.get(poly.material_index, 0) + 1
    u0, v0, u1, v1, overlap, nfaces = uv_stats(low.data)
    bb = world_bbox(low)
    size_x, size_y, size_z = bb[3] - bb[0], bb[4] - bb[1], bb[5] - bb[2]

    img, tex = setup_bake_image(low, mats[OAK_IDX], BAKE_RES)
    bake_result = bake_normal(high, low)

    lod1 = make_lod(low, "YokeLOD1", LOD1_TARGET, skip_decimate)
    lod2 = make_lod(low, "YokeLOD2", LOD2_TARGET, skip_decimate)
    bpy.context.view_layer.update()
    lod1_tris = evaluated_triangle_count(lod1)
    lod2_tris = evaluated_triangle_count(lod2)
    r1 = lod1_tris / base_tris if base_tris else 0.0
    r2 = lod2_tris / base_tris if base_tris else 0.0

    collider = hull_collider(high, "YokeCollider")
    col_tris = triangle_count(collider.data)

    export_path = os.path.join(tempfile.gettempdir(), f"bdt_yoke_{os.getpid()}.glb")
    if os.path.exists(export_path):
        os.remove(export_path)
    export_unity(export_path, [low, collider])
    export_size = os.path.getsize(export_path) if os.path.isfile(export_path) else 0
    # Blender points TMPDIR at its own temp preference, which on a portable
    # build is the working directory, so the export must not outlive this.
    if os.path.isfile(export_path):
        os.remove(export_path)

    hyg = hygiene_audit(low.data)
    zf = zfight_pairs(low.data)
    ya = yoke_audit(low.data)

    print(f"blender={tuple(bpy.app.version)} skip_decimate={skip_decimate}")
    print(f"measured mat_index_counts={dict(sorted(idx_counts.items()))}")
    print(f"measured base_tris={base_tris} lod1_tris={lod1_tris} "
          f"lod2_tris={lod2_tris} r1={r1:.4f} r2={r2:.4f}")
    print(f"measured nmat={nmat} uv=({u0:.4f},{v0:.4f})-({u1:.4f},{v1:.4f}) "
          f"overlap={overlap:.6f} nfaces={nfaces}")
    print(f"measured bbox=({size_x:.4f},{size_y:.4f},{size_z:.4f}) "
          f"outer={OUTER_SIZE} zmin={bb[2]:.5f}")
    print(f"measured collider_tris={col_tris} bake={bake_result} "
          f"bake_has_data={img.has_data} export_bytes={export_size}")
    print(f"measured hygiene loose_v={hyg['loose_v']} loose_e={hyg['loose_e']} "
          f"nonman={hyg['nonman']} zero_area={hyg['zero_area']} "
          f"doubles={hyg['doubles']} ngons={hyg['ngons']} zfight={zf}")
    print(f"measured parts beam={ya['beam']} bows={ya['bow']} pins={ya['pin']} "
          f"staple={ya['staple']} ring={ya['ring']} other={ya['other']} "
          f"bow_z={ya['bow_z']:.5f} legs={ya['n_legs']}")
    print(f"measured joints protrude=({ya['protrude'][0]:.5f},{ya['protrude'][1]:.5f}) "
          f"staple_bite={ya['staple_bite']:.5f} thread={ya['thread']:.4f}")
    print(f"measured seats pin=({ya['pin_seat'][0]:.5f},{ya['pin_seat'][1]:.5f}) "
          f"ring_gap={ya['ring_gap']:.5f}")
    print(f"measured neck width=({ya['neck_w'][0]:.5f},{ya['neck_w'][1]:.5f}) "
          f"height=({ya['neck_h'][0]:.5f},{ya['neck_h'][1]:.5f}) mirror={ya['mirror']:.6f}")

    if not (BASE_TRIS_MIN <= base_tris <= BASE_TRIS_MAX):
        return (fail(f"base tris {base_tris} not in [{BASE_TRIS_MIN}, {BASE_TRIS_MAX}]", 4),) + nothing
    if nmat != MATERIAL_COUNT or distinct != MATERIAL_COUNT:
        return (fail(f"material slots {nmat} distinct {distinct} != {MATERIAL_COUNT}", 5),) + nothing
    for idx, floor in FACE_FLOORS.items():
        if idx_counts.get(idx, 0) < floor:
            return (fail(f"material {idx} faces {idx_counts.get(idx, 0)} < {floor}", 5),) + nothing
    if u0 < -UV_EPS or v0 < -UV_EPS or u1 > 1.0 + UV_EPS or v1 > 1.0 + UV_EPS:
        return (fail(f"UVs outside 0..1: ({u0:.4f},{v0:.4f})-({u1:.4f},{v1:.4f})", 6),) + nothing
    if overlap > UV_OVERLAP_MAX:
        return (fail(f"UV AABB overlap {overlap:.6f} > {UV_OVERLAP_MAX}", 7),) + nothing
    if (abs(size_x - OUTER_SIZE[0]) > BBOX_TOL or abs(size_y - OUTER_SIZE[1]) > BBOX_TOL
            or abs(size_z - OUTER_SIZE[2]) > BBOX_TOL):
        return (fail(f"bbox ({size_x:.4f},{size_y:.4f},{size_z:.4f}) off outer {OUTER_SIZE}", 8),) + nothing
    if not (LOD1_RATIO_MIN <= r1 <= LOD1_RATIO_MAX):
        return (fail(f"LOD1 ratio {r1:.4f} not in [{LOD1_RATIO_MIN}, {LOD1_RATIO_MAX}] "
                     "(--skip-decimate is the designed fail)", 9),) + nothing
    if not (LOD2_RATIO_MIN <= r2 <= LOD2_RATIO_MAX):
        return (fail(f"LOD2 ratio {r2:.4f} not in [{LOD2_RATIO_MIN}, {LOD2_RATIO_MAX}]", 9),) + nothing
    if col_tris > COLLIDER_TRIS_MAX:
        return (fail(f"collider tris {col_tris} > {COLLIDER_TRIS_MAX}", 11),) + nothing
    if bake_result != {"FINISHED"} or not img.has_data:
        return (fail(f"bake failed result={bake_result} has_data={img.has_data}", 12),) + nothing
    if export_size <= 0:
        return (fail("export file missing or empty", 13),) + nothing
    if (hyg["loose_v"] or hyg["loose_e"] or hyg["nonman"] or hyg["zero_area"]
            or hyg["doubles"] or hyg["ngons"] or zf):
        return (fail(f"hygiene {hyg} zfight={zf} (--stray-vert is the designed fail)", 15),) + nothing
    if abs(bb[2]) > ZMIN_EPS:
        return (fail(f"zmin {bb[2]:.6f} not within {ZMIN_EPS} of 0 "
                     "(--lift-z is the designed fail)", 16),) + nothing
    if ya["bow"] != 2 or ya["bow_z"] > BOW_Z_MAX:
        return (fail(f"bows: {ya['bow']} of 2, worst bow z={ya['bow_z']:.5f} > {BOW_Z_MAX} "
                     "(--float-bow is the designed fail)", 16),) + nothing
    if (ya["n_legs"] != 4 or ya["protrude"][0] < PROTRUDE_MIN
            or ya["protrude"][1] > PROTRUDE_MAX):
        return (fail(f"{ya['n_legs']} of 4 legs, protrusion above the beam {ya['protrude']} "
                     f"outside [{PROTRUDE_MIN}, {PROTRUDE_MAX}] (--short-bows is the designed fail)",
                     17),) + nothing
    if not (STAPLE_BITE_MIN <= ya["staple_bite"] <= STAPLE_BITE_MAX):
        return (fail(f"staple bite {ya['staple_bite']:.5f} outside [{STAPLE_BITE_MIN}, "
                     f"{STAPLE_BITE_MAX}] (--short-staple is the designed fail)", 17),) + nothing
    if ya["ring"] != 1 or ya["thread"] < THREAD_COS_MIN:
        return (fail(f"{ya['ring']} ring, hole axis against the bar {ya['thread']:.4f} < "
                     f"{THREAD_COS_MIN:.4f} (--edge-on-ring is the designed fail)", 17),) + nothing
    if ya["pin"] != 4 or ya["pin_seat"][0] < PIN_SEAT_MIN or ya["pin_seat"][1] > PIN_SEAT_MAX:
        return (fail(f"{ya['pin']} of 4 pins, seat {ya['pin_seat']} outside [{PIN_SEAT_MIN}, "
                     f"{PIN_SEAT_MAX}] (--float-pins is the designed fail)", 18),) + nothing
    if not (RING_GAP_MIN <= ya["ring_gap"] <= RING_GAP_MAX):
        return (fail(f"ring hangs {ya['ring_gap']:.5f} off its bar, outside [{RING_GAP_MIN}, "
                     f"{RING_GAP_MAX}] (--clip-ring is the designed fail)", 18),) + nothing
    if (not (NECK_W_MIN <= ya["neck_w"][0] and ya["neck_w"][1] <= NECK_W_MAX)
            or not (NECK_H_MIN <= ya["neck_h"][0] and ya["neck_h"][1] <= NECK_H_MAX)):
        return (fail(f"neck opening width {ya['neck_w']} (band [{NECK_W_MIN}, {NECK_W_MAX}]), "
                     f"height {ya['neck_h']} (band [{NECK_H_MIN}, {NECK_H_MAX}]) "
                     "(--pinch-bows is the designed fail)", 19),) + nothing
    if ya["mirror"] > MIRROR_EPS:
        return (fail(f"bows not mirrored: {ya['mirror']:.6f} > {MIRROR_EPS} "
                     "(--skew-bow is the designed fail)", 19),) + nothing
    return 0, low, high, mats, tex, collider


def wire_normal(mat, tex):
    nt = mat.node_tree
    nrm = nt.nodes.new("ShaderNodeNormalMap")
    nt.links.new(tex.outputs["Color"], nrm.inputs["Color"])
    nt.links.new(nrm.outputs["Normal"], nt.nodes["Principled BSDF"].inputs["Normal"])


def render_still(low, mats, tex, path, engine):
    scene = bpy.context.scene
    wire_normal(mats[OAK_IDX], tex)
    for ob in list(scene.objects):
        if ob.type == "MESH" and ob != low:
            ob.hide_render = True
            ob.hide_viewport = True
    # Level on the floor: turned about Z only.
    low.rotation_euler.z = math.radians(-22.0)

    floor_me = bpy.data.meshes.new("Floor")
    bm = bmesh.new()
    try:
        bmesh.ops.create_grid(bm, x_segments=1, y_segments=1, size=60.0)
        bm.to_mesh(floor_me)
    finally:
        bm.free()
    fmat = bpy.data.materials.new("Floor")
    fmat.use_nodes = True
    fb = fmat.node_tree.nodes["Principled BSDF"]
    fb.inputs["Base Color"].default_value = (0.03, 0.032, 0.037, 1.0)
    fb.inputs["Roughness"].default_value = 0.7
    floor_me.materials.append(fmat)
    floor = bpy.data.objects.new("Floor", floor_me)
    scene.collection.objects.link(floor)
    wall = bpy.data.objects.new("Wall", floor_me.copy())
    wall.location = (0.0, 8.5, 0.0)
    wall.rotation_euler = (math.radians(90), 0.0, 0.0)
    scene.collection.objects.link(wall)

    world = bpy.data.worlds.new("World")
    world.use_nodes = True
    world.node_tree.nodes["Background"].inputs["Color"].default_value = (0.02, 0.021, 0.025, 1.0)
    scene.world = world

    def light(name, kind, loc, energy, size, col, rot=(0, 0, 0)):
        ld = bpy.data.lights.new(name, kind)
        ld.energy = energy
        if kind == "AREA":
            ld.size = size
        else:
            ld.shadow_soft_size = size
        ld.color = col
        ob = bpy.data.objects.new(name, ld)
        ob.location = loc
        ob.rotation_euler = tuple(math.radians(a) for a in rot)
        scene.collection.objects.link(ob)

    light("Key", "AREA", (-2.4, -3.2, 3.0), 360.0, 3.0, (1.0, 0.95, 0.88), (50, 0, -35))
    light("Fill", "AREA", (3.2, -2.6, 1.4), 60.0, 5.0, (0.74, 0.84, 1.0), (70, 0, 50))
    light("Rim", "AREA", (-1.6, 2.6, 2.2), 220.0, 3.0, (0.62, 0.78, 1.0), (-55, 0, 200))
    ld = bpy.data.lights.new("Wedge", "SPOT")
    ld.energy, ld.color = 220.0, (1.0, 0.66, 0.34)
    ld.spot_size, ld.spot_blend, ld.shadow_soft_size = math.radians(50.0), 1.0, 0.3
    wedge = bpy.data.objects.new("Wedge", ld)
    wedge.location = (0.5, 1.6, 1.9)
    wedge.rotation_euler = (Vector((0.2, 0.5, 0.0)) - wedge.location).to_track_quat(
        "-Z", "Y").to_euler()
    scene.collection.objects.link(wedge)

    cam_data = bpy.data.cameras.new("Cam")
    cam_data.lens = 50.0
    cam = bpy.data.objects.new("Cam", cam_data)
    cam.location = (0.95, -2.35, 1.05)
    scene.collection.objects.link(cam)
    aim = bpy.data.objects.new("Aim", None)
    aim.location = (0.0, 0.0, 0.30)
    scene.collection.objects.link(aim)
    con = cam.constraints.new("TRACK_TO")
    con.target = aim
    con.track_axis = "TRACK_NEGATIVE_Z"
    con.up_axis = "UP_Y"
    scene.camera = cam

    scene.render.engine = "CYCLES" if engine == "cycles" else eevee_engine_id()
    if engine == "cycles":
        scene.cycles.samples = 32
        scene.cycles.device = "CPU"
    else:
        try:
            scene.eevee.taa_render_samples = 64
        except AttributeError:
            pass
    scene.render.resolution_x = 1280
    scene.render.resolution_y = 720
    scene.render.image_settings.file_format = "WEBP" if path.lower().endswith(".webp") else "PNG"
    if path.lower().endswith(".webp"):
        scene.render.image_settings.quality = 90
    scene.render.filepath = path
    scene.view_settings.view_transform = "Standard"

    fcode = gallery_framing.check_framing(scene, cam, hero=[low], elements=[low], stage=[floor, wall])
    if fcode:
        return fcode
    bpy.ops.render.render(write_still=True)
    if not (os.path.exists(path) and os.path.getsize(path) > 0):
        return fail("render produced no file", 14)
    return 0


def main():
    argv = sys.argv[sys.argv.index("--") + 1:] if "--" in sys.argv else []
    p = argparse.ArgumentParser()
    p.add_argument("--output", default=None)
    p.add_argument("--engine", default="eevee", choices=("eevee", "cycles"))
    p.add_argument("--skip-decimate", action="store_true")
    p.add_argument("--stray-vert", action="store_true")
    p.add_argument("--lift-z", action="store_true")
    p.add_argument("--float-bow", action="store_true")
    p.add_argument("--short-bows", action="store_true")
    p.add_argument("--short-staple", action="store_true")
    p.add_argument("--edge-on-ring", action="store_true")
    p.add_argument("--float-pins", action="store_true")
    p.add_argument("--clip-ring", action="store_true")
    p.add_argument("--pinch-bows", action="store_true")
    p.add_argument("--skew-bow", action="store_true")
    args = p.parse_args(argv)

    code, low, _high, mats, tex, _col = check(
        args.skip_decimate,
        lift_z=args.lift_z,
        stray_vert=args.stray_vert,
        float_bow=args.float_bow,
        short_bows=args.short_bows,
        short_staple=args.short_staple,
        edge_on_ring=args.edge_on_ring,
        float_pins=args.float_pins,
        clip_ring=args.clip_ring,
        pinch_bows=args.pinch_bows,
        skew_bow=args.skew_bow,
    )
    if code:
        return code
    if args.output:
        rcode = render_still(low, mats, tex, os.path.abspath(args.output), args.engine)
        if rcode:
            return rcode
        print(f"rendered still {args.output}")
    print("wooden yoke OK")
    return 0


if __name__ == "__main__":
    try:
        sys.exit(main())
    except Exception as e:
        traceback.print_exc()
        print(f"FATAL: {e}", file=sys.stderr)
        sys.exit(1)
