Espresso Machine

showcase/espresso-machine/

A procedural prosumer E61 semi-automatic espresso machine on a honed limestone countertop section — a black chassis behind a brushed stainless front panel, two side panels folded round the front and back edges, each one sheet with louvred vent slots cut through it, a warmer tray with a rail bent from one bar and four upturned cups, on adjustable feet; the chromed E61 group with its neck, thermosiphon pipe, gasket, mushroom cap and a lever pinned through two bosses; a spouted portafilter with a walnut handle locked against the gasket; steam and hot-water valves with fluted bakelite knobs and wands on ball joints; twin gauges with printed dials in chrome bezels; a toggle and pilot lamp; a drip tray whose slotted grate carries a shot cup of espresso; and a knock box, tamper and milk pitcher — with a studio carried in the metals' material so stainless reads as metal on a dark stage, through UVs, bake, LOD, collider, and Unity glTF, asserting recomputed budgets rather than an API contract.

Rendered headless by the showcase piece itself. Select it to enlarge.

witnesses Recomputed: 43636 tris, fourteen materials with 4788 stainless, 7284 chrome, 948 bakelite, 632 wood, 5800 ceramic, 1244 rubber, 632 glass, 1642 dial, 64 ink, 36 needle, 91 stone, 26 paint, 452 coffee and 116 lamp faces, UVs in 0..1 with zero AABB overlap, outer AABB 0.670×0.655×0.4755 m, zmin 0, hygiene 0 including zero coplanar cross-shell pairs, all four pads sunk 0.00025–0.00070 m into the counter (band 0.0001–0.0008), the lever pin 0.000000 m off the axis of both bosses and the hub (cap 0.0003) and spanning all three, all five cups seated 0.00020–0.00074 m on the warmer tray or the grate (band 0.0001–0.0009), the body 0.30000 m wide (0.300 ± 0.004) and its warmer tray 0.39070 m above the counter (0.3907 ± 0.004), the portafilter and gasket 0.000000 m off the group's axis (cap 0.0003) and the rim pressed 0.00040 m into the gasket (band 0.0001–0.0008), both gauge glasses 0.0034 m behind their bezels' lips (band 0.0015–0.0050), the drip tray 0.0250 m inside the side panels (floor 0.010) and tucked 0.0170 m behind the front panel (floor 0.005), the mass centre 0.1064 m inside the feet's support polygon (floor 0.060) at 39.83 kg, one connected assembly of 94 shells, LOD ratios in band, collider 346 tris, non-empty glTF. --skip-decimate exits 9; --stray-vert 15; --lift-z 16; --float-foot 16; --offset-pin 17; --sink-cup 18; --narrow-body 19; --offset-pf 20; --drop-pf 21; --proud-gauge 22; --shift-tray 23; --bunch-feet 24; --loose-knob 25.

category Household

tags mesh export showcase

blender --background --python showcase/espresso-machine/espresso_machine.py --

A showcase piece, not an example, and the fifth in the household category. It builds a procedural prosumer E61 semi-automatic espresso machine, generic and unbranded, on a short countertop section:

Every face carries a part tag (a face attribute written as each part is built), and the audits classify shells by it. The measurements themselves are read off the mesh.

The side panels and the grate are one helper, add_sheet: a sheet swept along a plan path through a set of heights, where each cell of that grid is metal or a slot, and every slot is walled round. Each is a single manifold shell of quads. A side panel's path runs in from the front fold, round a 4 mm bend, down the side past the vent banks' stations, round the back bend and in again, so the folds and the louvres are one piece of metal, as they are on the machine.

Stainless and chrome carry a studio in their material. A metal on the house's dark stage mirrors the dark stage and reads as grey paint (the stand mixer's bowl did). Here the world-space reflection vector looks up a ramp — a bright band of walls and softboxes around the horizon, a dim ceiling, a dark floor straight down, the key's side brighter than the other — added as emission, so the metal reads in the hero and on the asset sheet's neutral stage alike. A vertical panel seen from above mirrors what lies just below the horizon: the first ramp, bright only above it, left every panel black. Steel gets a soft gradient down a panel; chrome a narrow bright horizon, a dark gap and a softbox above.

Things the coplanar budget forced:

Shading follows what each part is. Lathed parts, sweeps and cups are smooth-shaded; chamfers, slots, knurls and folds stay crisp above 35° and at every material boundary. The walnut is oiled (a thin coat) with its grain noise stretched along one axis; the porcelain carries a glaze coat.

It asserts budget conformance of the generated result. It does not witness an API contract. "It rendered without error" is not a check.

Composes skills mesh-editing-and-bmesh, bake-high-to-low, depsgraph-and-evaluated-data, engine-export-presets, procedural-materials-and-shaders, and snippets bake_normal_high_to_low.py, setup_bake_target_image.py, lod_chain.py / decimate_to_budget.py, convex_hull_collider.py, export_preset_unity.py (helpers copied inline, not imported).

Intended size: a machine 0.300 m wide and 0.391 m to its warmer tray on a 0.03 m counter, 0.376 m deep plus a 0.12 m drip tray, with a 0.064 m cappuccino cup setting the top. The outer AABB is 0.670 × 0.655 × 0.4755 m: the counter sets the plan and the cup the top. The origin is under the counter.

Budgets#

Every budget is declared as a named constant. Every gate recomputes its value from the mesh, materials, UVs, evaluated LOD, collider, or export file.

AxisDeclaredMeasured (5.2.1)
Base triangles43000–4430043636
LOD1 ratio0.32–0.62 of base0.5000
LOD2 ratio0.10–0.35 of base0.2200
Materialsexactly 14 distinct; face floors ≥4400 stainless, ≥6700 chrome, ≥870 bakelite, ≥580 wood, ≥5330 ceramic, ≥1140 rubber, ≥580 glass, ≥1510 dial, ≥58 ink, ≥32 needle, ≥84 stone, ≥24 paint, ≥415 coffee, ≥106 lamp14 slots; 4788 / 7284 / 948 / 632 / 5800 / 1244 / 632 / 1642 / 64 / 36 / 91 / 26 / 452 / 116
UVsin 0..1, AABB overlap ≤ 1e-5in range, overlap 0
Outer AABB(0.670, 0.655, 0.4755) m ± 0.01(0.6700, 0.6550, 0.4755), zmin 0
Collider tris≤ 520346
Exportwritten, size > 0, removed after measuring3222244 / 3222244 / 3222236 bytes (4.5.11 / 5.1.2 / 5.2.1)

No falsifier changes the topology, so every one of them measures the default's 43636 triangles. Every one keeps the default's AABB except --sink-cup, which sinks the cup that sets the top 3 mm and measures 0.4725 m, inside the 10 mm tolerance.

DECIMATE COLLAPSE triangle counts are not identical across Blender series, so the LOD gate is a ratio band, not an exact count. Bake pixels are stochastic, so the bake gate is has_data plus operator FINISHED, not byte-identity. Construction uses no RNG; two default runs print identical measurements.

Hygiene#

Recomputed from the generated mesh, not asserted about the script.

AxisDeclaredMeasured
Non-manifold edges00
Loose verts / edges0 / 00 / 0
Doubles merged at 1e-500
Zero-area faces00
N-gons00
Coplanar cross-shell face pairs (KD range 0.05 m, plane ε 1e-4)00
Grounded: zminwithin 1e-4 of 00.0000
Feet: each of the 4 rubber pads sunk into the counter top read off the mesh0.0001–0.0008 m0.00025, 0.00040, 0.00055, 0.00070

Lever, cups, size, portafilter, gauges, tray, stance and assembly#

AxisDeclaredMeasured
Lever pin: the pin's PCA axis against the axis of each of the 2 bosses and the lever's hub; the pin spans each in x; tilt off X≤ 0.0003 m; 2 + 1; 0 not through; ≤ 0.5°0.000000; 2 + 1; 0; 0.0000°
Cups seated: each of the 5 cups' lowest ring against its host's top, read by rays down onto the host alone (the warmer tray for the four upturned cups, the grate for the shot cup)0.0001–0.0009 m0.00020, 0.00038, 0.00056, 0.00074; 0.00035
Size: width across the side panels; warmer-tray top above the counter0.300 ± 0.004 m; 0.3907 ± 0.004 m0.30000; 0.39070
Portafilter coaxial: the portafilter body's and the gasket's axes (lathe centroids) against the group's≤ 0.0003 m0.000000; 0.000000
Portafilter seat: the basket rim's top pressed into the gasket's face0.0001–0.0008 m0.00040
Gauge faces: each glass's front behind its bezel's front lip0.0015–0.0050 m; 2 + 20.0034, 0.0034
Drip tray: inside the side panels on both sides; its back tucked behind the front panel's facemargin ≥ 0.010 m; tuck ≥ 0.005 m0.0250; 0.0170
Stance: mass centre (shell volumes × densities, counter and props excluded) inside the convex polygon of the pads' contact faces≥ 0.060 m0.1064 (39.83 kg)
One connected assembly (union of shells whose BVH trees overlap; faceless shells are hygiene's)1 component1 (94 shells)

A heat-exchanger E61 carries its group, portafilter and drip tray well in front of the chassis, and stands because its feet are spread under it. The stance budget measures that. The densities are named constants (stainless and paint steel 7900/7800, chrome-plated brass 8500, bakelite 1400, walnut 700, porcelain 2300, rubber 1200, glass 2500), with the chassis box overridden at 350: it is solid in the mesh, a frame round a boiler and air in the machine.

Falsifiers#

Each falsifier violates one named budget. Every one was run on 5.2.1 and exited its declared code, and every other budget in its run stayed green.

FlagBudget violatedExit
--skip-decimateLOD1 ratio band (measured 1.0000)9
--stray-vertloose vertex count is 0 (measured 1, placed inside the envelope)15
--lift-zbounding box zmin is 0 (measured 0.05000)16
--float-footfeet on the counter (one pad 3 mm up: seat −0.00230 m)16
--offset-pinlever pin coaxial through its bosses and hub (pin 1.5 mm up: 0.001500 m)17
--sink-cupcups seated on their host (the cappuccino cup 3 mm into the tray: 0.00356 m)18
--narrow-bodysize (side panels drawn in: width 0.28300 m)19
--offset-pfportafilter coaxial with the group (slid 1.2 mm: 0.001200 m)20
--drop-pfportafilter seated to the gasket (2 mm low: seat −0.00160 m)21
--proud-gaugegauge faces behind their bezels (glass, dial and needle 4.5 mm out: recess −0.0011 m)22
--shift-traydrip tray inside the body's footprint (30 mm right: margin −0.0050 m)23
--bunch-feetstance (feet under the back: margin −0.1613 m)24
--loose-knobone connected assembly (steam knob 5 mm off its valve: 2 components)25

--float-foot leaves the pad's stem still inside it, so the assembly holds. --drop-pf and --offset-pf leave the portafilter inside the group's skirt, so it stays joined and only the seat or the axis moves. --sink-cup sinks, rather than floats, the cup, so the cup stays joined to the tray. --proud-gauge leaves the glass and dial inside the bezel's bore. --shift-tray keeps the tray tucked into the chassis, and the shot cup on the grate. --bunch-feet keeps every pad on the counter and under the chassis, so only the mass centre leaves the support polygon.

Run#

blender --background --python espresso_machine.py --
blender --background --python espresso_machine.py -- --skip-decimate
blender --background --python espresso_machine.py -- --stray-vert
blender --background --python espresso_machine.py -- --lift-z
blender --background --python espresso_machine.py -- --float-foot
blender --background --python espresso_machine.py -- --offset-pin
blender --background --python espresso_machine.py -- --sink-cup
blender --background --python espresso_machine.py -- --narrow-body
blender --background --python espresso_machine.py -- --offset-pf
blender --background --python espresso_machine.py -- --drop-pf
blender --background --python espresso_machine.py -- --proud-gauge
blender --background --python espresso_machine.py -- --shift-tray
blender --background --python espresso_machine.py -- --bunch-feet
blender --background --python espresso_machine.py -- --loose-knob
blender --background --python espresso_machine.py -- --output espresso.png

Smoke passes no flags.

The camera looks along (−0.55, 0.83), so the hero shows the machine's front — gauges, knobs, group, portafilter handle in profile, shot cup on the grate — and its right side panel with the vent banks, with the tamper and pitcher in the left foreground and the knock box to the right. The wall behind the machine in frame lies 1.6 m to its −X, so the warm wedge is aimed there rather than at the wall straight behind the piece.

Exit codes#

File-local. 9 is a valid check code. 10 is reserved for gallery_framing.check_framing on the --output path. 15–19 are the hygiene and joint-fit family. 20–25 are file-local. 26 is the asset-quality floor on the render path: check_asset_quality returns 11, which this piece already spends on the collider ceiling, so the call site remaps it.

CodeMeaning
0Success
1Uncaught exception (FATAL wrapper)
2argparse / usage
3Mesh did not build / no UV layer
4Base triangle count outside range
5Material count ≠ 14 distinct slots, or a face-count floor missed
6UVs outside 0..1
7UV AABB overlap above tolerance
8World AABB off declared outer size
9LOD ratio band (--skip-decimate lands here)
10Framing gate (render path only)
11Collider triangle count above ceiling
12Bake did not finish or image has no data
13Export file missing or empty
14--output produced no file
15Mesh hygiene: loose, non-manifold, zero-area, doubles, n-gons, coplanar cross-shell pairs
16Not grounded: bounding box zmin off 0, or a pad off the counter or not 4 pads (--lift-z, --float-foot)
17Lever pin off a boss's or the hub's axis, not spanning one, tilted, or not 2 + 1 (--offset-pin)
18A cup's seat on its host outside its band, or not 5 cups (--sink-cup)
19Size: body width or warmer-tray height off (--narrow-body)
20Portafilter or gasket off the group's axis (--offset-pf)
21Portafilter rim's seat in the gasket outside its band (--drop-pf)
22A gauge glass not recessed in its bezel by the band, or not 2 + 2 (--proud-gauge)
23Drip tray outside the side panels' margin or not tucked behind the front panel (--shift-tray)
24Stance: mass centre within 60 mm of the pads' support polygon's edge (--bunch-feet)
25Assembly splits into more than one connected component (--loose-knob)
26Asset-quality floor (render path only; remapped from 11)

Source

showcase/espresso-machine/espresso_machine.py View the script on GitHub →

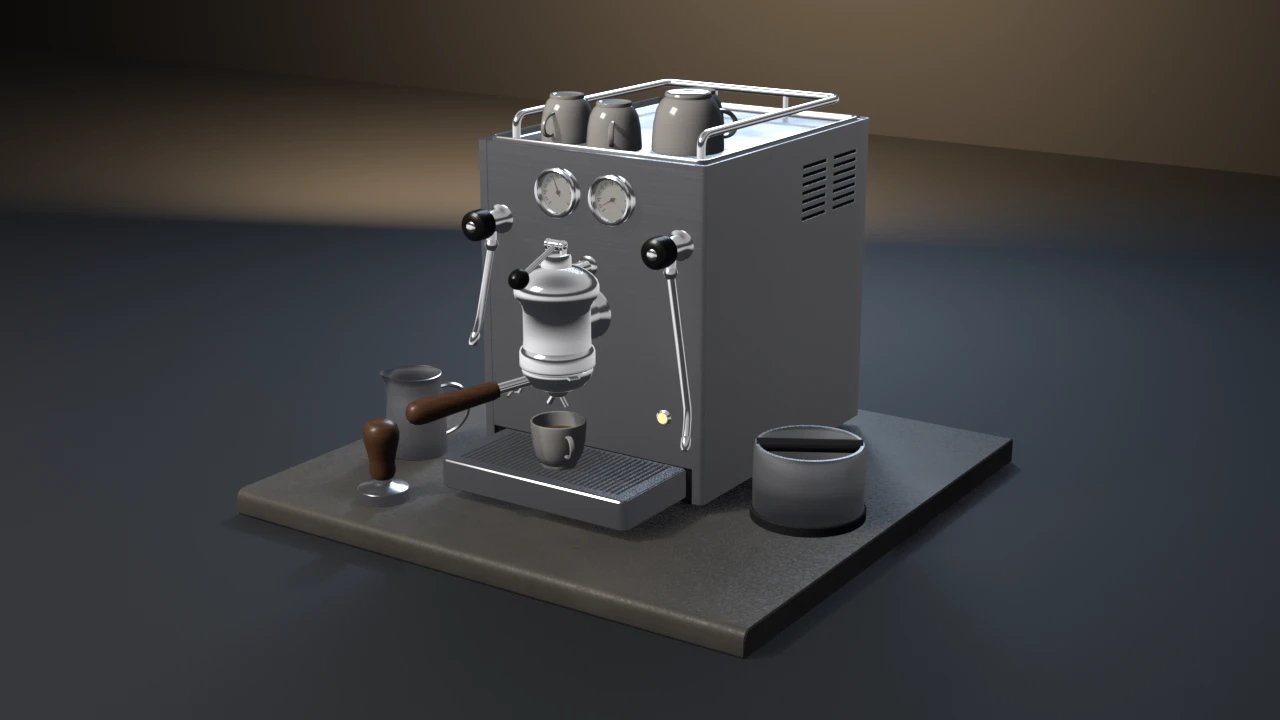

A brushed stainless E61 espresso machine with twin gauges, a chrome group head and a walnut-handled portafilter over a shot cup, cups on its warmer tray, beside a tamper, milk pitcher and knock box.
