A procedural shipping crate through UVs, bake, LOD, collider, and Unity glTF, asserting recomputed budgets rather than an API contract.

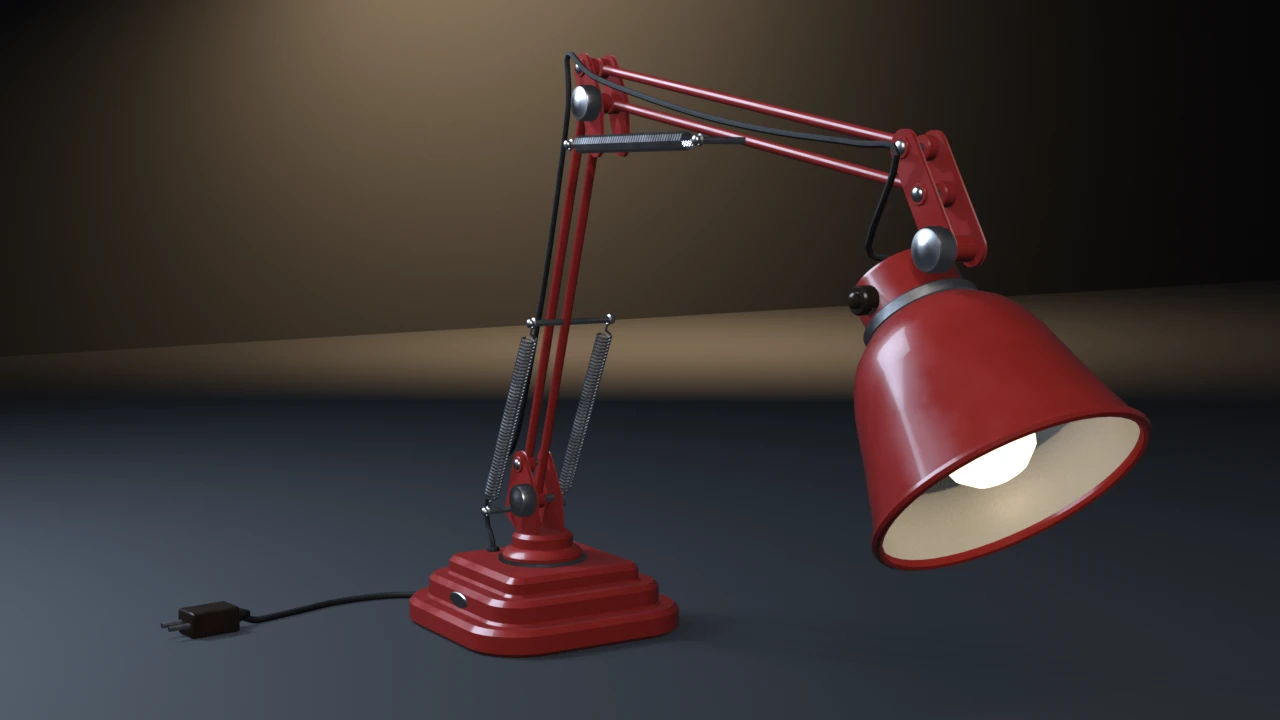

Rendered headless by the showcase piece itself — click to zoom.
witnesses Recomputed: 30110 tris, six materials with 3972 enamel, 9210 steel, 348 bulb, 1508 rubber, 622 reflector and 384 bakelite faces, UVs in 0..1 with zero AABB overlap, outer AABB 0.725×0.361×0.442 m, zmin 0, hygiene 0 including zero coplanar cross-shell pairs, all 7 joint pins coaxial with the 23 eyes and bosses they pass through (offset 0.000 mm, band 0.3 mm), all 6 spring loops centred on their bars' axes (band 0.6 mm), mass centre 39.6 mm inside the base footprint (floor 25 mm), base 0.180 m square, arm sections 0.320 and 0.360 m pin to pin, one connected assembly of 78 shells, LOD ratios in band, collider 713 tris, non-empty glTF. --skip-decimate exits 9; --stray-vert 15; --lift-z 16; --offset-pin 17; --unhook-spring 18; --hollow-base 19; --unscrew-bulb 20.
category Household
blender --background --python showcase/desk-lamp/desk_lamp.py --
A showcase piece, not an example, and the first in the household category. It builds a procedural balanced-arm architect's lamp in the classic Anglepoise pattern:
- a three-tier cast base, lofted as one shell from rounded-square loops, with a maker's badge on the front riser;
- a swivel turret on a steel bearing washer, carrying a yoke;
- two parallelogram arm sections (0.32 m and 0.36 m pin to pin), each of two parallel rods ending in eye bosses;
- three knuckles (base, elbow, head) whose cheeks carry a cast boss at every pin station, seven through-pins, and knurled tension knobs on the base, elbow and shade pins;
- three close-wound extension springs, two on the lower section and one on the upper, each hung by a looped end on a cross bar at both ends;
- a domed enamel shade with a white reflector inside, a wired rolled rim, a chrome band over the cowl step and a push switch, hung from the head knuckle on a stem and eye;
- a lamp in a ribbed screw cap on a bakelite socket, with an emissive glass envelope;
- a flex that leaves a gland on the shade's back, drapes down rod B of each section and enters a grommet on the base's top tread; and a mains cable that leaves a grommet in the rear riser, crosses the desk and ends in a two-pin plug.
The linkage is solved from named stations (arm_stations()): the lower and upper rods run at 72° and −10°, each section's second rod is offset by the same 30 mm link vector, and the shade hangs on its own pin at 50° below horizontal. Every pin, eye, bar and spring is placed from those stations, so moving one angle moves the whole arm consistently.
Two things the coplanar budget forced:
- Stations on one knuckle are a few centimetres apart, so their flat faces must not share a plane. Each station's boss stands 0.3 mm prouder than the last, its pin head moves with it, and its eye is 0.3 mm narrower. Before this the first run measured 7987 coplanar cross-shell pairs, nearly all of them boss, eye and pin caps on shared planes.
- The two cheeks of a knuckle are not mirror copies. The far cheek's lugs are 0.4 mm smaller, or the pair's rims lie in the same planes. Coaxial parts of equal radius (a mirrored boss pair, the lower and upper eyes at the elbow) are turned half a facet apart for the same reason, and so is rod B relative to rod A.
The cable is a Catmull-Rom spline through floor points. Between points the spline dipped 0.3 mm through the desk and grounded the whole piece on the cable, so the base stood 0.3 mm in the air. The cable is now clamped to rest on the desk, and the base and plug are what reach Z = 0.
Shading follows what each part is. Round stock (rods, springs, flex, shade, lamp) is smooth-shaded. Treads, chamfers and knurls stay crisp through sharp edges above 35° and at every material boundary. The enamel is a deep glossy red with a clear coat. The springs, pins and knobs are plated steel, rough enough to catch the key rather than mirror a black stage.
It asserts budget conformance of the generated result. It does not witness an API contract. "It rendered without error" is not a check.
Composes skills mesh-editing-and-bmesh, bake-high-to-low, depsgraph-and-evaluated-data, engine-export-presets, and snippets bake_normal_high_to_low.py, setup_bake_target_image.py, lod_chain.py / decimate_to_budget.py, convex_hull_collider.py, export_preset_unity.py (helpers copied inline, not imported).
Intended size: a 0.18 m square base, 0.32 m and 0.36 m arm sections, and a shade 0.17 m across the rim. The outer AABB is 0.725 × 0.361 × 0.442 m. The shade rim sets +X, the plug sets −X and −Y, and the elbow knuckle sets the top. The origin is under the base centre, so the lamp drops onto a desk by its base.
Budgets#
Every budget is declared as a named constant. Every gate recomputes its value from the mesh, materials, UVs, evaluated LOD, collider, or export file.
| Axis | Declared | Measured (5.2.1) |
|---|---|---|
| Base triangles | 29000–31500 | 30110 |
| LOD1 ratio | 0.32–0.62 of base | 0.5000 |
| LOD2 ratio | 0.10–0.35 of base | 0.2200 |
| Materials | exactly 6 distinct; ≥3600 enamel, ≥8300 steel, ≥310 bulb, ≥1350 rubber, ≥560 reflector, ≥340 bakelite faces | 6 slots; 3972 / 9210 / 348 / 1508 / 622 / 384 |
| UVs | in 0..1, AABB overlap ≤ 1e-5 | in range, overlap 0 |
| Outer AABB | (0.725, 0.361, 0.442) m ± 0.01 | (0.7252, 0.3606, 0.4421), zmin 0 |
| Collider tris | ≤ 760 | 713 |
| Export | written, size > 0, removed after measuring | 2229360 bytes |
The triangle band is wide enough to hold --hollow-base (30974) and --unhook-spring (29790), so those falsifiers exit on their own budgets rather than on the triangle count.
DECIMATE COLLAPSE triangle counts are not identical across Blender series, so the LOD gate is a ratio band, not an exact count. Bake pixels are stochastic, so the bake gate is has_data plus operator FINISHED, not byte-identity. Construction uses no RNG; two default runs print identical measurements.
Hygiene#
Recomputed from the generated mesh, not asserted about the script.
| Axis | Declared | Measured |
|---|---|---|
| Non-manifold edges | 0 | 0 |
| Loose verts / edges | 0 / 0 | 0 / 0 |
| Doubles merged at 1e-5 | 0 | 0 |
| Zero-area faces | 0 | 0 |
| N-gons | 0 | 0 |
| Coplanar cross-shell face pairs (KD range 0.05 m, plane ε 1e-4) | 0 | 0 |
Grounded: zmin | within 1e-4 of 0 | 0.0000 |
Joint pins, springs, stance and assembly#
| Axis | Declared | Measured |
|---|---|---|
| Joint pins: for each of the 7 pins (axis by PCA), the XZ offset from its axis to the axis of every eye and boss within 12 mm, taken at that eye's own station | ≤ 0.0003 m; 7 pins, 23 eyes and bosses, ≥ 3 per pin; each pin spans every one of them in Y; pin tilt ≤ 0.5° | 0.000000; 7 pins, 23 (3, 3, 4, 4, 3, 3, 3); 0 not through; 0.000° |
| Spring seat: for each of the 6 looped ends, distance from its centre to the axis of the nearest bar, within that bar's length; each coil's wire runs into exactly 2 loops | ≤ 0.0006 m; 3 coils, 6 loops, 4 bars | 0.000000; ends [2, 2, 2] |
| Stance: mass centre (shell volumes × density per material) inside the base footprint read off the mesh | ≥ 0.025 m inside every edge | 0.0396 (11.76 kg, centre at x 0.0504) |
| Base width | 0.180 m ± 0.003 each way | 0.1800 × 0.1800 |
| Arm sections, pin to pin (both rods of each) | 0.320 / 0.360 m ± 0.003 | 0.3200, 0.3200 / 0.3600, 0.3600 |
| One connected assembly (union of shells whose BVH trees overlap) | 1 component | 1 (78 shells) |
A balanced-arm lamp whose shade rim reaches nearly 0.6 m past its pivot stands only because its base is heavy. The stance budget tests exactly that: the densities are named constants (steel and cast iron 7850, bakelite 1400, rubber 1200, and 300 for the lamp, whose glass is modelled solid but is a hollow envelope), and the volumes come from the mesh.
Falsifiers#
Each falsifier violates one named budget. Every one was run on 5.2.1 and exited its declared code. None moves the envelope: every run measured the same outer AABB as the default.
| Flag | Budget violated | Exit |
|---|---|---|
--skip-decimate | LOD1 ratio band (measured 1.0000) | 9 |
--stray-vert | loose vertex count is 0 (measured 1, placed inside the envelope) | 15 |
--lift-z | bounding box zmin is 0 (measured 0.05000) | 16 |
--offset-pin | joint pins coaxial (elbow pin moved 2.5 mm off its eyes: offset 0.00250 m) | 17 |
--unhook-spring | spring seat (one loop 10 mm short of its bar: 0.01000 m) | 18 |
--hollow-base | stance (base pressed from 1.5 mm steel: 3.22 kg, centre at x 0.184, margin −0.094 m) | 19 |
--unscrew-bulb | one connected assembly (lamp backed 5 mm out of its socket: 2 components) | 20 |
--offset-pin still leaves the pin inside every eye it passes through, and the arm lengths it moves (0.3208, 0.3575 m) stay inside their tolerance, so only the coaxial budget sees it. --unhook-spring leaves the spring hanging from its lower bar, so the assembly stays connected. --hollow-base keeps the outer loft, so the envelope and footprint are unchanged and only the mass moves.
Run#
blender --background --python desk_lamp.py --
blender --background --python desk_lamp.py -- --skip-decimate
blender --background --python desk_lamp.py -- --stray-vert
blender --background --python desk_lamp.py -- --lift-z
blender --background --python desk_lamp.py -- --offset-pin
blender --background --python desk_lamp.py -- --unhook-spring
blender --background --python desk_lamp.py -- --hollow-base
blender --background --python desk_lamp.py -- --unscrew-bulb
blender --background --python desk_lamp.py -- --output lamp.pngSmoke passes no flags.
The hero turns the piece HERO_YAW_DEG (−95°). The reach then points to the camera's right and toward it, so the parallelogram reads in depth and the shade's mouth shows the lit lamp. A small point light just inside the mouth stands in for the lamp's light and lights the reflector. It is render-only, like the stage. The wall stands 2.6 m behind the lamp, and the warm wedge pools on it behind the shade.
Exit codes#
File-local. 9 is a valid check code. 10 is reserved for gallery_framing.check_framing on the --output path. 15–19 are the hygiene and joint-fit family. 20 is file-local. 21 is the asset-quality floor on the render path: check_asset_quality returns 11, which this piece already spends on the collider ceiling, so the call site remaps it.
| Code | Meaning |
|---|---|
| 0 | Success |
| 1 | Uncaught exception (FATAL wrapper) |
| 2 | argparse / usage |
| 3 | Mesh did not build / no UV layer |
| 4 | Base triangle count outside range |
| 5 | Material count ≠ 6 distinct slots, or a face-count floor missed |
| 6 | UVs outside 0..1 |
| 7 | UV AABB overlap above tolerance |
| 8 | World AABB off declared outer size |
| 9 | LOD ratio band (--skip-decimate lands here) |
| 10 | Framing gate (render path only) |
| 11 | Collider triangle count above ceiling |
| 12 | Bake did not finish or image has no data |
| 13 | Export file missing or empty |
| 14 | --output produced no file |
| 15 | Mesh hygiene: loose, non-manifold, zero-area, doubles, n-gons, coplanar cross-shell pairs |
| 16 | Not grounded: bounding box zmin off 0 |
| 17 | Joint pins: a pin off the axis of an eye or boss it joins, not spanning one, tilted, or not 7 pins and 23 eyes (--offset-pin) |
| 18 | Spring seat: a looped end off its bar's axis or length, or a coil not running into two loops, or not 3 coils, 6 loops and 4 bars (--unhook-spring) |
| 19 | Stance and size: mass centre within 25 mm of the base's edge, base width, or an arm section's length (--hollow-base) |
| 20 | Assembly splits into more than one connected component (--unscrew-bulb) |
| 21 | Asset-quality floor (render path only; remapped from 11) |
Source
"""Game-ready balanced-arm desk lamp — a showcase piece, not an example. Asserts budget conformance of a procedural architect's lamp after composing shipped pipeline pieces: bmesh construction, UVs, six materials, high-to-low normal bake, LOD chain, convex collider, Unity glTF export. The lamp is the classic balanced-arm design. A three-tier cast base with rounded corners carries a swivel turret on a bearing washer. A yoke on the turret carries two parallelogram arm sections, each made of two parallel rods. Each rod ends in an eye boss that is pinned between a pair of knuckle cheeks. Knurled tension knobs sit on the base, elbow and shade pins. Three close-wound tension springs hang by looped ends on cross bars: two on the base section, one on the upper section. The shade is a domed bell of enamelled sheet with a white reflector inside, a wired rolled rim, a chrome band, a push switch and a lamp on a bakelite socket. A flex drapes from a gland on the shade's back down both arm sections into the base's top tread, and a rubber cable leaves the base through a grommet and ends in a plug on the desk. Budgets are declared below and recomputed from the generated result. They are not API-contract witnesses. Each falsifier violates one named budget: ``--skip-decimate`` the LOD-ratio band, ``--stray-vert`` mesh hygiene, ``--lift-z`` grounded zmin, ``--offset-pin`` joint pins coaxial through the parts they join, ``--unhook-spring`` spring ends seated on their anchor bars, ``--hollow-base`` the mass centre over the base footprint, ``--unscrew-bulb`` one connected assembly. No RNG. Construction is closed-form. DECIMATE COLLAPSE triangle counts are not byte-identical across Blender versions — the LOD gate is a ratio band, not an exact count. blender --background --python desk_lamp.py -- blender --background --python desk_lamp.py -- --skip-decimate blender --background --python desk_lamp.py -- --output lamp.png """ import argparse import math import os import sys import tempfile import traceback import bmesh import bpy import numpy as np from mathutils import Matrix, Vector from mathutils.bvhtree import BVHTree from mathutils.kdtree import KDTree # Showcase lives at repo-root/showcase/, not under examples/. The framing # helper is the repo's only shared import and lives next to the examples; # resolve the repo root so we do not move gallery_framing.py. _REPO = os.path.abspath( os.path.join(os.path.dirname(os.path.abspath(__file__)), os.pardir, os.pardir) ) sys.path.insert(0, os.path.join(_REPO, "examples")) sys.dont_write_bytecode = True import gallery_framing # noqa: E402 import gallery_asset_quality # noqa: E402 # --- Base: three tiers of rounded square, one lofted shell ---------------- BASE_HALF = 0.090 # 0.18 m square footprint BASE_RC = 0.044 # outer corner radius; each tier's is offset from it BASE_RC_MIN = 0.005 BASE_CORNER_SEGS = 8 # (inset from the outer edge, z): bottom chamfer, three risers with chamfered # treads, top face at inset 0.036 BASE_PROFILE = [ (0.003, 0.000), (0.000, 0.003), (0.000, 0.016), (0.004, 0.020), (0.014, 0.020), (0.016, 0.022), (0.016, 0.034), (0.020, 0.038), (0.030, 0.038), (0.032, 0.040), (0.032, 0.048), (0.036, 0.052), ] BASE_TOP = 0.052 HOLLOW_WALL = 0.0015 # --hollow-base: a pressed-steel shell this thick # --- Turret and yoke ------------------------------------------------------- WASHER_R = (0.020, 0.035) WASHER_Z = (0.0515, 0.0545) TURRET_PROFILE = [(0.032, 0.049), (0.032, 0.057), (0.029, 0.061), (0.024, 0.063), (0.024, 0.071), (0.021, 0.074)] TURRET_TOP = 0.074 CHEEK_IN = 0.0094 # knuckle cheeks: inner face |y| CHEEK_OUT = 0.0124 # outer face |y| CHEEK_LUG_R = 0.010 # cheek outline round each pin station BOSS_R = 0.0065 # cast boss on each cheek at each pin BOSS_PROUD = 0.0015 BOSS_BITE = 0.0003 # Stations on one knuckle sit within a few centimetres of each other, so # their flat faces must not share planes: each station's boss stands a # little prouder (and its pin head with it) and its eye a little narrower. # The far cheek's lugs are cast a touch smaller than the knob-side cheek's, # or the pair's rims would lie in the same planes. STATION_STAGGER = 0.0003 FAR_CHEEK_TRIM = 0.0004 # --- Arm geometry (the lamp's plane is XZ at y = 0, reaching +X) ---------- PIVOT = (0.0, 0.100) # base pin B1 (x, z) ARM1_DEG = 72.0 # lower section, from horizontal ARM1_LEN = 0.320 ARM2_DEG = -10.0 # upper section ARM2_LEN = 0.360 LINK_DEG = 120.0 # parallelogram offset between each section's rods LINK_LEN = 0.030 ROD_R = 0.0036 ROD_Y = 0.0048 # lower rods at -ROD_Y, upper rods at +ROD_Y EYE_R = 0.0075 EYE_HALF = 0.0040 ROD_END = 0.0030 # rod ends stop this short of the pin, inside the eye PIN_R = 0.0028 PIN_HEAD_R = 0.0046 PIN_HEAD_BITE = 0.0002 KNOB_R = 0.013 KNOB_W = 0.012 KNOB_BITE = 0.0010 KNOB_RIDGES = 16 # --- Springs and their anchor bars ----------------------------------------- BAR_R = 0.0025 BAR_HEAD_Y = 0.0355 SPRING_Y = 0.033 WIRE_R = 0.0010 COIL_R = 0.0055 PITCH = 0.0030 STEPS_PER_TURN = 8 HOOK_MINOR = 0.0011 HOOK_BITE = 0.0003 HOOK_MAJOR = BAR_R + HOOK_MINOR - HOOK_BITE TAIL = 0.006 BASE_ANCHOR = (-0.030, -0.012) # bar 0, from B1 ARM1_ANCHOR = 0.150 # bar 1, along lower rod A from B1 ELBOW_ANCHOR = (0.004, -0.030) # bar 2, from E1 ARM2_ANCHOR = 0.170 # bar 3, along upper rod A from E1 # --- Shade ----------------------------------------------------------------- SHADE_PIVOT = (0.018, -0.030) # shade pin S, from H1 SHADE_DEG = -50.0 # shade axis, from horizontal SHADE_STEM_Z = 0.018 # stem station along the shade axis SHADE_STEM_OUT = 0.048 # shade axis to S SHADE_SEGS = 48 SHADE_T = 0.0012 # outer (r, z) along the shade axis: cowl, band step, domed shoulder, bell SHADE_OUTER = [(0.026, 0.000), (0.030, 0.0015), (0.031, 0.004), (0.031, 0.030), (0.033, 0.034), (0.040, 0.040), (0.048, 0.048), (0.054, 0.058), (0.059, 0.072), (0.066, 0.100), (0.073, 0.126), (0.079, 0.146)] RIM_BEAD_R = 0.0032 BAND_Z = (0.0275, 0.036) SWITCH_Z = 0.016 STEM_R = 0.0038 STEM_BITE = 0.002 UNSCREW = 0.005 # --unscrew-bulb: lamp backed out of its socket # --- Cable and plug -------------------------------------------------------- CABLE_R = 0.0028 CABLE_Z = CABLE_R + 0.0002 CABLE_PTS = [(-0.070, -0.030, 0.0095), (-0.092, -0.030, 0.0095), (-0.110, -0.034, 0.0070), (-0.126, -0.046, CABLE_Z), (-0.140, -0.075, CABLE_Z), (-0.141, -0.115, CABLE_Z), (-0.128, -0.158, CABLE_Z), (-0.118, -0.192, CABLE_Z), (-0.115, -0.210, 0.0100)] # The lamp's flex: out of a gland on the shade's back, draped along the rod-B # side of both sections on the knob side of the arm, into a grommet on the # base's top tread. FLEX_R = 0.0021 FLEX_Y = -0.020 FLEX_SAG = (0.008, 0.010) # lower, upper section FLEX_ENTRY = (-0.046, -0.020) PLUG_SIZE = (0.040, 0.026, 0.020) PRONG_STAGGER = 0.0005 BBOX_TOL = 0.01 # Fitted after locking geometry. Recomputed from bound_box. OUTER_SIZE = (0.725, 0.361, 0.442) BASE_TRIS_MIN = 29000 BASE_TRIS_MAX = 31500 LOD1_RATIO_MIN = 0.32 LOD1_RATIO_MAX = 0.62 LOD2_RATIO_MIN = 0.10 LOD2_RATIO_MAX = 0.35 LOD1_TARGET = 0.50 LOD2_TARGET = 0.22 MATERIAL_COUNT = 6 UV_EPS = 1e-4 UV_OVERLAP_MAX = 1e-5 COLLIDER_TRIS_MAX = 760 BAKE_RES = 1024 CAGE_EXTRUSION = 0.004 ENAMEL_FACES_MIN = 3600 STEEL_FACES_MIN = 8300 BULB_FACES_MIN = 310 RUBBER_FACES_MIN = 1350 REFLECTOR_FACES_MIN = 560 BAKELITE_FACES_MIN = 340 ZMIN_EPS = 1e-4 DOUBLES_EPS = 1e-5 AREA_EPS = 1e-10 COPLANAR_NORMAL_EPS = 1e-4 COPLANAR_PLANE_EPS = 1e-4 COPLANAR_CENTRE_MAX = 0.05 LIFT_Z = 0.05 # Joint pins: every pin's axis runs through the axis of every eye and boss # it joins (offset in the XZ plane at the eye's own station), the pin spans # each of them in Y, and it is square to the lamp's plane. PIN_COUNT = 7 PIN_EYES = 23 # 3 + 3 + 4 + 4 + 3 + 3 + 3 PIN_SEARCH = 0.012 PIN_OFFSET_MAX = 0.0003 PIN_TILT_MAX_DEG = 0.5 OFFSET_PIN = 0.0025 # Springs: each looped end's centre on the axis of the bar it hangs on. SPRING_COUNT = 3 HOOK_COUNT = 6 BAR_COUNT = 4 SPRING_SEAT_MAX = 0.0006 UNHOOK = 0.010 # Stance: the lamp's mass centre, from shell volumes and material # densities, stands this far inside the base footprint on every side. DENSITY = (7850.0, 7850.0, 300.0, 1200.0, 7850.0, 1400.0) STANCE_MARGIN = 0.025 BASE_WIDTH_TOL = 0.003 ARM_LEN_TOL = 0.003 # Hero yaw: the reach points to the camera's right and 40 degrees toward it, # so the parallelogram reads in depth and the shade's mouth shows its lamp. HERO_YAW_DEG = -95.0 WALL_Y = 2.6 ENAMEL_IDX = 0 STEEL_IDX = 1 BULB_IDX = 2 RUBBER_IDX = 3 REFLECTOR_IDX = 4 BAKELITE_IDX = 5 Y_UP = Matrix(((1.0, 0.0, 0.0), (0.0, 0.0, 1.0), (0.0, -1.0, 0.0))) # local Z -> +Y Y_DOWN = Matrix(((1.0, 0.0, 0.0), (0.0, 0.0, -1.0), (0.0, 1.0, 0.0))) # local Z -> -Y X_DOWN = Matrix(((0.0, 0.0, -1.0), (0.0, 1.0, 0.0), (1.0, 0.0, 0.0))) # local Z -> -X def eevee_engine_id(): return "BLENDER_EEVEE" if bpy.app.version >= (5, 0, 0) else "BLENDER_EEVEE_NEXT" def fail(msg, code): print(f"ERROR: {msg}", file=sys.stderr) return code def triangle_count(mesh): mesh.calc_loop_triangles() return len(mesh.loop_triangles) def evaluated_triangle_count(obj): # Duplicated from snippets/lod_chain.py / decimate_to_budget.py (not a package). depsgraph = bpy.context.evaluated_depsgraph_get() eval_obj = obj.evaluated_get(depsgraph) eval_mesh = eval_obj.to_mesh() try: eval_mesh.calc_loop_triangles() return len(eval_mesh.loop_triangles) finally: eval_obj.to_mesh_clear() # -------------------------------------------------------------------------- # Construction helpers # -------------------------------------------------------------------------- def _mark(faces, mat_idx): for f in faces: f.material_index = mat_idx def v3(xz, y=0.0): return Vector((xz[0], y, xz[1])) def add_box(bm, loc, scale, mat_idx): geo = bmesh.ops.create_cube(bm, size=1.0) verts = geo["verts"] origin = Vector(loc) for v in verts: v.co = Vector((v.co.x * scale[0], v.co.y * scale[1], v.co.z * scale[2])) + origin _mark({f for v in verts for f in v.link_faces}, mat_idx) return list(verts) def add_lathe(bm, profile, segs, mat_idx, center=(0.0, 0.0, 0.0), rot=None, phase=0.0, solid=False, seg_mats=None, cap_mats=None, rmod=None): """Revolve a profile [(r, z), ...] about local Z. ``solid``: the profile is an open polyline closed by n-gon caps at its two ends; otherwise it is a closed polygon revolved into a ring shell. ``seg_mats`` gives a material per profile segment, ``cap_mats`` the (start, end) caps, and ``rmod(i, j)`` scales the radius of profile point ``j`` on ring ``i``.""" c = Vector(center) m = rot if rot is not None else Matrix.Identity(3) rings = [] for i in range(segs): a = phase + 2.0 * math.pi * i / segs ca, sa = math.cos(a), math.sin(a) ring = [] for j, (r, z) in enumerate(profile): rr = r * (rmod(i, j) if rmod else 1.0) ring.append(bm.verts.new(c + m @ Vector((rr * ca, rr * sa, z)))) rings.append(ring) n = len(profile) last = n - 1 if solid else n for i in range(segs): r0, r1 = rings[i], rings[(i + 1) % segs] for j in range(last): k = (j + 1) % n f = bm.faces.new((r0[j], r1[j], r1[k], r0[k])) f.material_index = seg_mats[j] if seg_mats else mat_idx if solid: f0 = bm.faces.new([rings[i][0] for i in reversed(range(segs))]) f1 = bm.faces.new([rings[i][n - 1] for i in range(segs)]) f0.material_index = cap_mats[0] if cap_mats else mat_idx f1.material_index = cap_mats[1] if cap_mats else mat_idx return [v for ring in rings for v in ring] def add_tube(bm, pts, radius, sides, mat_idx, phase=0.0): """Capped round bar swept along a polyline (parallel-transport frames).""" pts = [Vector(p) for p in pts] tans = [] for i in range(len(pts)): a = pts[max(i - 1, 0)] b = pts[min(i + 1, len(pts) - 1)] tans.append((b - a).normalized()) ref = Vector((1.0, 0.0, 0.0)) if abs(tans[0].x) < 0.9 else Vector((0.0, 0.0, 1.0)) nrm = (ref - tans[0] * ref.dot(tans[0])).normalized() rings = [] for p, t in zip(pts, tans): nrm = (nrm - t * nrm.dot(t)).normalized() bi = t.cross(nrm) rings.append([ bm.verts.new(p + radius * (nrm * math.cos(phase + 2.0 * math.pi * k / sides) + bi * math.sin(phase + 2.0 * math.pi * k / sides))) for k in range(sides) ]) faces = [] for r0, r1 in zip(rings, rings[1:]): for k in range(sides): m = (k + 1) % sides faces.append(bm.faces.new((r0[k], r0[m], r1[m], r1[k]))) faces.append(bm.faces.new(tuple(reversed(rings[0])))) faces.append(bm.faces.new(tuple(rings[-1]))) _mark(faces, mat_idx) return [v for ring in rings for v in ring] def add_ring(bm, center, axis, r_major, r_minor, segs, sides, mat_idx, phase=0.0): """Closed torus about ``axis`` through ``center``.""" center = Vector(center) axis = Vector(axis).normalized() ref = Vector((0.0, 0.0, 1.0)) if abs(axis.z) < 0.9 else Vector((1.0, 0.0, 0.0)) u = axis.cross(ref).normalized() w = axis.cross(u) rings = [] for i in range(segs): a = phase + 2.0 * math.pi * i / segs radial = u * math.cos(a) + w * math.sin(a) c = center + radial * r_major rings.append([ bm.verts.new(c + r_minor * (radial * math.cos(2.0 * math.pi * k / sides) + axis * math.sin(2.0 * math.pi * k / sides))) for k in range(sides) ]) faces = [] for i in range(segs): r0, r1 = rings[i], rings[(i + 1) % segs] for k in range(sides): m = (k + 1) % sides faces.append(bm.faces.new((r0[k], r0[m], r1[m], r1[k]))) _mark(faces, mat_idx) return [v for ring in rings for v in ring] def hull2d(pts): """Convex hull, counter-clockwise (monotone chain).""" pts = sorted(set((round(x, 9), round(z, 9)) for x, z in pts)) def cross(o, a, b): return (a[0] - o[0]) * (b[1] - o[1]) - (a[1] - o[1]) * (b[0] - o[0]) lower, upper = [], [] for p in pts: while len(lower) >= 2 and cross(lower[-2], lower[-1], p) <= 1e-12: lower.pop() lower.append(p) for p in reversed(pts): while len(upper) >= 2 and cross(upper[-2], upper[-1], p) <= 1e-12: upper.pop() upper.append(p) return lower[:-1] + upper[:-1] def lug_outline(circles, extra=(), n=20): """Hull of circles [(x, z, r)] plus loose points: a cast knuckle plate.""" pts = list(extra) for x, z, r in circles: for k in range(n): a = 2.0 * math.pi * (k + 0.5) / n pts.append((x + r * math.cos(a), z + r * math.sin(a))) return hull2d(pts) def add_plate_y(bm, outline, y0, y1, mat_idx): """Convex XZ outline extruded from y0 to y1; n-gon caps (triangulated after the chamfer pass).""" a = [bm.verts.new((x, y0, z)) for x, z in outline] b = [bm.verts.new((x, y1, z)) for x, z in outline] n = len(outline) faces = [bm.faces.new((a[i], b[i], b[(i + 1) % n], a[(i + 1) % n])) for i in range(n)] faces.append(bm.faces.new(tuple(reversed(a)))) faces.append(bm.faces.new(tuple(b))) _mark(faces, mat_idx) return a + b def rrect_loop(inset, n_corner): """Rounded-square loop at an inset from the base's outer edge.""" h = BASE_HALF - inset r = max(BASE_RC - inset, BASE_RC_MIN) pts = [] for k, (sx, sy) in enumerate(((1, 1), (-1, 1), (-1, -1), (1, -1))): cx, cy = sx * (h - r), sy * (h - r) a0 = 0.5 * math.pi * k for s in range(n_corner + 1): a = a0 + 0.5 * math.pi * s / n_corner pts.append((cx + r * math.cos(a), cy + r * math.sin(a))) return pts def offset_polyline(pts, t, sign): """Miter offset of a 2D polyline by ``t`` toward the side given by the segment normal ``sign * (dz, -dx)``.""" def nrm(p, q): dx, dz = q[0] - p[0], q[1] - p[1] ln = math.hypot(dx, dz) return (sign * dz / ln, -sign * dx / ln) out = [] for i, p in enumerate(pts): ns = [] if i > 0: ns.append(nrm(pts[i - 1], p)) if i < len(pts) - 1: ns.append(nrm(p, pts[i + 1])) nx = sum(n[0] for n in ns) nz = sum(n[1] for n in ns) ln = math.hypot(nx, nz) nx, nz = nx / ln, nz / ln k = t / max(nx * ns[0][0] + nz * ns[0][1], 0.2) out.append((p[0] + nx * k, p[1] + nz * k)) return out def add_base(bm, hollow): """The stepped base: one loft of rounded-square loops. Solid, it is a cast block. Hollow, it is a pressed-steel shell HOLLOW_WALL thick.""" if hollow: # the top tread's continuation sets the miter at the last point ext = BASE_PROFILE + [(BASE_HALF, BASE_TOP)] inner = offset_polyline(ext, HOLLOW_WALL, 1.0)[:-1] # the first inner point slides down the bottom chamfer's offset to z = 0 d0, z0 = inner[0] dx, dz = BASE_PROFILE[1][0] - BASE_PROFILE[0][0], BASE_PROFILE[1][1] - BASE_PROFILE[0][1] inner[0] = (d0 - dx * (z0 / dz), 0.0) profile = list(reversed(inner)) + BASE_PROFILE else: profile = list(BASE_PROFILE) loops = [(rrect_loop(d, BASE_CORNER_SEGS), z) for d, z in profile] rings = [[bm.verts.new((x, y, z)) for x, y in loop] for loop, z in loops] n = len(rings[0]) faces = [] for r0, r1 in zip(rings, rings[1:]): for k in range(n): m = (k + 1) % n faces.append(bm.faces.new((r0[k], r0[m], r1[m], r1[k]))) faces.append(bm.faces.new(tuple(reversed(rings[0])))) faces.append(bm.faces.new(tuple(rings[-1]))) _mark(faces, ENAMEL_IDX) def pin_profile(y_neg, y_pos, shaft_r, head_r, neg_head=True, pos_head=True): """Solid Y-lathe profile of a pin or bar: dome heads whose undersides sit at y_neg / y_pos, or a plain chamfered end there.""" p = [] if neg_head: p += [(head_r * 0.33, y_neg - 0.0026), (head_r * 0.74, y_neg - 0.0020), (head_r * 0.96, y_neg - 0.0009), (head_r, y_neg), (shaft_r, y_neg)] else: p += [(shaft_r * 0.75, y_neg), (shaft_r, y_neg + 0.0004)] if pos_head: p += [(shaft_r, y_pos), (head_r, y_pos), (head_r * 0.96, y_pos + 0.0009), (head_r * 0.74, y_pos + 0.0020), (head_r * 0.33, y_pos + 0.0026)] else: p += [(shaft_r, y_pos - 0.0004), (shaft_r * 0.75, y_pos)] return p def add_y_lathe(bm, xz, profile, segs, mat_idx, rot=Y_UP, phase=0.0, rmod=None): return add_lathe(bm, profile, segs, mat_idx, center=v3(xz), rot=rot, phase=phase, solid=True, rmod=rmod) def add_knob(bm, xz, side): """Knurled chrome tension knob on the ``side`` (-1 / +1) cheek face.""" y0 = CHEEK_OUT - KNOB_BITE prof = [(0.0040, y0), (KNOB_R - 0.0010, y0), (KNOB_R, y0 + 0.0010), (KNOB_R, y0 + KNOB_W - 0.0015), (KNOB_R - 0.0012, y0 + KNOB_W), (0.0085, y0 + KNOB_W + 0.0004), (0.0050, y0 + KNOB_W + 0.0022), (0.0020, y0 + KNOB_W + 0.0028)] knurl = {2, 3} def rmod(i, j): return 0.92 if (j in knurl and i % 2) else 1.0 rot = Y_UP if side > 0 else Y_DOWN return add_lathe(bm, prof, 2 * KNOB_RIDGES, STEEL_IDX, center=v3(xz), rot=rot, solid=True, rmod=rmod) def add_cheek_pair(bm, circles, extra, bosses, bevel_verts): """Two knuckle cheeks (one each side of the arm) with a cast boss at every pin station on each cheek's outer face; station k's boss stands STATION_STAGGER * k prouder.""" for s in (-1.0, 1.0): trim = FAR_CHEEK_TRIM if s > 0 else 0.0 outline = lug_outline([(x, z, r - trim) for x, z, r in circles], [(x, z + trim) for x, z in extra]) y0, y1 = sorted((s * CHEEK_IN, s * CHEEK_OUT)) bevel_verts += add_plate_y(bm, outline, y0, y1, ENAMEL_IDX) for k, xz in enumerate(bosses): yb0 = CHEEK_OUT - BOSS_BITE - 0.5 * STATION_STAGGER * k yb1 = CHEEK_OUT + BOSS_PROUD + STATION_STAGGER * k prof = [(BOSS_R, yb0), (BOSS_R, yb1 - 0.0005), (BOSS_R - 0.0005, yb1)] add_y_lathe(bm, xz, prof, 16, ENAMEL_IDX, rot=Y_UP if s > 0 else Y_DOWN, phase=math.pi / 20.0 if s > 0 else 0.0) def add_eye(bm, xz, yc, k, half=EYE_HALF, phase=0.0): half -= STATION_STAGGER * k prof = [(EYE_R - 0.0008, yc - half), (EYE_R, yc - half + 0.0008), (EYE_R, yc + half - 0.0008), (EYE_R - 0.0008, yc + half)] add_y_lathe(bm, xz, prof, 16, ENAMEL_IDX, phase=phase) def add_rod(bm, p, q, y, phase): u = (Vector(q) - Vector(p)).normalized() a = Vector(p) + u * ROD_END b = Vector(q) - u * ROD_END add_tube(bm, [v3(a, y), v3(b, y)], ROD_R, 12, ENAMEL_IDX, phase=phase) def add_pin(bm, xz, k, knob_side=0, offset=0.0): """Rivet-style pin through both cheeks; a knob pin ends inside its knob. Its heads bear on station k's bosses.""" y_head = CHEEK_OUT + BOSS_PROUD + STATION_STAGGER * k - PIN_HEAD_BITE x = (xz[0] + offset, xz[1]) if knob_side < 0: prof = pin_profile(-(CHEEK_OUT + 0.006), y_head, PIN_R, PIN_HEAD_R, neg_head=False, pos_head=True) else: prof = pin_profile(-y_head, y_head, PIN_R, PIN_HEAD_R) add_y_lathe(bm, x, prof, 12, STEEL_IDX) def add_bar(bm, xz, y_neg, y_pos, neg_head=True, pos_head=True): prof = pin_profile(y_neg, y_pos, BAR_R, BAR_R + 0.0011, neg_head, pos_head) add_y_lathe(bm, xz, prof, 10, STEEL_IDX) def add_spring(bm, pa, pb, y, unhook=0.0): """Close-wound extension spring: a looped end hung on each anchor bar (a torus threaded across the bar), and one swept wire from loop to loop.""" a3 = v3(pa, y) b3 = v3(pb, y) d = (b3 - a3).normalized() b3 = b3 - d * unhook ax = Vector((0.0, 1.0, 0.0)) for c in (a3, b3): add_ring(bm, c, ax, HOOK_MAJOR, HOOK_MINOR, 10, 4, STEEL_IDX, phase=0.1) e2 = d.cross(ax).normalized() length = (b3 - a3).length s0 = HOOK_MAJOR + TAIL s1 = length - HOOK_MAJOR - TAIL lead = 0.004 turns = max(1, round((s1 - s0 - 2.0 * lead) / PITCH)) pitch = (s1 - s0 - 2.0 * lead) / turns path = [a3 + d * (HOOK_MAJOR - 0.0008), a3 + d * s0] n = turns * STEPS_PER_TURN for i in range(n + 1): th = 2.0 * math.pi * i / STEPS_PER_TURN s = s0 + lead + pitch * i / STEPS_PER_TURN path.append(a3 + d * s + COIL_R * (ax * math.cos(th) + e2 * math.sin(th))) path += [a3 + d * s1, b3 - d * (HOOK_MAJOR - 0.0008)] add_tube(bm, path, WIRE_R, 5, STEEL_IDX) def catmull(pts, per=6): pts = [Vector(p) for p in pts] ext = [pts[0] * 2.0 - pts[1]] + pts + [pts[-1] * 2.0 - pts[-2]] out = [] for i in range(1, len(ext) - 2): p0, p1, p2, p3 = ext[i - 1], ext[i], ext[i + 1], ext[i + 2] for k in range(per): t = k / per out.append(0.5 * ((2.0 * p1) + (-p0 + p2) * t + (2.0 * p0 - 5.0 * p1 + 4.0 * p2 - p3) * t * t + (-p0 + 3.0 * p1 - 3.0 * p2 + p3) * t * t * t)) out.append(pts[-1]) return out def arm_stations(): """Every named station of the linkage in the XZ plane.""" b1 = Vector(PIVOT) o = LINK_LEN * Vector((math.cos(math.radians(LINK_DEG)), math.sin(math.radians(LINK_DEG)))) u1 = Vector((math.cos(math.radians(ARM1_DEG)), math.sin(math.radians(ARM1_DEG)))) u2 = Vector((math.cos(math.radians(ARM2_DEG)), math.sin(math.radians(ARM2_DEG)))) e1 = b1 + u1 * ARM1_LEN h1 = e1 + u2 * ARM2_LEN s = h1 + Vector(SHADE_PIVOT) a = Vector((math.cos(math.radians(SHADE_DEG)), math.sin(math.radians(SHADE_DEG)))) p = Vector((-a.y, a.x)) cb = s - a * SHADE_STEM_Z - p * SHADE_STEM_OUT return { "b1": b1, "b2": b1 + o, "e1": e1, "e2": e1 + o, "h1": h1, "h2": h1 + o, "s": s, "u1": u1, "u2": u2, "o": o, "a": a, "p": p, "cb": cb, "bar0": b1 + Vector(BASE_ANCHOR), "bar1": b1 + u1 * ARM1_ANCHOR, "bar2": e1 + Vector(ELBOW_ANCHOR), "bar3": e1 + u2 * ARM2_ANCHOR, } def shade_frame(st): a3 = v3(st["a"]) ey = Vector((0.0, 1.0, 0.0)) ex = ey.cross(a3) return Matrix((ex, ey, a3)).transposed() def triangulate_ngons(bm): faces = [f for f in bm.faces if len(f.verts) > 4] if faces: bmesh.ops.triangulate(bm, faces=faces) def pack_uvs(bm, margin=0.08): uv = bm.loops.layers.uv.new("UVMap") faces = list(bm.faces) n = len(faces) cols = max(1, math.ceil(math.sqrt(n))) rows = max(1, math.ceil(n / cols)) cell_w = 1.0 / cols cell_h = 1.0 / rows pad_u = margin * cell_w * 0.5 pad_v = margin * cell_h * 0.5 usable_w = cell_w - 2.0 * pad_u usable_h = cell_h - 2.0 * pad_v for i, face in enumerate(faces): col = i % cols row = i // cols nrm = face.normal ax, ay, az = abs(nrm.x), abs(nrm.y), abs(nrm.z) coords = [] for loop in face.loops: co = loop.vert.co if az >= ax and az >= ay: coords.append((co.x, co.y)) elif ax >= ay: coords.append((co.y, co.z)) else: coords.append((co.x, co.z)) xs = [c[0] for c in coords] ys = [c[1] for c in coords] minx, maxx = min(xs), max(xs) miny, maxy = min(ys), max(ys) dx = max(maxx - minx, 1e-8) dy = max(maxy - miny, 1e-8) origin_u = col * cell_w + pad_u origin_v = row * cell_h + pad_v for loop, (x, y) in zip(face.loops, coords): loop[uv].uv = ( origin_u + (x - minx) / dx * usable_w, origin_v + (y - miny) / dy * usable_h, ) # -------------------------------------------------------------------------- # The lamp # -------------------------------------------------------------------------- def build_lamp_mesh(name, bevel_offset, bevel_segments, offset_pin=False, unhook_spring=False, hollow_base=False, unscrew_bulb=False): st = arm_stations() bm = bmesh.new() try: bevel_verts = [] # base, bearing washer, swivel turret, maker's badge add_base(bm, hollow_base) add_lathe(bm, [(WASHER_R[0], WASHER_Z[0]), (WASHER_R[1] - 0.0008, WASHER_Z[0]), (WASHER_R[1], WASHER_Z[0] + 0.0008), (WASHER_R[1], WASHER_Z[1]), (WASHER_R[0], WASHER_Z[1])], 40, STEEL_IDX) add_lathe(bm, TURRET_PROFILE, 40, ENAMEL_IDX, solid=True) badge = add_lathe(bm, [(0.0110, -0.0006), (0.0110, 0.0005), (0.0098, 0.0012)], 24, STEEL_IDX, center=(0.0, -(BASE_HALF - 0.016), 0.028), rot=Y_DOWN, solid=True) for v in badge: v.co.x *= 1.35 v.co.z = 0.028 + (v.co.z - 0.028) * 0.52 # base knuckle: yoke cheeks rising out of the turret b1, b2, bar0 = st["b1"], st["b2"], st["bar0"] add_cheek_pair(bm, [(b1.x, b1.y, CHEEK_LUG_R), (b2.x, b2.y, CHEEK_LUG_R), (bar0.x, bar0.y, 0.008)], [(-0.013, TURRET_TOP - 0.005), (0.013, TURRET_TOP - 0.005)], [b1, b2], bevel_verts) # lower section: two rods, parallel by the link offset e1, e2, bar2 = st["e1"], st["e2"], st["bar2"] # (rod B's facets turned half a step so the parallel pair's never # share a plane) for k, (p, q) in enumerate(((b1, e1), (b2, e2))): add_eye(bm, p, -ROD_Y, k) add_eye(bm, q, -ROD_Y, k) add_rod(bm, p, q, -ROD_Y, math.pi / 12.0 * (1 - k)) # elbow knuckle add_cheek_pair(bm, [(e1.x, e1.y, CHEEK_LUG_R), (e2.x, e2.y, CHEEK_LUG_R), (bar2.x, bar2.y, 0.008)], [], [e1, e2], bevel_verts) # upper section h1, h2, s = st["h1"], st["h2"], st["s"] for k, (p, q) in enumerate(((e1, h1), (e2, h2))): add_eye(bm, p, ROD_Y, k, phase=math.pi / 16.0) add_eye(bm, q, ROD_Y, k) add_rod(bm, p, q, ROD_Y, math.pi / 12.0 * (1 - k)) # head knuckle, carrying the shade add_cheek_pair(bm, [(h1.x, h1.y, CHEEK_LUG_R), (h2.x, h2.y, CHEEK_LUG_R), (s.x, s.y, CHEEK_LUG_R)], [], [h1, h2, s], bevel_verts) # pins: knobs on the base, elbow and shade pins, rivets elsewhere for xz, k, knob in ((b1, 0, -1), (b2, 1, 0), (e1, 0, -1), (e2, 1, 0), (h1, 0, 0), (h2, 1, 0), (s, 2, -1)): off = OFFSET_PIN if (offset_pin and xz is e1) else 0.0 add_pin(bm, xz, k, knob_side=knob, offset=off) if knob: add_knob(bm, xz, knob) # spring bars: through the yoke, through lower rod A, through the # elbow cheeks, into upper rod A bar1, bar3 = st["bar1"], st["bar3"] add_bar(bm, bar0, -BAR_HEAD_Y, BAR_HEAD_Y) add_bar(bm, bar1, -BAR_HEAD_Y, BAR_HEAD_Y) add_bar(bm, bar2, -BAR_HEAD_Y, CHEEK_IN + 0.0015, pos_head=False) add_bar(bm, bar3, -BAR_HEAD_Y, ROD_Y + 0.0022, pos_head=False) # springs: a pair on the base section, one on the upper section add_spring(bm, bar0, bar1, -SPRING_Y, unhook=UNHOOK if unhook_spring else 0.0) add_spring(bm, bar0, bar1, SPRING_Y) add_spring(bm, bar2, bar3, -SPRING_Y) # --- the shade (its own frame: local Z down the shade axis) a3 = v3(st["a"]) p3 = v3(st["p"]) cb = v3(st["cb"]) rot = shade_frame(st) inner = offset_polyline(SHADE_OUTER, SHADE_T, -1.0) prof = SHADE_OUTER + list(reversed(inner)) n_out = len(SHADE_OUTER) seg_mats = [ENAMEL_IDX] * (n_out - 1) + [REFLECTOR_IDX] * (len(prof) - n_out) add_lathe(bm, prof, SHADE_SEGS, ENAMEL_IDX, center=cb, rot=rot, solid=True, seg_mats=seg_mats, cap_mats=(ENAMEL_IDX, REFLECTOR_IDX)) lip_r = 0.5 * (SHADE_OUTER[-1][0] + inner[-1][0]) lip_z = 0.5 * (SHADE_OUTER[-1][1] + inner[-1][1]) add_ring(bm, cb + a3 * lip_z, a3, lip_r, RIM_BEAD_R, SHADE_SEGS, 8, ENAMEL_IDX) # chrome band over the cowl step z0, z1 = BAND_Z add_lathe(bm, [(0.0300, z0), (0.0340, z0), (0.0352, z0 + 0.0012), (0.0356, z1 - 0.0012), (0.0346, z1), (0.0300, z1)], SHADE_SEGS, STEEL_IDX, center=cb, rot=rot) # bakelite socket, ribbed screw cap, lamp add_lathe(bm, [(0.0150, 0.0006), (0.0165, 0.0020), (0.0165, 0.0280), (0.0150, 0.0300)], 32, BAKELITE_IDX, center=cb, rot=rot, solid=True) screw = [(0.0118, 0.0270)] for k in range(6): z = 0.0290 + 0.0025 * k screw += [(0.0132, z), (0.0124, z + 0.0012)] screw += [(0.0120, 0.0445)] lamp_c = cb + a3 * (UNSCREW if unscrew_bulb else 0.0) add_lathe(bm, screw, 32, STEEL_IDX, center=lamp_c, rot=rot, solid=True) glass = [(0.0112, 0.0430), (0.0120, 0.0460), (0.0135, 0.0520), (0.0200, 0.0660), (0.0268, 0.0820), (0.0298, 0.0980), (0.0292, 0.1120), (0.0245, 0.1260), (0.0160, 0.1340), (0.0060, 0.1375)] add_lathe(bm, glass, 32, BULB_IDX, center=lamp_c, rot=rot, solid=True) # push switch on the cowl, facing the knob side sw = cb + a3 * SWITCH_Z + Vector((0.0, -0.031, 0.0)) add_lathe(bm, [(0.0080, -0.0020), (0.0085, 0.0000), (0.0085, 0.0080), (0.0075, 0.0092)], 22, BAKELITE_IDX, center=sw, rot=Y_DOWN, solid=True) add_lathe(bm, [(0.0045, 0.0080), (0.0045, 0.0118), (0.0034, 0.0128), (0.0015, 0.0132)], 20, BAKELITE_IDX, center=sw, rot=Y_DOWN, solid=True) # the shade eye between the head cheeks, on a stem from the cowl add_eye(bm, s, 0.0, 2, half=CHEEK_IN - 0.0006) foot = cb + a3 * SHADE_STEM_Z + p3 * (SHADE_OUTER[3][0] - STEM_BITE) # the stem bites the cowl by STEM_BITE add_tube(bm, [foot, v3(s)], STEM_R, 12, STEEL_IDX) # the flex: gland on the shade's back cap, draped down rod B of each # section (sagging under its own weight), into a grommet on the base add_lathe(bm, [(FLEX_R - 0.0002, -0.0004), (0.0055, -0.0004), (0.0058, 0.0030), (0.0042, 0.0075), (FLEX_R - 0.0002, 0.0075)], 16, RUBBER_IDX, center=cb, rot=shade_frame(st) @ Matrix.Rotation(math.pi, 3, "X")) fe = Vector((FLEX_ENTRY[0], FLEX_Y, BASE_TOP)) add_lathe(bm, [(FLEX_R - 0.0002, -0.0020), (0.0050, -0.0020), (0.0054, 0.0012), (0.0044, 0.0034), (FLEX_R - 0.0002, 0.0034)], 16, RUBBER_IDX, center=fe) def sagged(p, q, sag, n=5): u = (q - p).normalized() g = Vector((0.0, -1.0)) - u * u.dot(Vector((0.0, -1.0))) g = g.normalized() if g.length > 1e-6 else Vector((0.0, -1.0)) out = [] for i in range(n): t = 0.08 + 0.84 * i / (n - 1) w = p + (q - p) * t + g * (sag * math.sin(math.pi * t)) out.append(Vector((w.x, FLEX_Y, w.y))) return out fpts = [cb + a3 * 0.0004, cb - a3 * 0.012, cb - a3 * 0.022 + Vector((0.0, 0.6 * FLEX_Y, 0.0)), Vector((h2.x + 0.004, FLEX_Y, h2.y - 0.004))] fpts += sagged(h2, e2, FLEX_SAG[1]) fpts += [Vector((e2.x - 0.006, FLEX_Y, e2.y + 0.010))] fpts += sagged(e2, b2, FLEX_SAG[0]) fpts += [Vector((b2.x - 0.012, FLEX_Y, b2.y + 0.002)), Vector((-0.052, FLEX_Y, 0.100)), Vector((-0.056, FLEX_Y, 0.075)), Vector((FLEX_ENTRY[0] - 0.003, FLEX_Y, BASE_TOP + 0.012)), fe + Vector((0.0, 0.0, 0.003)), fe - Vector((0.0, 0.0, 0.003))] add_tube(bm, catmull(fpts, per=4), FLEX_R, 8, RUBBER_IDX) # the cable: through a grommet in the rear riser, over the desk, to a plug cpts = catmull(CABLE_PTS, per=6) # the spline overshoots between floor points; the cable rests on the desk for p in cpts: p.z = max(p.z, CABLE_Z) add_tube(bm, cpts, CABLE_R, 10, RUBBER_IDX) g = Vector(CABLE_PTS[1]) add_lathe(bm, [(CABLE_R - 0.0002, -0.0020), (0.0056, -0.0020), (0.0060, 0.0012), (0.0050, 0.0042), (CABLE_R - 0.0002, 0.0042)], 20, RUBBER_IDX, center=(-BASE_HALF, g.y, g.z), rot=X_DOWN) end = cpts[-1] dirn = (cpts[-1] - cpts[-3]) dirn.z = 0.0 dirn.normalize() yaw = math.atan2(dirn.y, dirn.x) rz = Matrix.Rotation(yaw, 3, "Z") # strain relief along the cable's last run srot = rz @ Matrix(((0.0, 0.0, 1.0), (0.0, 1.0, 0.0), (-1.0, 0.0, 0.0))) add_lathe(bm, [(CABLE_R - 0.0002, -0.0100), (0.0040, -0.0060), (0.0062, 0.0000), (0.0062, 0.0050), (CABLE_R - 0.0002, 0.0050)], 20, RUBBER_IDX, center=end, rot=srot) lx, ly, lz = PLUG_SIZE pc = end + dirn * (0.0040 + lx / 2.0) pc.z = lz / 2.0 body = add_box(bm, (0.0, 0.0, 0.0), (lx, ly, lz), BAKELITE_IDX) for v in body: v.co = pc + rz @ v.co bevel_verts += body for side in (-1.0, 1.0): # one prong 0.5 mm longer at both ends, or their caps share planes st_ = PRONG_STAGGER if side > 0 else 0.0 q0 = pc + rz @ Vector((lx / 2.0 - 0.004 - st_, side * 0.0065, 0.0)) q1 = pc + rz @ Vector((lx / 2.0 + 0.016 + st_, side * 0.0065, 0.0)) add_tube(bm, [q0, q1], 0.0022, 8, STEEL_IDX, phase=math.pi / 8.0 if side > 0 else 0.0) if bevel_offset > 0.0: # Chamfer the cheek plates' and the plug's cap rims, one pass per # material with material= set, over sorted edges (a set of BMEdges # iterates in memory order). for mat_idx, off in ((ENAMEL_IDX, bevel_offset), (BAKELITE_IDX, 2.5 * bevel_offset)): bm.edges.index_update() edges = sorted( {e for v in bevel_verts if v.is_valid for e in v.link_edges if len(e.link_faces) == 2 and all(f.material_index == mat_idx for f in e.link_faces) and e.calc_face_angle() > math.radians(60.0)}, key=lambda e: e.index, ) if edges: bmesh.ops.bevel(bm, geom=edges, offset=off, segments=bevel_segments, profile=0.5, affect="EDGES", clamp_overlap=True, material=mat_idx) bmesh.ops.remove_doubles(bm, verts=list(bm.verts), dist=1e-5) bmesh.ops.dissolve_degenerate(bm, dist=1e-6) triangulate_ngons(bm) zmin = min(v.co.z for v in bm.verts) for v in bm.verts: v.co.z -= zmin if v.co.z < 0.0: v.co.z = 0.0 pack_uvs(bm) bmesh.ops.recalc_face_normals(bm, faces=list(bm.faces)) # Round stock (rods, springs, cable, shade, lamp) is smooth-shaded; # chamfers, knurls and treads stay crisp through sharp edges. for face in bm.faces: face.smooth = True for edge in bm.edges: mats = {f.material_index for f in edge.link_faces} if len(mats) > 1 or not edge.is_manifold or len(edge.link_faces) != 2: edge.smooth = False else: edge.smooth = edge.calc_face_angle() < math.radians(35.0) me = bpy.data.meshes.new(name) bm.to_mesh(me) me.update() finally: bm.free() obj = bpy.data.objects.new(name, me) bpy.context.collection.objects.link(obj) return obj # -------------------------------------------------------------------------- # Materials # -------------------------------------------------------------------------- def principled(name, color, metallic, roughness, roughness_var=0.0, mottle=0.0, noise_scale=14.0, coat=0.0): mat = bpy.data.materials.new(name) mat.use_nodes = True nt = mat.node_tree bsdf = nt.nodes["Principled BSDF"] bsdf.inputs["Base Color"].default_value = color bsdf.inputs["Metallic"].default_value = metallic bsdf.inputs["Roughness"].default_value = roughness if coat > 0.0 and "Coat Weight" in bsdf.inputs: bsdf.inputs["Coat Weight"].default_value = coat bsdf.inputs["Coat Roughness"].default_value = 0.08 if roughness_var > 0.0 or mottle > 0.0: coord = nt.nodes.new("ShaderNodeTexCoord") noise = nt.nodes.new("ShaderNodeTexNoise") noise.inputs["Scale"].default_value = noise_scale noise.inputs["Detail"].default_value = 6.0 nt.links.new(coord.outputs["Object"], noise.inputs["Vector"]) if roughness_var > 0.0: ramp = nt.nodes.new("ShaderNodeValToRGB") lo = max(0.05, roughness - roughness_var) hi = min(0.95, roughness + roughness_var) ramp.color_ramp.elements[0].position = 0.30 ramp.color_ramp.elements[0].color = (lo, lo, lo, 1.0) ramp.color_ramp.elements[1].position = 0.70 ramp.color_ramp.elements[1].color = (hi, hi, hi, 1.0) nt.links.new(noise.outputs["Fac"], ramp.inputs["Fac"]) nt.links.new(ramp.outputs["Color"], bsdf.inputs["Roughness"]) if mottle > 0.0: cramp = nt.nodes.new("ShaderNodeValToRGB") dark = tuple(c * (1.0 - mottle) for c in color[:3]) + (1.0,) cramp.color_ramp.elements[0].position = 0.35 cramp.color_ramp.elements[0].color = dark cramp.color_ramp.elements[1].position = 0.75 cramp.color_ramp.elements[1].color = color nt.links.new(noise.outputs["Fac"], cramp.inputs["Fac"]) nt.links.new(cramp.outputs["Color"], bsdf.inputs["Base Color"]) return mat def lamp_materials(): """(enamel, steel, bulb, rubber, reflector, bakelite): shared by the check and the render. Stove enamel is a deep glossy red with a clear coat; the springs, pins and knobs are bright plated steel; the reflector is white enamel; the lamp glows warm; cable and grommet are matte black rubber; the socket, switch and plug are near-black bakelite. """ enamel = principled("LampEnamel", (0.42, 0.030, 0.026, 1.0), 0.0, 0.30, roughness_var=0.10, mottle=0.10, noise_scale=40.0, coat=0.35) steel = principled("LampSteel", (0.80, 0.80, 0.82, 1.0), 1.0, 0.34, roughness_var=0.08, noise_scale=60.0) bulb = principled("LampBulb", (0.95, 0.92, 0.84, 1.0), 0.0, 0.18) b = bulb.node_tree.nodes["Principled BSDF"] for key in ("Emission Color", "Emission"): if key in b.inputs: b.inputs[key].default_value = (1.0, 0.80, 0.52, 1.0) break if "Emission Strength" in b.inputs: b.inputs["Emission Strength"].default_value = 2.5 rubber = principled("LampRubber", (0.016, 0.016, 0.018, 1.0), 0.0, 0.58, roughness_var=0.08, noise_scale=80.0) reflector = principled("LampReflector", (0.80, 0.78, 0.72, 1.0), 0.0, 0.38, roughness_var=0.06, mottle=0.04, noise_scale=30.0) bakelite = principled("LampBakelite", (0.030, 0.019, 0.013, 1.0), 0.0, 0.26, roughness_var=0.06, mottle=0.2, noise_scale=90.0) return enamel, steel, bulb, rubber, reflector, bakelite def assign_slots(obj, wanted): # Do not materials.clear() — that resets polygon material_index to 0. mats = obj.data.materials for i, mat in enumerate(wanted): if i < len(mats): mats[i] = mat else: mats.append(mat) # -------------------------------------------------------------------------- # Audits # -------------------------------------------------------------------------- def world_bbox(obj): corners = [obj.matrix_world @ Vector(c) for c in obj.bound_box] xs = [c.x for c in corners] ys = [c.y for c in corners] zs = [c.z for c in corners] return (min(xs), min(ys), min(zs), max(xs), max(ys), max(zs)) def uv_stats(mesh): uv = mesh.uv_layers.active if uv is None: return 0.0, 0.0, 1.0, 1.0, 0, 1.0 data = uv.data us = [loop.uv[0] for loop in data] vs = [loop.uv[1] for loop in data] aabbs = [] for poly in mesh.polygons: pu = [data[i].uv[0] for i in poly.loop_indices] pv = [data[i].uv[1] for i in poly.loop_indices] aabbs.append((min(pu), min(pv), max(pu), max(pv))) # sweep along u: only pairs whose u spans overlap are compared aabbs.sort() overlap = 0.0 for i, a in enumerate(aabbs): for j in range(i + 1, len(aabbs)): b = aabbs[j] if b[0] >= a[2]: break x0 = max(a[0], b[0]) y0 = max(a[1], b[1]) x1 = min(a[2], b[2]) y1 = min(a[3], b[3]) overlap += max(0.0, x1 - x0) * max(0.0, y1 - y0) return min(us), min(vs), max(us), max(vs), overlap, len(aabbs) def face_area(me, poly): vs = [me.vertices[i].co for i in poly.vertices] if len(vs) < 3: return 0.0 v0 = vs[0] area = 0.0 for i in range(1, len(vs) - 1): area += (vs[i] - v0).cross(vs[i + 1] - v0).length * 0.5 return area def hygiene_audit(me): # Combinatorics match examples/mesh-hygiene-audit.audit (copied, not imported). ngons = sum(1 for p in me.polygons if len(p.vertices) > 4) zero_area = sum(1 for p in me.polygons if face_area(me, p) <= AREA_EPS) bm = bmesh.new() try: bm.from_mesh(me) loose_v = sum(1 for v in bm.verts if len(v.link_edges) == 0) loose_e = sum(1 for e in bm.edges if len(e.link_faces) == 0) nonman = sum(1 for e in bm.edges if not e.is_manifold) ret = bmesh.ops.find_doubles(bm, verts=list(bm.verts), dist=DOUBLES_EPS) doubles = len(ret.get("targetmap") or {}) finally: bm.free() return {"ngons": ngons, "loose_v": loose_v, "loose_e": loose_e, "nonman": nonman, "zero_area": zero_area, "doubles": doubles} def shells(me): neighbors = [[] for _ in range(len(me.vertices))] for edge in me.edges: a, b = edge.vertices neighbors[a].append(b) neighbors[b].append(a) seen = [False] * len(me.vertices) groups = [] for start in range(len(me.vertices)): if seen[start]: continue seen[start] = True stack = [start] group = [] while stack: cur = stack.pop() group.append(cur) for nxt in neighbors[cur]: if not seen[nxt]: seen[nxt] = True stack.append(nxt) groups.append(group) return groups def zfight_pairs(me, groups): """Coplanar face pairs from *different shells* (copied from showcase/grindstone).""" owner = {} for si, g in enumerate(groups): for vi in g: owner[vi] = si faces = [(p.normal.copy(), p.center.copy(), owner.get(p.vertices[0], -1)) for p in me.polygons] kd = KDTree(len(faces)) for i, (_n, c, _s) in enumerate(faces): kd.insert(c, i) kd.balance() hits = 0 for i, (ni, ci, si) in enumerate(faces): for _co, j, _d in kd.find_range(ci, COPLANAR_CENTRE_MAX): if j <= i: continue nj, cj, sj = faces[j] if si == sj: continue if abs(abs(ni.dot(nj)) - 1.0) > COPLANAR_NORMAL_EPS: continue if abs(ni.dot(cj - ci)) > COPLANAR_PLANE_EPS: continue hits += 1 return hits def shell_polys(me, groups): owner = [0] * len(me.vertices) for si, g in enumerate(groups): for vi in g: owner[vi] = si polys = [[] for _ in groups] for p in me.polygons: polys[owner[p.vertices[0]]].append(p) return polys class Shell: def __init__(self, me, idx, verts, polys): self.idx = idx self.verts = verts pts = [me.vertices[i].co.copy() for i in verts] self.pts = pts self.lo = Vector((min(p.x for p in pts), min(p.y for p in pts), min(p.z for p in pts))) self.hi = Vector((max(p.x for p in pts), max(p.y for p in pts), max(p.z for p in pts))) self.size = self.hi - self.lo self.centre = (self.lo + self.hi) * 0.5 self.mean = sum(pts, Vector()) / len(pts) mats = {} for p in polys: mats[p.material_index] = mats.get(p.material_index, 0) + 1 self.mat = max(mats, key=mats.get) if mats else None remap = {vi: n for n, vi in enumerate(verts)} self.tri_idx = [[remap[v] for v in p.vertices] for p in polys] self.tree = BVHTree.FromPolygons([tuple(p) for p in pts], self.tri_idx) self.polys = polys def pca_axis(pts, largest=True): p = np.array([tuple(v) for v in pts], dtype=np.float64) c = p.mean(axis=0) q = p - c _w, vecs = np.linalg.eigh(q.T @ q) axis = vecs[:, -1] if largest else vecs[:, 0] if axis[1] < 0.0: axis = -axis return c, axis def classify(me): groups = shells(me) polys = shell_polys(me, groups) parts = [Shell(me, i, g, polys[i]) for i, g in enumerate(groups)] out = {"all": parts, "groups": groups} steel = [s for s in parts if s.mat == STEEL_IDX] out["coils"] = [s for s in steel if len(s.verts) > 1000] out["hooks"] = [s for s in steel if s.size.y < 0.003 and max(s.size) < 0.012] out["bars"] = [s for s in steel if s.size.y > 0.042 and max(s.size.x, s.size.z) < 0.008] # above the turret: a plug prong is also a short steel rod out["pins"] = sorted([s for s in steel if 0.020 < s.size.y < 0.038 and max(s.size.x, s.size.z) < 0.011 and s.lo.z > TURRET_TOP], key=lambda s: s.mean.x) out["eyes"] = [s for s in parts if s.mat == ENAMEL_IDX and abs(s.size.x - s.size.z) < 0.0015 and 0.010 < max(s.size.x, s.size.z) < 0.020 and s.size.y < 0.020] enamel = [s for s in parts if s.mat == ENAMEL_IDX and s.lo.z < ZMIN_EPS] out["base"] = sorted(enamel, key=lambda s: -s.size.x * s.size.y)[:1] return out def pin_audit(cls): """Per pin: the XZ offset between its axis and the axis of every eye or boss it passes through, at that eye's own station; whether it spans each one in Y; its tilt off the lamp's normal.""" worst, worst_tilt, matched, not_through = 0.0, 0.0, 0, 0 counts = [] for pin in cls["pins"]: c, axis = pca_axis(pin.pts) tilt = math.degrees(math.acos(min(1.0, abs(float(axis[1]))))) worst_tilt = max(worst_tilt, tilt) n = 0 for e in cls["eyes"]: if math.hypot(e.mean.x - c[0], e.mean.z - c[2]) > PIN_SEARCH: continue n += 1 t = (e.mean.y - c[1]) / axis[1] px, pz = c[0] + axis[0] * t, c[2] + axis[2] * t worst = max(worst, math.hypot(e.mean.x - px, e.mean.z - pz)) if e.lo.y < pin.lo.y - 1e-6 or e.hi.y > pin.hi.y + 1e-6: not_through += 1 counts.append(n) matched += n return {"pins": len(cls["pins"]), "eyes": matched, "counts": counts, "offset": worst, "tilt": worst_tilt, "not_through": not_through} def spring_audit(cls): """Per looped end: distance from its fitted centre to the nearest bar's axis, and whether it sits within that bar's length; per coil, the loops its wire runs into.""" bars = [] for b in cls["bars"]: c, axis = pca_axis(b.pts) bars.append((b, np.asarray(c), np.asarray(axis))) worst = 0.0 off_bar = 0 for h in cls["hooks"]: hc, _ax = pca_axis(h.pts) best, best_bar = 9.0, None for b, c, axis in bars: d = hc - c dist = float(np.linalg.norm(d - (d @ axis) * axis)) if dist < best: best, best_bar = dist, b worst = max(worst, best) if best_bar is None or not (best_bar.lo.y <= hc[1] <= best_bar.hi.y): off_bar += 1 ends = [sum(1 for h in cls["hooks"] if c.tree.overlap(h.tree)) for c in cls["coils"]] return {"coils": len(cls["coils"]), "hooks": len(cls["hooks"]), "bars": len(cls["bars"]), "seat": worst, "off_bar": off_bar, "ends": ends} def shell_mass(s): """Volume and centroid of one closed shell (divergence theorem over a fan triangulation of its faces).""" vol = 0.0 mom = Vector() for tri in s.tri_idx: a = s.pts[tri[0]] for k in range(1, len(tri) - 1): b, c = s.pts[tri[k]], s.pts[tri[k + 1]] v = a.dot(b.cross(c)) / 6.0 vol += v mom += v * (a + b + c) / 4.0 return vol, (mom / vol if abs(vol) > 1e-15 else s.mean) def stance_audit(cls): """Mass centre against the base footprint, base width, and the two arm sections' pin-to-pin lengths, all read off the mesh.""" total = 0.0 mom = Vector() for s in cls["all"]: if s.mat is None: continue vol, cen = shell_mass(s) m = abs(vol) * DENSITY[s.mat] total += m mom += m * cen com = mom / total if not cls["base"]: return None base = cls["base"][0] margin = min(base.hi.x - com.x, com.x - base.lo.x, base.hi.y - com.y, com.y - base.lo.y) pins = [pca_axis(p.pts)[0] for p in cls["pins"]] lens = [] if len(pins) == PIN_COUNT: b2, b1, e2, e1, h2, h1 = pins[:6] def d(p, q): return math.hypot(p[0] - q[0], p[2] - q[2]) lens = [d(e1, b1), d(e2, b2), d(h1, e1), d(h2, e2)] return {"mass": total, "com": com, "margin": margin, "width": (base.size.x, base.size.y), "lens": lens} def connected_components(cls): parts = cls["all"] n = len(parts) parent = list(range(n)) def find(i): while parent[i] != i: parent[i] = parent[parent[i]] i = parent[i] return i for i in range(n): a = parts[i] for j in range(i + 1, n): b = parts[j] if (a.lo.x > b.hi.x or b.lo.x > a.hi.x or a.lo.y > b.hi.y or b.lo.y > a.hi.y or a.lo.z > b.hi.z or b.lo.z > a.hi.z): continue if find(i) == find(j): continue if a.tree.overlap(b.tree): parent[find(i)] = find(j) roots = {find(i) for i in range(n)} sizes = {} for i in range(n): sizes[find(i)] = sizes.get(find(i), 0) + 1 return len(roots), sorted(sizes.values()) def add_stray_vert(me): bm = bmesh.new() try: bm.from_mesh(me) # inside the envelope, so only the hygiene budget can see it bm.verts.new((0.0, 0.0, 0.2)) bm.to_mesh(me) me.update() finally: bm.free() def make_lod(obj, name, ratio, skip_decimate): mesh = obj.data.copy() lod = bpy.data.objects.new(name, mesh) lod.matrix_world = obj.matrix_world.copy() bpy.context.scene.collection.objects.link(lod) if not skip_decimate and 0.0 < ratio < 1.0: mod = lod.modifiers.new("DecimateBudget", "DECIMATE") mod.decimate_type = "COLLAPSE" mod.ratio = ratio return lod def convex_hull_collider(obj, name): # Duplicated from snippets/convex_hull_collider.py (not a package). mesh = bpy.data.meshes.new(name) bm = bmesh.new() try: bm.from_mesh(obj.data) result = bmesh.ops.convex_hull(bm, input=list(bm.verts)) interior = result.get("geom_interior") or [] unused = result.get("geom_unused") or [] if interior: bmesh.ops.delete(bm, geom=interior, context="VERTS") if unused: bmesh.ops.delete(bm, geom=unused, context="VERTS") bm.to_mesh(mesh) mesh.update() finally: bm.free() collider = bpy.data.objects.new(name, mesh) bpy.context.collection.objects.link(collider) collider.matrix_world = obj.matrix_world.copy() return collider def setup_bake_image(obj, target_mat, size=BAKE_RES): # Adapted from snippets/setup_bake_target_image.py — do not replace slots. if not obj.data.uv_layers: return None, None img = bpy.data.images.new("LampNrm", size, size, alpha=True, float_buffer=False) img.colorspace_settings.name = "Non-Color" nodes = target_mat.node_tree.nodes tex = nodes.new("ShaderNodeTexImage") tex.image = img nodes.active = tex tex.select = True obj.active_material_index = BAKELITE_IDX return img, tex def bake_normal(high, low): # Duplicated from snippets/bake_normal_high_to_low.py (not a package). scene = bpy.context.scene scene.render.engine = "CYCLES" scene.cycles.device = "CPU" scene.cycles.samples = 1 scene.cycles.use_denoising = False for ob in bpy.context.view_layer.objects: ob.select_set(False) high.select_set(True) low.select_set(True) bpy.context.view_layer.objects.active = low return bpy.ops.object.bake( type="NORMAL", use_selected_to_active=True, cage_extrusion=CAGE_EXTRUSION, use_cage=False, normal_space="TANGENT", margin=4, margin_type="ADJACENT_FACES", use_clear=True, target="IMAGE_TEXTURES", ) def export_unity(path, objects): # Duplicated from snippets/export_preset_unity.py (not a package). for ob in bpy.context.view_layer.objects: ob.select_set(False) for ob in objects: ob.select_set(True) bpy.context.view_layer.objects.active = objects[0] bpy.ops.export_scene.gltf( filepath=path, use_selection=True, export_yup=True, export_apply=True, export_draco_mesh_compression_enable=False, export_animations=False, ) def check(skip_decimate, lift_z=False, stray_vert=False, offset_pin=False, unhook_spring=False, hollow_base=False, unscrew_bulb=False): bpy.ops.wm.read_factory_settings(use_empty=True) flags = dict(offset_pin=offset_pin, unhook_spring=unhook_spring, hollow_base=hollow_base, unscrew_bulb=unscrew_bulb) low = build_lamp_mesh("LampLow", bevel_offset=0.0006, bevel_segments=1, **flags) high = build_lamp_mesh("LampHigh", bevel_offset=0.0006, bevel_segments=3, **flags) mats = lamp_materials() assign_slots(low, mats) assign_slots(high, mats) # The bake targets the bakelite: the plug body is where the high mesh's # rounder chamfer differs most from the low. Baked into the enamel, the # thin cheek plates' 1-px UV cells bled a bright arc onto the head knuckle. enamel = mats[BAKELITE_IDX] if stray_vert: add_stray_vert(low.data) if lift_z: for v in low.data.vertices: v.co.z += LIFT_Z low.data.update() none3 = (None, None, None) if low.data is None or len(low.data.polygons) < 6: return (fail("lamp mesh did not build", 3),) + none3 base_tris = triangle_count(low.data) slots = [s for s in low.data.materials if s is not None] nmat = len(slots) distinct_mats = len({id(s) for s in slots}) idx_counts = {} for poly in low.data.polygons: idx_counts[poly.material_index] = idx_counts.get(poly.material_index, 0) + 1 print(f"measured mat_index_counts={dict(sorted(idx_counts.items()))}") u0, v0, u1, v1, overlap, nfaces = uv_stats(low.data) bb = world_bbox(low) size_x, size_y, size_z = bb[3] - bb[0], bb[4] - bb[1], bb[5] - bb[2] hyg = hygiene_audit(low.data) cls = classify(low.data) zf = zfight_pairs(low.data, cls["groups"]) pins = pin_audit(cls) springs = spring_audit(cls) stance = stance_audit(cls) ncomp, comp_sizes = connected_components(cls) img, tex = setup_bake_image(low, enamel) if img is None: return (fail("lamp has no UV layer", 3),) + none3 bake_result = bake_normal(high, low) lod1 = make_lod(low, "LampLOD1", LOD1_TARGET, skip_decimate) lod2 = make_lod(low, "LampLOD2", LOD2_TARGET, skip_decimate) bpy.context.view_layer.update() lod1_tris = evaluated_triangle_count(lod1) lod2_tris = evaluated_triangle_count(lod2) r1 = lod1_tris / base_tris if base_tris else 0.0 r2 = lod2_tris / base_tris if base_tris else 0.0 collider_src = build_lamp_mesh("LampColSrc", bevel_offset=0.0, bevel_segments=1) collider = convex_hull_collider(collider_src, "LampCollider") bpy.data.objects.remove(collider_src, do_unlink=True) col_tris = triangle_count(collider.data) export_path = os.path.join(tempfile.gettempdir(), f"bdt_desk_lamp_{os.getpid()}.glb") if os.path.exists(export_path): os.remove(export_path) export_unity(export_path, [low, collider]) export_size = os.path.getsize(export_path) if os.path.isfile(export_path) else 0 if os.path.isfile(export_path): try: os.remove(export_path) except OSError: pass print(f"blender={tuple(bpy.app.version)} skip_decimate={skip_decimate}") print(f"measured base_tris={base_tris} lod1_tris={lod1_tris} " f"lod2_tris={lod2_tris} r1={r1:.4f} r2={r2:.4f}") print(f"measured nmat={nmat} uv=({u0:.4f},{v0:.4f})-({u1:.4f},{v1:.4f}) " f"overlap={overlap:.6f} nfaces={nfaces}") print(f"measured bbox=({size_x:.4f},{size_y:.4f},{size_z:.4f}) " f"outer={OUTER_SIZE} zmin={bb[2]:.4f} min=({bb[0]:.4f},{bb[1]:.4f})") print(f"measured collider_tris={col_tris} bake={bake_result} " f"bake_has_data={img.has_data} export_bytes={export_size}") print(f"measured hygiene loose_v={hyg['loose_v']} loose_e={hyg['loose_e']} " f"nonman={hyg['nonman']} zero_area={hyg['zero_area']} " f"doubles={hyg['doubles']} ngons={hyg['ngons']} zfight={zf}") print(f"measured shells={len(cls['all'])} pins={pins['pins']} eyes={pins['eyes']} " f"per_pin={pins['counts']} pin_offset={pins['offset']:.6f} " f"pin_tilt_deg={pins['tilt']:.4f} not_through={pins['not_through']}") print(f"measured coils={springs['coils']} hooks={springs['hooks']} bars={springs['bars']} " f"spring_seat={springs['seat']:.6f} off_bar={springs['off_bar']} " f"coil_ends={springs['ends']}") if stance: print(f"measured mass={stance['mass']:.3f}kg com=({stance['com'].x:.4f}," f"{stance['com'].y:.4f},{stance['com'].z:.4f}) margin={stance['margin']:.4f} " f"base_width=({stance['width'][0]:.4f},{stance['width'][1]:.4f}) " f"arm_lens={[round(v, 4) for v in stance['lens']]}") print(f"measured components={ncomp} sizes={comp_sizes[-5:]}") if not (BASE_TRIS_MIN <= base_tris <= BASE_TRIS_MAX): return (fail(f"base tris {base_tris} not in [{BASE_TRIS_MIN}, {BASE_TRIS_MAX}]", 4),) + none3 if nmat != MATERIAL_COUNT or distinct_mats != MATERIAL_COUNT: return (fail(f"material slots {nmat} distinct {distinct_mats} != {MATERIAL_COUNT}", 5),) + none3 floors = ((ENAMEL_IDX, ENAMEL_FACES_MIN, "enamel"), (STEEL_IDX, STEEL_FACES_MIN, "steel"), (BULB_IDX, BULB_FACES_MIN, "bulb"), (RUBBER_IDX, RUBBER_FACES_MIN, "rubber"), (REFLECTOR_IDX, REFLECTOR_FACES_MIN, "reflector"), (BAKELITE_IDX, BAKELITE_FACES_MIN, "bakelite")) for idx, floor, label in floors: if idx_counts.get(idx, 0) < floor: return (fail(f"{label} faces {idx_counts.get(idx, 0)} < {floor}", 5),) + none3 if u0 < -UV_EPS or v0 < -UV_EPS or u1 > 1.0 + UV_EPS or v1 > 1.0 + UV_EPS: return (fail(f"UVs outside 0..1: ({u0:.4f},{v0:.4f})-({u1:.4f},{v1:.4f})", 6),) + none3 if overlap > UV_OVERLAP_MAX: return (fail(f"UV AABB overlap {overlap:.6f} > {UV_OVERLAP_MAX}", 7),) + none3 if (abs(size_x - OUTER_SIZE[0]) > BBOX_TOL or abs(size_y - OUTER_SIZE[1]) > BBOX_TOL or abs(size_z - OUTER_SIZE[2]) > BBOX_TOL): return (fail(f"bbox ({size_x:.4f},{size_y:.4f},{size_z:.4f}) off outer {OUTER_SIZE}", 8),) + none3 if not (LOD1_RATIO_MIN <= r1 <= LOD1_RATIO_MAX): return (fail(f"LOD1 ratio {r1:.4f} not in [{LOD1_RATIO_MIN}, {LOD1_RATIO_MAX}] " "(--skip-decimate is the designed fail)", 9),) + none3 if not (LOD2_RATIO_MIN <= r2 <= LOD2_RATIO_MAX): return (fail(f"LOD2 ratio {r2:.4f} not in [{LOD2_RATIO_MIN}, {LOD2_RATIO_MAX}]", 9),) + none3 if col_tris > COLLIDER_TRIS_MAX: return (fail(f"collider tris {col_tris} > {COLLIDER_TRIS_MAX}", 11),) + none3 if bake_result != {"FINISHED"} or not img.has_data: return (fail(f"bake failed result={bake_result} has_data={img.has_data}", 12),) + none3 if export_size <= 0: return (fail("export file missing or empty", 13),) + none3 if (hyg["loose_v"] or hyg["loose_e"] or hyg["nonman"] or hyg["zero_area"] or hyg["doubles"] or hyg["ngons"] or zf): return (fail(f"hygiene {hyg} zfight={zf}", 15),) + none3 if bb[2] > ZMIN_EPS: return (fail(f"grounded zmin={bb[2]:.5f}", 16),) + none3 if (pins["pins"] != PIN_COUNT or pins["eyes"] != PIN_EYES or min(pins["counts"] or [0]) < 3 or pins["offset"] > PIN_OFFSET_MAX or pins["tilt"] > PIN_TILT_MAX_DEG or pins["not_through"]): return (fail(f"joint pins: {pins['pins']} pins (want {PIN_COUNT}), {pins['eyes']} eyes " f"(want {PIN_EYES}), worst axis offset {pins['offset']:.5f} > " f"{PIN_OFFSET_MAX} or tilt {pins['tilt']:.3f} or " f"{pins['not_through']} not through", 17),) + none3 if (springs["coils"] != SPRING_COUNT or springs["hooks"] != HOOK_COUNT or springs["bars"] != BAR_COUNT or springs["seat"] > SPRING_SEAT_MAX or springs["off_bar"] or any(n != 2 for n in springs["ends"])): return (fail(f"spring seat: {springs}", 18),) + none3 if (stance is None or stance["margin"] < STANCE_MARGIN or any(abs(w - 2.0 * BASE_HALF) > BASE_WIDTH_TOL for w in stance["width"]) or len(stance["lens"]) != 4 or any(abs(v - ARM1_LEN) > ARM_LEN_TOL for v in stance["lens"][:2]) or any(abs(v - ARM2_LEN) > ARM_LEN_TOL for v in stance["lens"][2:])): return (fail(f"stance: mass centre margin {stance and stance['margin']} < " f"{STANCE_MARGIN} or base/arm size off: {stance}", 19),) + none3 if ncomp != 1: return (fail(f"assembly splits into {ncomp} components {comp_sizes}", 20),) + none3 return 0, low, enamel, tex def wire_normal(mat, tex): nt = mat.node_tree bsdf = nt.nodes["Principled BSDF"] nrm = nt.nodes.new("ShaderNodeNormalMap") nrm.inputs["Strength"].default_value = 1.0 nt.links.new(tex.outputs["Color"], nrm.inputs["Color"]) nt.links.new(nrm.outputs["Normal"], bsdf.inputs["Normal"]) def render_still(low, enamel, tex, path, engine): scene = bpy.context.scene wire_normal(enamel, tex) for ob in list(scene.objects): if ob.type == "MESH" and ob != low: ob.hide_render = True ob.hide_viewport = True low.rotation_euler.z = math.radians(HERO_YAW_DEG) bpy.context.view_layer.update() bb = world_bbox(low) centre = Vector((0.5 * (bb[0] + bb[3]), 0.5 * (bb[1] + bb[4]), 0.5 * (bb[2] + bb[5]))) floor_me = bpy.data.meshes.new("Floor") bm = bmesh.new() try: bmesh.ops.create_grid(bm, x_segments=1, y_segments=1, size=60.0) bm.to_mesh(floor_me) finally: bm.free() fmat = bpy.data.materials.new("Floor") fmat.use_nodes = True fb = fmat.node_tree.nodes["Principled BSDF"] fb.inputs["Base Color"].default_value = (0.03, 0.032, 0.037, 1.0) fb.inputs["Roughness"].default_value = 0.7 floor_me.materials.append(fmat) floor = bpy.data.objects.new("Floor", floor_me) scene.collection.objects.link(floor) wall = bpy.data.objects.new("Wall", floor_me.copy()) wall.location = (0.0, centre.y + WALL_Y, 0.0) wall.rotation_euler = (math.radians(90), 0.0, 0.0) scene.collection.objects.link(wall) world = bpy.data.worlds.new("World") world.use_nodes = True world.node_tree.nodes["Background"].inputs["Color"].default_value = (0.02, 0.021, 0.025, 1.0) scene.world = world def light(name, offset, energy, size, col, target=None, spread=None): ld = bpy.data.lights.new(name, "AREA") ld.energy = energy ld.size = size ld.color = col if spread is not None: ld.spread = math.radians(spread) ob = bpy.data.objects.new(name, ld) ob.location = centre + Vector(offset) aim_at = centre if target is None else Vector(target) ob.rotation_euler = (aim_at - ob.location).normalized().to_track_quat("-Z", "Y").to_euler() scene.collection.objects.link(ob) # The house rig scaled to a 0.9 m prop: warm key upper left, cool fill # low right, cool rim behind, warm wedge pooled on the back wall. light("Key", (-1.3, -1.7, 1.5), 30.0, 0.9, (1.0, 0.95, 0.90), spread=18.0) light("Fill", (1.8, -1.2, 0.3), 5.0, 2.4, (0.72, 0.82, 1.0)) light("Rim", (-0.5, 0.9, 0.8), 22.0, 0.7, (0.62, 0.78, 1.0)) light("Wedge", (1.7, 2.1, 0.8), 40.0, 1.2, (1.0, 0.68, 0.38), target=(centre.x + 2.1, centre.y + WALL_Y, 0.35)) # the lamp's own light, in front of the lamp inside the shade: it lights # the reflector's mouth and throws the pool on the desk st = arm_stations() bulb_local = v3(st["cb"]) + v3(st["a"]) * 0.142 pl =bpy.data.lights.new("LampGlow", "POINT") pl.energy = 0.1 pl.color = (1.0, 0.80, 0.55) try: pl.shadow_soft_size = 0.008 except AttributeError: pass plo = bpy.data.objects.new("LampGlow", pl) plo.location = low.matrix_world @ bulb_local scene.collection.objects.link(plo) cam_data = bpy.data.cameras.new("Cam") cam_data.lens = 50.0 cam = bpy.data.objects.new("Cam", cam_data) view = Vector((-0.55, -0.77, 0.0)).normalized() cam.location = centre + view * 1.15 + Vector((0.0, 0.0, 0.13)) scene.collection.objects.link(cam) aim = bpy.data.objects.new("Aim", None) # a touch right of and above the box centre: the shade is the heavy end aim.location = centre + Vector((0.030, -0.021, 0.012)) scene.collection.objects.link(aim) con = cam.constraints.new("TRACK_TO") con.target = aim con.track_axis = "TRACK_NEGATIVE_Z" con.up_axis = "UP_Y" scene.camera = cam scene.render.engine = "CYCLES" if engine == "cycles" else eevee_engine_id() if engine == "cycles": scene.cycles.samples = 32 scene.cycles.device = "CPU" else: try: scene.eevee.taa_render_samples = 64 except AttributeError: pass scene.render.resolution_x = 1280 scene.render.resolution_y = 720 scene.render.image_settings.file_format = "WEBP" if path.lower().endswith(".webp") else "PNG" if path.lower().endswith(".webp"): scene.render.image_settings.quality = 90 scene.render.filepath = path # Standard, not AgX: AgX washes the enamel toward pastel scene.view_settings.view_transform = "Standard" fcode = gallery_framing.check_framing(scene, cam, hero=[low], elements=[low], stage=[floor, wall]) if fcode: return fcode # asset-quality floors return 11, which this piece spends on the # collider ceiling; remap at the call site if gallery_asset_quality.check_asset_quality(scene, cam, [low], stage=[floor, wall]): return 21 bpy.ops.render.render(write_still=True) if not (os.path.exists(path) and os.path.getsize(path) > 0): return fail("render produced no file", 14) return 0 def main(): argv = sys.argv[sys.argv.index("--") + 1:] if "--" in sys.argv else [] p = argparse.ArgumentParser() p.add_argument("--output", default=None) p.add_argument("--engine", default="eevee", choices=("eevee", "cycles")) p.add_argument("--skip-decimate", action="store_true") p.add_argument("--stray-vert", action="store_true") p.add_argument("--lift-z", action="store_true") p.add_argument("--offset-pin", action="store_true") p.add_argument("--unhook-spring", action="store_true") p.add_argument("--hollow-base", action="store_true") p.add_argument("--unscrew-bulb", action="store_true") args = p.parse_args(argv) code, low, enamel, tex = check( args.skip_decimate, lift_z=args.lift_z, stray_vert=args.stray_vert, offset_pin=args.offset_pin, unhook_spring=args.unhook_spring, hollow_base=args.hollow_base, unscrew_bulb=args.unscrew_bulb, ) if code: return code if args.output: rcode = render_still(low, enamel, tex, os.path.abspath(args.output), args.engine) if rcode: return rcode print(f"rendered still {args.output}") print("desk-lamp OK") return 0 if __name__ == "__main__": try: sys.exit(main()) except Exception as e: traceback.print_exc() print(f"FATAL: {e}", file=sys.stderr) sys.exit(1)
