A procedural shipping crate through UVs, bake, LOD, collider, and Unity glTF, asserting recomputed budgets rather than an API contract.

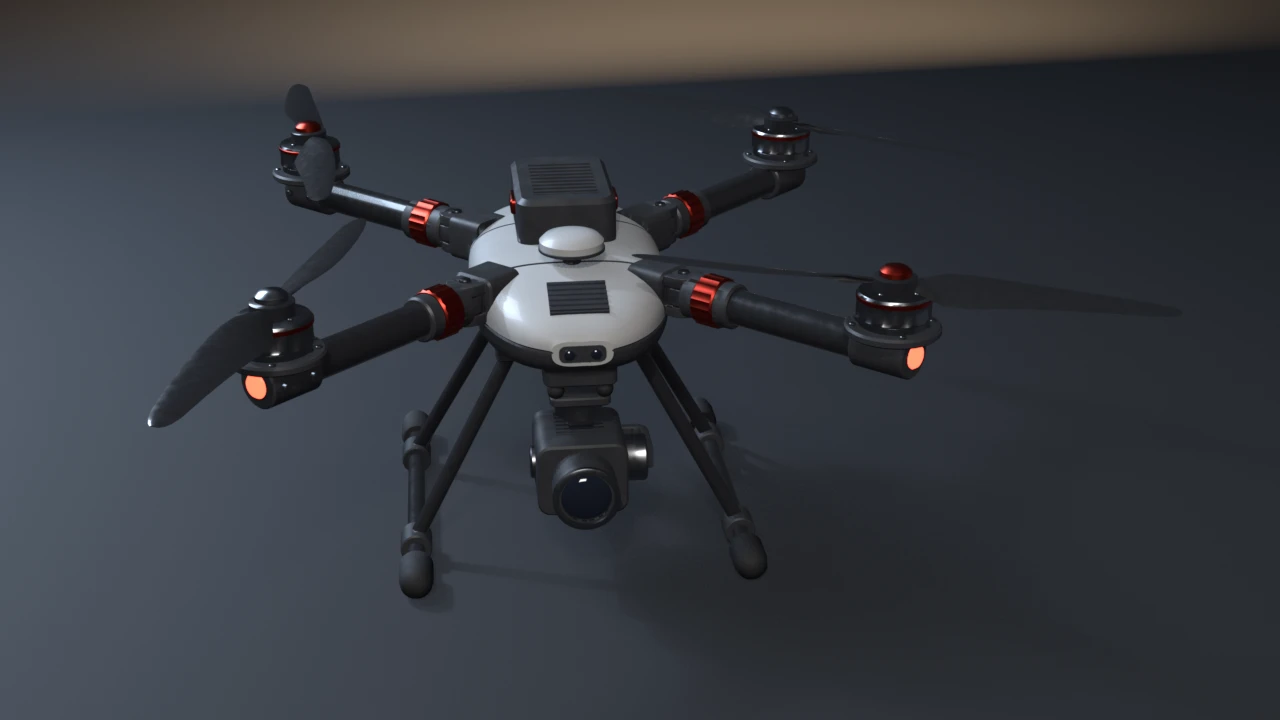

Rendered headless by the showcase piece itself — click to zoom.
witnesses Recomputed: 41048 tris, eight materials with 1720 shell, 2304 carbon, 6472 gunmetal, 524 glass, 760 light, 1296 rubber, 8464 graphite and 2184 anodised faces, UVs in 0..1 with zero AABB overlap, outer AABB 0.692×0.569×0.243 m, zmin 0 and all 4 feet grounded, hygiene 0 including zero coplanar cross-shell pairs, the 4 motor axes on an exact X about the body centre (gaps 90.000°, diagonals 0.52000 m, axes vertical, hubs level), every neighbouring prop disc cleared by 0.0365 m (band 0.028–0.050), mass centre 0.115 m inside the feet's footprint (floor 0.090), wheelbase 0.520 m, one connected assembly of 171 shells, LOD ratios in band, collider 499 tris, non-empty glTF. --skip-decimate exits 9; --stray-vert 15; --lift-z 16; --float-foot 16; --unlock-arm 17; --long-blades 18; --narrow-skids 19; --drop-lens 20.
category Vehicles
blender --background --python showcase/quad-drone/quad_drone.py --
A showcase piece, not an example, and the first in the vehicles category. It builds a procedural prosumer camera quadcopter on an X frame:
- a two-tone moulded body shell, lofted from superellipse sections: a light canopy over a dark belly, a parting-line groove along both flanks and two transverse panel lines, a grille on the nose and one on each flank, and a flat nose face carrying a sensor visor with two stereo lenses;
- a battery pack sitting in the top of the shell, with grip ribs, a red release latch on each side, a power button and four charge lights, and a GPS puck on a mast in front of it;
- four folding arms. Each hinges on a vertical pin through a clevis on the body (a block and two lugs) and a tongue on the arm's root cuff, with a knurled red lock ring. A carbon tube runs out to a clamp cuff with two screws, a navigation light on its end and a round mount plate;
- four brushless motors: a base, a stator bell with twelve cooling slots, a red anodised band, four top screws and four mount screws;
- four two-blade propellers, 0.33 m across. Each blade is lofted from cambered airfoil sections, twisted to a 115 mm geometric pitch, swept back at the tip and handed to its motor's spin. The spinners are colour-coded: red on the counter-clockwise props, gunmetal on the clockwise ones;
- two carbon skids on four raked struts, each strut in a T-collar on the skid and a pad under the belly, with a rubber foot on each skid end;
- a three-axis gimbal under the nose, hung from a damper stack (two plates, four rubber balls): yaw motor, yaw arm, roll motor, roll arm, pitch motor and bearing cap, and a camera with a top grille, a ribbed lens barrel, a silver front ring and a glass element; and
- two antennas pointing down and back from the belly.
The layout is solved from named constants. The motor axes sit at 45°, 135°, 225° and 315°, 0.26 m from the body centre (a 0.52 m diagonal). The hinge pin of each arm is placed where a level ray at arm height leaves the shell's closed-form surface, plus a named gap. Grilles and the visor are laid on that surface along its own normal, and the battery is seated below the lowest point of the crown under its footprint.
Three things the coplanar budget forced:
- Repeated small lathes on one host (four motor-top screws, four mount screws, four charge lights, two stereo lenses, two clamp screws, four damper balls) share tangent planes if they are identical. Each one is turned a fraction of a facet from its neighbour and set 0.15–0.2 mm deeper or prouder, so no two share a cap or a side facet.
- The two lugs of each clevis are not copies. The lower lug is 0.4 mm smaller round the pin and set back 1.2 mm, or their chamfered back corners land on one plane.
- The motor cuff starts 0.5 mm further in than first drawn, or its back cap lies in the plane of the anodised band's inner face.
Shading follows what each part is. The shell, tubes, blades and lathes are smooth-shaded; grilles, chamfers, knurls and slots stay crisp through sharp edges above 35° and at every material boundary. The navigation lights are one emissive material whose colour is chosen from object-space X: red forward of the body centre, green aft of it.
It asserts budget conformance of the generated result. It does not witness an API contract. "It rendered without error" is not a check.
Composes skills mesh-editing-and-bmesh, bake-high-to-low, depsgraph-and-evaluated-data, engine-export-presets, and snippets bake_normal_high_to_low.py, setup_bake_target_image.py, lod_chain.py / decimate_to_budget.py, convex_hull_collider.py, export_preset_unity.py (helpers copied inline, not imported).
Intended size: a 0.52 m motor-to-motor diagonal, 0.33 m propellers, and a body shell 0.255 m long and 0.136 m wide. The outer AABB is 0.692 × 0.569 × 0.243 m. The props, as parked, set X and Y; the battery and spinners set the top. The origin is under the body centre, so the drone lands on its feet.
Budgets#
Every budget is declared as a named constant. Every gate recomputes its value from the mesh, materials, UVs, evaluated LOD, collider, or export file.
| Axis | Declared | Measured (5.2.1) |
|---|---|---|
| Base triangles | 40000–42000 | 41048 |
| LOD1 ratio | 0.32–0.62 of base | 0.5000 |
| LOD2 ratio | 0.10–0.35 of base | 0.2200 |
| Materials | exactly 8 distinct; ≥1580 shell, ≥2120 carbon, ≥5950 gunmetal, ≥480 glass, ≥700 light, ≥1190 rubber, ≥7800 graphite, ≥2000 anodised faces | 8 slots; 1720 / 2304 / 6472 / 524 / 760 / 1296 / 8464 / 2184 |
| UVs | in 0..1, AABB overlap ≤ 1e-5 | in range, overlap 0 |
| Outer AABB | (0.692, 0.569, 0.243) m ± 0.01 | (0.6924, 0.5693, 0.2433), zmin 0 |
| Collider tris | ≤ 540 | 499 |
| Export | written, size > 0, removed after measuring | 3128864 bytes |
Every falsifier leaves the triangle count at 41048: they move, scale or narrow parts, never add or remove them.
DECIMATE COLLAPSE triangle counts are not identical across Blender series, so the LOD gate is a ratio band, not an exact count. Bake pixels are stochastic, so the bake gate is has_data plus operator FINISHED, not byte-identity. Construction uses no RNG; two default runs print identical measurements.
Hygiene#
Recomputed from the generated mesh, not asserted about the script.
| Axis | Declared | Measured |
|---|---|---|
| Non-manifold edges | 0 | 0 |
| Loose verts / edges | 0 / 0 | 0 / 0 |
| Doubles merged at 1e-5 | 0 | 0 |
| Zero-area faces | 0 | 0 |
| N-gons | 0 | 0 |
| Coplanar cross-shell face pairs (KD range 0.05 m, plane ε 1e-4) | 0 | 0 |
Grounded: zmin | within 1e-4 of 0 | 0.0000 |
Feet: each of the 4 rubber feet has its own zmin | within 1e-4 of 0 | 0, 0, 0, 0 |
Motor layout, propeller clearance, stance and assembly#
| Axis | Declared | Measured |
|---|---|---|
| Motor layout: the 4 stator bells' axes (vertex mean; tilt by PCA) about the body shell's centre | angular gaps 90° ± 0.3°; radii within 1 mm of each other; the two diagonals within 1 mm; axes within 0.5° of vertical; 4 hubs at one height ± 0.5 mm and each on its motor's axis ± 0.3 mm; motor centroid within 1 mm of the body centre | 45, 135, 225, 315°; 0 error; 0.000 mm; diagonals 0.52000, 0.52000; 0°; 0 mm; 0 mm; 0 mm |
| Propeller clearance: each prop's disc (farthest blade vertex from its motor's axis) against each neighbouring prop's disc; 2 blades per prop, each overlapping its hub | gap 0.028–0.050 m | discs 0.16558 m; gaps 0.03653 m (all four) |
| Stance: mass centre (shell volumes × density per material) inside the convex footprint of the feet's soles (each foot's lowest ring) | ≥ 0.090 m inside every edge | 0.1146 (3.46 kg, centre at x 0.0067) |
| Wheelbase (mean motor-to-motor diagonal) | 0.520 m ± 0.003 | 0.52000 |
| Body shell length and width | 0.255 × 0.136 m ± 0.003 | 0.2546 × 0.1360 |
| One connected assembly (union of shells whose BVH trees overlap) | 1 component | 1 (171 shells) |
A camera drone's layout is its flight controller's assumption: the mixer treats the four thrust axes as the corners of an exact square, level, in one plane. An arm that did not lock fully open is the commonest way to break that in the field, and the layout budget sees it as an angular gap. The clearance budget is the other half: a prop that fouls its neighbour's disc is the failure a longer prop invites. The densities are named constants (the moulded shell at 350 kg/m³ for a hollow moulding with its electronics, carbon 1600, aluminium 2700, glass 2500, lights and rubber 1200, graphite plastic 1400), and the volumes come from the mesh.
Falsifiers#
Each falsifier violates one named budget. Every one was run on 5.2.1 and exited its declared code. None moves the envelope: every run measured the same outer AABB as the default.
| Flag | Budget violated | Exit |
|---|---|---|
--skip-decimate | LOD1 ratio band (measured 1.0000) | 9 |
--stray-vert | loose vertex count is 0 (measured 1, placed inside the envelope) | 15 |
--lift-z | bounding box zmin is 0 (measured 0.05000) | 16 |
--float-foot | every foot on the ground (front-left foot 3 mm up: its zmin 0.00300, the other three 0) | 16 |
--unlock-arm | motor axes on an exact X (rear-left arm 2.5° short of locked open: worst gap 1.491° off 90°, motor centroid 1.69 mm off centre) | 17 |
--long-blades | propeller clearance (rear-left blades 14 mm longer: disc 0.1795 m, gap to both neighbours 0.0226 m) | 18 |
--narrow-skids | stance (skids drawn in to ±0.075 m: margin 0.0776 m) | 19 |
--drop-lens | one connected assembly (glass element 12 mm out of its barrel: 2 components) | 20 |
The rear-left arm is the one both --unlock-arm and --long-blades move because its prop is parked across its arm, so neither its tips nor its motor ever set the envelope. --unlock-arm leaves the prop gaps inside their band (0.0317 and 0.0412 m), so only the layout budget sees it. --long-blades leaves every motor where it was. --float-foot lifts one foot while the other three still ground the box. --narrow-skids keeps the feet on the ground and the envelope unchanged; only the footprint shrinks. It stops at ±0.075 m on purpose: drawn in to ±0.044 m, the front struts ran through the gimbal's roll arm and the run exited 15 on 69 coplanar pairs instead of 19. The stance footprint is each foot's sole (its lowest ring) rather than only the vertices touching the floor. Otherwise --float-foot also collapsed the footprint to a triangle (margin 0.0039 m) and broke two budgets at once.
Run#
blender --background --python quad_drone.py --
blender --background --python quad_drone.py -- --skip-decimate
blender --background --python quad_drone.py -- --stray-vert
blender --background --python quad_drone.py -- --lift-z
blender --background --python quad_drone.py -- --float-foot
blender --background --python quad_drone.py -- --unlock-arm
blender --background --python quad_drone.py -- --long-blades
blender --background --python quad_drone.py -- --narrow-skids
blender --background --python quad_drone.py -- --drop-lens
blender --background --python quad_drone.py -- --output drone.pngSmoke passes no flags.
The hero turns the piece HERO_YAW_DEG (−118°), so the nose and the gimbal camera face the lens and the X of the arms reads in depth from above. The wall stands 2.2 m behind the drone, where the floor seam falls above the far propeller tips, and the warm wedge pools on it.
Exit codes#
File-local. 9 is a valid check code. 10 is reserved for gallery_framing.check_framing on the --output path. 15–19 are the hygiene and joint-fit family. 20 is file-local. 21 is the asset-quality floor on the render path: check_asset_quality returns 11, which this piece already spends on the collider ceiling, so the call site remaps it.
| Code | Meaning |
|---|---|
| 0 | Success |
| 1 | Uncaught exception (FATAL wrapper) |
| 2 | argparse / usage |
| 3 | Mesh did not build / no UV layer |
| 4 | Base triangle count outside range |
| 5 | Material count ≠ 8 distinct slots, or a face-count floor missed |
| 6 | UVs outside 0..1 |
| 7 | UV AABB overlap above tolerance |
| 8 | World AABB off declared outer size |
| 9 | LOD ratio band (--skip-decimate lands here) |
| 10 | Framing gate (render path only) |
| 11 | Collider triangle count above ceiling |
| 12 | Bake did not finish or image has no data |
| 13 | Export file missing or empty |
| 14 | --output produced no file |
| 15 | Mesh hygiene: loose, non-manifold, zero-area, doubles, n-gons, coplanar cross-shell pairs |
| 16 | Not grounded: bounding box zmin off 0, or a foot off the ground, or not 4 feet (--lift-z, --float-foot) |
| 17 | Motor layout: axes off an exact X (angular gap, radius, diagonal, tilt, hub height, hub off axis, centroid), or not 4 motors and 4 hubs (--unlock-arm) |
| 18 | Propeller clearance: a neighbouring disc gap outside its band, a prop without 2 blades, or a blade not in its hub (--long-blades) |
| 19 | Stance and size: mass centre within 90 mm of the feet's footprint edge, wheelbase, or body length and width (--narrow-skids) |
| 20 | Assembly splits into more than one connected component (--drop-lens) |
| 21 | Asset-quality floor (render path only; remapped from 11) |
Source
"""Game-ready camera quadcopter — a showcase piece, not an example. Asserts budget conformance of a procedural prosumer camera drone after composing shipped pipeline pieces: bmesh construction, UVs, eight materials, high-to-low normal bake, LOD chain, convex collider, Unity glTF export. The drone is an X-frame quad. A moulded body shell is lofted from superellipse sections, with a parting-line groove along both flanks, two transverse panel lines, a grille on the nose, grilles on both flanks, a sensor visor with two stereo lenses on the nose and a status light bar on the tail. A battery pack sits in the top of the shell with grip ribs, a red release latch on each side, a power button and four charge LEDs, in front of it a GPS puck on a mast. Four folding arms each hinge on a vertical pin through a clevis on the body: two lugs, a tongue on the arm's root cuff and a knurled lock ring. A carbon tube runs out to a clamp cuff with two screws, a navigation LED on its end and a mount plate. On the plate a brushless motor (base, slotted stator bell, anodised top band, four screws, four mount screws) carries a two-blade propeller: a hub, a colour-coded spinner and two lofted, twisted, swept airfoil blades, handed to the motor's spin. Two skids on four raked struts end in rubber feet. A three-axis gimbal hangs under the nose on a damper stack (two plates, four rubber balls): yaw motor, yaw arm, roll motor, roll arm, pitch motor, and a camera with a ribbed lens barrel, a front ring and a glass element. Two antennas point down and back from the tail. Budgets are declared below and recomputed from the generated result. They are not API-contract witnesses. Each falsifier violates one named budget: ``--skip-decimate`` the LOD-ratio band, ``--stray-vert`` mesh hygiene, ``--lift-z`` grounded zmin, ``--float-foot`` every foot on the ground, ``--unlock-arm`` the motor layout on an exact X, ``--long-blades`` the propeller tip clearance, ``--narrow-skids`` the mass centre inside the landing footprint, ``--drop-lens`` one connected assembly. No RNG. Construction is closed-form. DECIMATE COLLAPSE triangle counts are not byte-identical across Blender versions — the LOD gate is a ratio band, not an exact count. blender --background --python quad_drone.py -- blender --background --python quad_drone.py -- --skip-decimate blender --background --python quad_drone.py -- --output drone.png """ import argparse import math import os import sys import tempfile import traceback import bmesh import bpy import numpy as np from mathutils import Matrix, Vector from mathutils.bvhtree import BVHTree from mathutils.kdtree import KDTree # Showcase lives at repo-root/showcase/, not under examples/. The framing # helper is the repo's only shared import and lives next to the examples; # resolve the repo root so we do not move gallery_framing.py. _REPO = os.path.abspath( os.path.join(os.path.dirname(os.path.abspath(__file__)), os.pardir, os.pardir) ) sys.path.insert(0, os.path.join(_REPO, "examples")) sys.dont_write_bytecode = True import gallery_framing # noqa: E402 import gallery_asset_quality # noqa: E402 # --- Body shell: superellipse sections lofted along X (nose at +X) ---------- BODY_LB = 0.130 # half-length of the full envelope; the loft stops at 97 % BODY_END = 0.97 BODY_W = 0.068 # half-width BODY_HT = 0.034 # parting line to crown BODY_HB = 0.030 # parting line to belly BODY_ZC = 0.172 # parting-line height BODY_N = 3.0 # section superellipse exponent BODY_SEGS = 64 BODY_STATIONS = 40 GROOVE = 0.0012 # panel-line depth PANEL_X = (-0.036, 0.047) # transverse panel lines CAP_CHAMFER = 0.0015 # --- Motor layout ------------------------------------------------------------ MOTOR_R = 0.260 # body centre to motor axis: 0.52 m diagonal MOTOR_DEG = (45.0, 135.0, 225.0, 315.0) SPIN = (1, -1, 1, -1) # +1 counter-clockwise from above PROP_PARK_DEG = (70.0, 45.0, 10.0, 340.0) # blade azimuth as parked ARM_Z = 0.188 # arm tube axis ARM_R = 0.0115 # carbon arm tube PIN_GAP = 0.017 # body surface to hinge pin, along the arm # --- Propeller --------------------------------------------------------------- PROP_R = 0.165 # 13-inch propeller PROP_PITCH = 0.115 # geometric pitch (m per turn): blade angle = atan(P / 2 pi r) PROP_BETA_MAX = 30.0 # (station r, chord, max thickness) BLADE_STATIONS = [ (0.006, 0.0095, 0.0032), (0.013, 0.0115, 0.0032), (0.020, 0.0175, 0.0030), (0.030, 0.0255, 0.0028), (0.045, 0.0300, 0.0025), (0.060, 0.0295, 0.0022), (0.080, 0.0275, 0.0019), (0.100, 0.0250, 0.0016), (0.120, 0.0220, 0.0014), (0.138, 0.0190, 0.0012), (0.150, 0.0165, 0.0011), (0.158, 0.0130, 0.0010), (0.1625, 0.0092, 0.0008), (0.165, 0.0048, 0.0005), ] BLADE_CAMBER = 0.040 BLADE_PIVOT = 0.40 BLADE_SWEEP = 0.011 # tip swept back behind the motion AIRFOIL_X = (1.0, 0.72, 0.45, 0.22, 0.07, 0.0, 0.07, 0.22, 0.45, 0.72) # --- Landing gear ------------------------------------------------------------ SKID_Y = 0.112 SKID_Y_NARROW = 0.075 # --narrow-skids SKID_HALF = 0.118 SKID_R = 0.0062 FOOT_R = 0.0115 FOOT_X0 = 0.100 STRUT_X_TOP = 0.048 STRUT_Y_TOP = 0.042 STRUT_X_BOT = 0.070 STRUT_R = 0.0052 FLOAT_FOOT = 0.003 # --float-foot # --- Gimbal and camera ------------------------------------------------------- GX = 0.086 CAM_HALF = (0.030, 0.025) # camera body half-width (Y), half-height (Z) LENS_DROP = 0.012 # --drop-lens # --- Battery ----------------------------------------------------------------- BATT_X = -0.040 BATT_HALF = (0.055, 0.034) BATT_TOP = 0.236 GPS_X = 0.046 VENT_X = 0.093 # --- Falsifier sizes --------------------------------------------------------- UNLOCK_ARM = 1 # the rear-left arm: its prop is parked across its arm, UNLOCK_DEG = 2.5 # so its tips never set the envelope LONG_BLADES = 0.014 BBOX_TOL = 0.01 # Fitted after locking geometry. Recomputed from bound_box. OUTER_SIZE = (0.692, 0.569, 0.243) BASE_TRIS_MIN = 40000 BASE_TRIS_MAX = 42000 LOD1_RATIO_MIN = 0.32 LOD1_RATIO_MAX = 0.62 LOD2_RATIO_MIN = 0.10 LOD2_RATIO_MAX = 0.35 LOD1_TARGET = 0.50 LOD2_TARGET = 0.22 MATERIAL_COUNT = 8 UV_EPS = 1e-4 UV_OVERLAP_MAX = 1e-5 COLLIDER_TRIS_MAX = 540 BAKE_RES = 1024 CAGE_EXTRUSION = 0.004 BODY_FACES_MIN = 1580 CARBON_FACES_MIN = 2120 METAL_FACES_MIN = 5950 GLASS_FACES_MIN = 480 LED_FACES_MIN = 700 RUBBER_FACES_MIN = 1190 GRAPHITE_FACES_MIN = 7800 ANODIZED_FACES_MIN = 2000 ZMIN_EPS = 1e-4 DOUBLES_EPS = 1e-5 AREA_EPS = 1e-10 COPLANAR_NORMAL_EPS = 1e-4 COPLANAR_PLANE_EPS = 1e-4 COPLANAR_CENTRE_MAX = 0.05 LIFT_Z = 0.05 FEET_COUNT = 4 # Motor layout: axes on an exact X about the body centre. MOTOR_COUNT = 4 ANGLE_TOL_DEG = 0.3 RADIUS_TOL = 0.001 DIAG_TOL = 0.001 AXIS_TILT_MAX_DEG = 0.5 HUB_Z_TOL = 0.0005 HUB_AXIS_TOL = 0.0003 CENTROID_TOL = 0.001 # Propeller clearance: every disc clears each neighbouring disc by this band. BLADES_PER_PROP = 2 CLEAR_MIN = 0.028 CLEAR_MAX = 0.050 # Stance: the mass centre, from shell volumes and material densities, stands # this far inside the feet's ground-contact footprint on every side. DENSITY = (350.0, 1600.0, 2700.0, 2500.0, 1200.0, 1200.0, 1400.0, 2700.0) STANCE_MARGIN = 0.090 WHEELBASE = 2.0 * MOTOR_R WHEELBASE_TOL = 0.003 BODY_LEN = 0.255 BODY_WIDTH = 0.136 BODY_TOL = 0.003 # Hero yaw: the nose turned toward the camera so the gimbal shows. HERO_YAW_DEG = -118.0 WALL_Y = 2.2 BODY_IDX = 0 CARBON_IDX = 1 METAL_IDX = 2 GLASS_IDX = 3 LED_IDX = 4 RUBBER_IDX = 5 GRAPHITE_IDX = 6 ANODIZED_IDX = 7 ZAX = Vector((0.0, 0.0, 1.0)) def eevee_engine_id(): return "BLENDER_EEVEE" if bpy.app.version >= (5, 0, 0) else "BLENDER_EEVEE_NEXT" def fail(msg, code): print(f"ERROR: {msg}", file=sys.stderr) return code def triangle_count(mesh): mesh.calc_loop_triangles() return len(mesh.loop_triangles) def evaluated_triangle_count(obj): # Duplicated from snippets/lod_chain.py / decimate_to_budget.py (not a package). depsgraph = bpy.context.evaluated_depsgraph_get() eval_obj = obj.evaluated_get(depsgraph) eval_mesh = eval_obj.to_mesh() try: eval_mesh.calc_loop_triangles() return len(eval_mesh.loop_triangles) finally: eval_obj.to_mesh_clear() # -------------------------------------------------------------------------- # Construction helpers # -------------------------------------------------------------------------- def _mark(faces, mat_idx): for f in faces: f.material_index = mat_idx def frame(ez, ex_hint): """Rotation whose local Z is ``ez`` and local X is ``ex_hint`` made orthogonal to it (columns ex, ey, ez; right-handed).""" ez = Vector(ez).normalized() ex = Vector(ex_hint) ex = (ex - ez * ex.dot(ez)).normalized() ey = ez.cross(ex) return Matrix((ex, ey, ez)).transposed() def add_lathe(bm, profile, segs, mat_idx, center=(0.0, 0.0, 0.0), rot=None, phase=0.0, solid=False, seg_mats=None, cap_mats=None, rmod=None): """Revolve a profile [(r, z), ...] about local Z. ``solid``: the profile is an open polyline closed by n-gon caps at its two ends; otherwise it is a closed polygon revolved into a ring shell. ``rmod(i, j)`` scales the radius of profile point ``j`` on ring ``i``.""" c = Vector(center) m = rot if rot is not None else Matrix.Identity(3) rings = [] for i in range(segs): a = phase + 2.0 * math.pi * i / segs ca, sa = math.cos(a), math.sin(a) ring = [] for j, (r, z) in enumerate(profile): rr = r * (rmod(i, j) if rmod else 1.0) ring.append(bm.verts.new(c + m @ Vector((rr * ca, rr * sa, z)))) rings.append(ring) n = len(profile) last = n - 1 if solid else n for i in range(segs): r0, r1 = rings[i], rings[(i + 1) % segs] for j in range(last): k = (j + 1) % n f = bm.faces.new((r0[j], r1[j], r1[k], r0[k])) f.material_index = seg_mats[j] if seg_mats else mat_idx if solid: f0 = bm.faces.new([rings[i][0] for i in reversed(range(segs))]) f1 = bm.faces.new([rings[i][n - 1] for i in range(segs)]) f0.material_index = cap_mats[0] if cap_mats else mat_idx f1.material_index = cap_mats[1] if cap_mats else mat_idx return [v for ring in rings for v in ring] def add_tube(bm, pts, radius, sides, mat_idx, phase=0.0): """Capped round bar swept along a polyline (parallel-transport frames).""" pts = [Vector(p) for p in pts] tans = [] for i in range(len(pts)): a = pts[max(i - 1, 0)] b = pts[min(i + 1, len(pts) - 1)] tans.append((b - a).normalized()) ref = Vector((0.0, 0.0, 1.0)) if abs(tans[0].z) < 0.9 else Vector((1.0, 0.0, 0.0)) nrm = (ref - tans[0] * ref.dot(tans[0])).normalized() rings = [] for p, t in zip(pts, tans): nrm = (nrm - t * nrm.dot(t)).normalized() bi = t.cross(nrm) rings.append([ bm.verts.new(p + radius * (nrm * math.cos(phase + 2.0 * math.pi * k / sides) + bi * math.sin(phase + 2.0 * math.pi * k / sides))) for k in range(sides) ]) faces = [] for r0, r1 in zip(rings, rings[1:]): for k in range(sides): m = (k + 1) % sides faces.append(bm.faces.new((r0[k], r0[m], r1[m], r1[k]))) faces.append(bm.faces.new(tuple(reversed(rings[0])))) faces.append(bm.faces.new(tuple(rings[-1]))) _mark(faces, mat_idx) return [v for ring in rings for v in ring] def add_sphere(bm, center, radius, mat_idx, segs=16, rings=10, spin=0.0): geo = bmesh.ops.create_uvsphere(bm, u_segments=segs, v_segments=rings, radius=radius) verts = geo["verts"] c = Vector(center) rz = Matrix.Rotation(spin, 3, "Z") for v in verts: v.co = rz @ v.co + c _mark({f for v in verts for f in v.link_faces}, mat_idx) return list(verts) def rrect(ha, hb, rc, n_corner=4): """Rounded rectangle loop (counter-clockwise).""" rc = max(min(rc, ha - 1e-4, hb - 1e-4), 0.0006) pts = [] for k, (sx, sy) in enumerate(((1, 1), (-1, 1), (-1, -1), (1, -1))): cx, cy = sx * (ha - rc), sy * (hb - rc) a0 = 0.5 * math.pi * k for s in range(n_corner + 1): a = a0 + 0.5 * math.pi * s / n_corner pts.append((cx + rc * math.cos(a), cy + rc * math.sin(a))) return pts def add_rbox(bm, ha, hb, rc, profile, origin, rot, mat_idx, n_corner=4): """Loft of rounded rectangles along local Z: profile [(inset, z)], each loop inset from (ha, hb, rc); n-gon caps at both ends.""" o = Vector(origin) rings = [] for inset, z in profile: loop = rrect(ha - inset, hb - inset, rc - inset, n_corner) rings.append([bm.verts.new(o + rot @ Vector((x, y, z))) for x, y in loop]) n = len(rings[0]) faces = [] for r0, r1 in zip(rings, rings[1:]): for k in range(n): m = (k + 1) % n faces.append(bm.faces.new((r0[k], r0[m], r1[m], r1[k]))) faces.append(bm.faces.new(tuple(reversed(rings[0])))) faces.append(bm.faces.new(tuple(rings[-1]))) _mark(faces, mat_idx) return [v for ring in rings for v in ring] def add_prism(bm, outline, w0, w1, origin, rot, mat_idx): """Planar outline [(u, v)] extruded along local Z from w0 to w1.""" o = Vector(origin) a = [bm.verts.new(o + rot @ Vector((u, v, w0))) for u, v in outline] b = [bm.verts.new(o + rot @ Vector((u, v, w1))) for u, v in outline] n = len(outline) faces = [bm.faces.new((a[i], a[(i + 1) % n], b[(i + 1) % n], b[i])) for i in range(n)] faces.append(bm.faces.new(tuple(reversed(a)))) faces.append(bm.faces.new(tuple(b))) _mark(faces, mat_idx) return a + b def fillet_path(pts, rf, steps=4): pts = [Vector(p) for p in pts] out = [pts[0]] for i in range(1, len(pts) - 1): a, p, b = pts[i - 1], pts[i], pts[i + 1] r = min(rf, (a - p).length * 0.45, (b - p).length * 0.45) p0 = p + (a - p).normalized() * r p1 = p + (b - p).normalized() * r for k in range(steps + 1): t = k / steps out.append((1 - t) ** 2 * p0 + 2 * (1 - t) * t * p + t * t * p1) out.append(pts[-1]) return out def add_bar(bm, pts, wax, half_w, half_t, rc, mat_idx, fillet=0.008): """Flat bar bent in the plane normal to ``wax``: its width lies along ``wax``, its thickness in the bending plane; rounded-rectangle section.""" pts = fillet_path(pts, fillet) wax = Vector(wax).normalized() sec = rrect(half_w, half_t, rc, 2) rings = [] for i, p in enumerate(pts): a = pts[max(i - 1, 0)] b = pts[min(i + 1, len(pts) - 1)] t = (b - a).normalized() w = (wax - t * wax.dot(t)).normalized() th = t.cross(w) rings.append([bm.verts.new(p + w * x + th * y) for x, y in sec]) n = len(sec) faces = [] for r0, r1 in zip(rings, rings[1:]): for k in range(n): m = (k + 1) % n faces.append(bm.faces.new((r0[k], r0[m], r1[m], r1[k]))) faces.append(bm.faces.new(tuple(reversed(rings[0])))) faces.append(bm.faces.new(tuple(rings[-1]))) _mark(faces, mat_idx) return [v for ring in rings for v in ring] def hull2d(pts): """Convex hull, counter-clockwise (monotone chain).""" pts = sorted(set((round(x, 9), round(z, 9)) for x, z in pts)) def cross(o, a, b): return (a[0] - o[0]) * (b[1] - o[1]) - (a[1] - o[1]) * (b[0] - o[0]) lower, upper = [], [] for p in pts: while len(lower) >= 2 and cross(lower[-2], lower[-1], p) <= 1e-12: lower.pop() lower.append(p) for p in reversed(pts): while len(upper) >= 2 and cross(upper[-2], upper[-1], p) <= 1e-12: upper.pop() upper.append(p) return lower[:-1] + upper[:-1] def lug_outline(circles, extra=(), n=20): """Hull of circles [(u, v, r)] plus loose points: a cast lug plate.""" pts = list(extra) for u, v, r in circles: for k in range(n): a = 2.0 * math.pi * (k + 0.5) / n pts.append((u + r * math.cos(a), v + r * math.sin(a))) return hull2d(pts) def comb_outline(half_len, base_lo, base_hi, ribs, rib_half, rib_top): """Grille section: a base strip with ``ribs`` teeth standing on it.""" pts = [(-half_len, base_lo), (half_len, base_lo), (half_len, base_hi)] pitch = 2.0 * half_len / ribs for k in reversed(range(ribs)): c = -half_len + pitch * (k + 0.5) pts += [(c + rib_half, base_hi), (c + rib_half, rib_top), (c - rib_half, rib_top), (c - rib_half, base_hi)] pts.append((-half_len, base_hi)) return pts def screw_profile(lo, hi, r): return [(r, lo), (r, hi - 0.0004), (r * 0.78, hi)] def triangulate_ngons(bm): faces = [f for f in bm.faces if len(f.verts) > 4] if faces: bmesh.ops.triangulate(bm, faces=faces) def pack_uvs(bm, margin=0.08): uv = bm.loops.layers.uv.new("UVMap") faces = list(bm.faces) n = len(faces) cols = max(1, math.ceil(math.sqrt(n))) rows = max(1, math.ceil(n / cols)) cell_w = 1.0 / cols cell_h = 1.0 / rows pad_u = margin * cell_w * 0.5 pad_v = margin * cell_h * 0.5 usable_w = cell_w - 2.0 * pad_u usable_h = cell_h - 2.0 * pad_v for i, face in enumerate(faces): col = i % cols row = i // cols nrm = face.normal ax, ay, az = abs(nrm.x), abs(nrm.y), abs(nrm.z) coords = [] for loop in face.loops: co = loop.vert.co if az >= ax and az >= ay: coords.append((co.x, co.y)) elif ax >= ay: coords.append((co.y, co.z)) else: coords.append((co.x, co.z)) xs = [c[0] for c in coords] ys = [c[1] for c in coords] minx, maxx = min(xs), max(xs) miny, maxy = min(ys), max(ys) dx = max(maxx - minx, 1e-8) dy = max(maxy - miny, 1e-8) origin_u = col * cell_w + pad_u origin_v = row * cell_h + pad_v for loop, (x, y) in zip(face.loops, coords): loop[uv].uv = ( origin_u + (x - minx) / dx * usable_w, origin_v + (y - miny) / dy * usable_h, ) # -------------------------------------------------------------------------- # The body shell's closed form # -------------------------------------------------------------------------- def _env(u, p): a = min(abs(u), 1.0) return (1.0 - a ** p) ** (1.0 / p) def body_dims(x): """(half-width, crown height, belly depth) of the section at ``x``. The nose is rounder in plan and drops toward its visor; the tail is squarer.""" u = x / BODY_LB nose = u > 0.0 w = BODY_W * _env(u, 2.3 if nose else 2.8) ht = BODY_HT * _env(u, 2.0 if nose else 3.0) hb = BODY_HB * _env(u, 2.6 if nose else 3.2) return w, ht, hb def _se(c, n=BODY_N): return math.copysign(abs(c) ** (2.0 / n), c) def body_top(x, y): w, ht, _hb = body_dims(x) a = min(1.0, abs(y) / w) return BODY_ZC + ht * (1.0 - a ** BODY_N) ** (1.0 / BODY_N) def body_bottom(x, y): w, _ht, hb = body_dims(x) a = min(1.0, abs(y) / w) return BODY_ZC - hb * (1.0 - a ** BODY_N) ** (1.0 / BODY_N) def body_side_y(x, z): w, ht, hb = body_dims(x) h = ht if z >= BODY_ZC else hb a = min(1.0, abs(z - BODY_ZC) / h) return w * (1.0 - a ** BODY_N) ** (1.0 / BODY_N) def body_F(p): w, ht, hb = body_dims(p.x) h = ht if p.z >= BODY_ZC else hb return (abs(p.y) / w) ** BODY_N + (abs(p.z - BODY_ZC) / h) ** BODY_N - 1.0 def body_normal(p, eps=1e-5): g = Vector(( body_F(p + Vector((eps, 0, 0))) - body_F(p - Vector((eps, 0, 0))), body_F(p + Vector((0, eps, 0))) - body_F(p - Vector((0, eps, 0))), body_F(p + Vector((0, 0, eps))) - body_F(p - Vector((0, 0, eps))), )) return g.normalized() def body_ray(phi, z): """Distance from the body axis to the shell along a level ray at ``phi``.""" lo, hi = 0.0, 0.2 c, s = math.cos(phi), math.sin(phi) for _ in range(60): mid = 0.5 * (lo + hi) if body_F(Vector((mid * c, mid * s, z))) < 0.0: lo = mid else: hi = mid return 0.5 * (lo + hi) def body_ring(x, inset=0.0): """One section loop: points [(y, z)] and per-segment material.""" w, ht, hb = body_dims(x) step = 2.0 * math.pi / BODY_SEGS du = min(math.asin(min(1.0, (GROOVE / ht) ** (BODY_N / 2.0))), 0.4 * step) dl = min(math.asin(min(1.0, (GROOVE / hb) ** (BODY_N / 2.0))), 0.4 * step) half = BODY_SEGS // 2 ts = [(0.0, True), (du, False)] ts += [(step * i, False) for i in range(1, half)] ts += [(math.pi - du, False), (math.pi, True), (math.pi + dl, False)] ts += [(step * i, False) for i in range(half + 1, BODY_SEGS)] ts += [(2.0 * math.pi - dl, False)] pts = [] grooved = [] for t, g in ts: c, s = math.cos(t), math.sin(t) y = w * _se(c) z = BODY_ZC + (ht if s >= 0.0 else hb) * _se(s) if g: y -= math.copysign(GROOVE, c) grooved.append(g) pts.append((y, z)) if inset > 0.0: out = [] for y, z in pts: d = math.hypot(y, z - BODY_ZC) k = 1.0 - inset / d out.append((y * k, BODY_ZC + (z - BODY_ZC) * k)) pts = out n = len(pts) # the belly below the parting line is dark moulding, the canopy light seg_mats = [GRAPHITE_IDX if (grooved[j] or grooved[(j + 1) % n] or pts[j][1] + pts[(j + 1) % n][1] < 2.0 * BODY_ZC) else BODY_IDX for j in range(n)] return pts, seg_mats def body_stations(): x_end = BODY_LB * BODY_END xs = [x_end * math.sin(0.5 * math.pi * (-1.0 + 2.0 * k / (BODY_STATIONS - 1))) for k in range(BODY_STATIONS)] xs = [x for x in xs if all(abs(x - g) > 0.005 for g in PANEL_X)] st = [(x, 0.0, False) for x in xs] for g in PANEL_X: st += [(g - 0.0013, 0.0, False), (g, GROOVE, True), (g + 0.0013, 0.0, False)] st.sort() st = [(-x_end - 0.0012, CAP_CHAMFER, False)] + st + [(x_end + 0.0012, CAP_CHAMFER, False)] return st def add_body(bm): rings, ring_mats, dark = [], [], [] for x, inset, is_groove in body_stations(): pts, seg_mats = body_ring(max(-BODY_LB * BODY_END, min(BODY_LB * BODY_END, x)), inset) rings.append([bm.verts.new((x, y, z)) for y, z in pts]) ring_mats.append(seg_mats) dark.append(is_groove) n = len(rings[0]) for k, (r0, r1) in enumerate(zip(rings, rings[1:])): for j in range(n): m = (j + 1) % n f = bm.faces.new((r0[j], r0[m], r1[m], r1[j])) f.material_index = GRAPHITE_IDX if (dark[k] or dark[k + 1]) else ring_mats[k][j] f0 = bm.faces.new(tuple(reversed(rings[0]))) f1 = bm.faces.new(tuple(rings[-1])) f0.material_index = BODY_IDX f1.material_index = BODY_IDX def surface_frame(p, along): """Frame on the shell at ``p``: local Z the outward normal, local X ``along`` laid into the tangent plane.""" return frame(body_normal(p), along) # -------------------------------------------------------------------------- # Assemblies # -------------------------------------------------------------------------- def blade_beta(r): return min(math.radians(PROP_BETA_MAX), math.atan(PROP_PITCH / (2.0 * math.pi * r))) def naca_half(x, t): return 5.0 * t * (0.2969 * math.sqrt(x) - 0.1260 * x - 0.3516 * x * x + 0.2843 * x ** 3 - 0.1036 * x ** 4) def add_blade(bm, hub_c, e_r, spin, scale=1.0): """One lofted blade: twisted, cambered, swept back behind its motion.""" e_t = (ZAX.cross(e_r)) * spin secs = [] for r, chord, thick in BLADE_STATIONS: rr = r * scale beta = blade_beta(r) cdir = -math.cos(beta) * e_t - math.sin(beta) * ZAX ndir = -math.sin(beta) * e_t + math.cos(beta) * ZAX sweep = -BLADE_SWEEP * (max(0.0, r - 0.040) / (PROP_R - 0.040)) ** 2 base = hub_c + e_r * rr + e_t * sweep ring = [] for k, xc in enumerate(AIRFOIL_X): upper = k < 5 camber = BLADE_CAMBER * chord * 4.0 * xc * (1.0 - xc) yt = naca_half(xc, thick) y = camber + (yt if upper else -yt) ring.append(bm.verts.new(base + cdir * ((xc - BLADE_PIVOT) * chord) + ndir * y)) secs.append(ring) n = len(AIRFOIL_X) faces = [] for r0, r1 in zip(secs, secs[1:]): for k in range(n): m = (k + 1) % n faces.append(bm.faces.new((r0[k], r0[m], r1[m], r1[k]))) faces.append(bm.faces.new(tuple(reversed(secs[0])))) faces.append(bm.faces.new(tuple(secs[-1]))) _mark(faces, CARBON_IDX) return [v for s in secs for v in s] def motor_stack(z_arm): """Heights of the motor stack above the arm axis.""" plate0 = z_arm + 0.0115 plate1 = plate0 + 0.0060 base0 = plate1 - 0.0006 bell0 = base0 + 0.0052 bell1 = bell0 + 0.0172 hub0 = bell1 - 0.0008 return {"plate0": plate0, "plate1": plate1, "base0": base0, "bell0": bell0, "bell1": bell1, "hub0": hub0, "prop": hub0 + 0.0050} def add_arm(bm, i, bevel_verts, unlock=False, long_blades=False): phi = math.radians(MOTOR_DEG[i]) e_r = Vector((math.cos(phi), math.sin(phi), 0.0)) e_t = Vector((-math.sin(phi), math.cos(phi), 0.0)) r_b = body_ray(phi, ARM_Z) r_p = r_b + PIN_GAP pin = e_r * r_p + Vector((0.0, 0.0, ARM_Z)) lug_rot = Matrix((e_r, e_t, ZAX)).transposed() # u radial, v tangential, w up arm_rot = frame(e_r, ZAX) # local Z along the arm # --- body side: clevis block, two lugs, hinge pin add_rbox(bm, 0.0165, 0.0155, 0.006, [(0.0, r_b - 0.018), (0.0, r_p - 0.0080), (0.0015, r_p - 0.0065)], (0.0, 0.0, ARM_Z), frame(e_r, e_t), GRAPHITE_IDX) for k, (z0, z1, rad) in enumerate(((0.0068, 0.0138, 0.0125), (-0.0138, -0.0068, 0.0121))): back = r_p - 0.014 - 0.0012 * k ol = lug_outline([(r_p, 0.0, rad)], [(back, rad), (back, -rad)], n=20 + 2 * k) bevel_verts += add_prism(bm, ol, ARM_Z + z0, ARM_Z + z1, (0.0, 0.0, 0.0), lug_rot, GRAPHITE_IDX) pprof = [(0.0024, -0.0138 - 0.0020), (0.0036, -0.0138 - 0.0016), (0.0040, -0.0138 - 0.0006), (0.0040, -0.0136), (0.0022, -0.0136), (0.0022, 0.0136), (0.0040, 0.0136), (0.0040, 0.0138 + 0.0006), (0.0036, 0.0138 + 0.0016), (0.0024, 0.0138 + 0.0020)] add_lathe(bm, pprof, 14, METAL_IDX, center=pin, solid=True) # --- arm side: tongue, root cuff, lock ring, tube, motor cuff ... side = [] ol = lug_outline([(r_p, 0.0, 0.0118)], [(r_p + 0.022, 0.0100), (r_p + 0.022, -0.0100)]) tongue = add_prism(bm, ol, ARM_Z - 0.0057, ARM_Z + 0.0057, (0.0, 0.0, 0.0), lug_rot, GRAPHITE_IDX) bevel_verts += tongue side += tongue side += add_lathe(bm, [(0.0135, 0.0), (0.0150, 0.0015), (0.0150, 0.0365), (0.0137, 0.038)], 32, GRAPHITE_IDX, center=pin + e_r * 0.006, rot=arm_rot, solid=True) def knurl(ii, j): return 0.94 if (j in (1, 2) and ii % 2) else 1.0 side += add_lathe(bm, [(0.0158, 0.0), (0.0172, 0.0012), (0.0172, 0.0158), (0.0158, 0.017)], 40, ANODIZED_IDX, center=pin + e_r * 0.017, rot=arm_rot, solid=True, rmod=knurl) motor = e_r * MOTOR_R + Vector((0.0, 0.0, ARM_Z)) side += add_tube(bm, [pin + e_r * 0.030, motor + e_r * 0.006], ARM_R, 24, CARBON_IDX) side += add_lathe(bm, [(0.0140, 0.0), (0.0152, 0.0012), (0.0152, 0.0373), (0.0140, 0.0385)], 32, GRAPHITE_IDX, center=motor - e_r * 0.0225, rot=arm_rot, solid=True, phase=math.pi / 32.0) # navigation light on the cuff's end: red forward, green aft (by shader) side += add_lathe(bm, [(0.0075, 0.0), (0.0080, 0.0012), (0.0066, 0.0032), (0.0036, 0.0043), (0.0010, 0.0046)], 24, LED_IDX, center=motor + e_r * 0.0155, rot=arm_rot, solid=True) # two clamp screws on the cuff's flank for k, dr in enumerate((-0.014, 0.008)): c = motor + e_r * dr side += add_lathe(bm, screw_profile(0.0135 - 0.0002 * k, 0.0177 + 0.0002 * k, 0.0026), 12, METAL_IDX, center=c, rot=frame(e_t, ZAX), solid=True, phase=k * math.pi / 24.0) st = motor_stack(ARM_Z) axis = Vector((motor.x, motor.y, 0.0)) side += add_lathe(bm, [(0.0280, 0.0), (0.0296, 0.0014), (0.0296, 0.0046), (0.0282, 0.0060)], 48, GRAPHITE_IDX, center=axis + ZAX * st["plate0"], solid=True) for k in range(4): a = phi + math.pi / 4.0 + 0.5 * math.pi * k c = axis + Vector((math.cos(a), math.sin(a), 0.0)) * 0.0250 + ZAX * st["plate1"] side += add_lathe(bm, screw_profile(-0.0009 - 0.00015 * k, 0.0010 + 0.00015 * k, 0.0021), 10, METAL_IDX, center=c, solid=True, phase=k * math.pi / 20.0) side += add_lathe(bm, [(0.0200, 0.0), (0.0214, 0.0010), (0.0214, 0.0048), (0.0204, 0.0060)], 48, METAL_IDX, center=axis + ZAX * st["base0"], solid=True, phase=math.pi / 48.0) def slots(ii, j): return 0.93 if (j in (2, 3) and ii % 4 in (0, 1)) else 1.0 side += add_lathe(bm, [(0.0222, 0.0), (0.0228, 0.0010), (0.0228, 0.0030), (0.0228, 0.0110), (0.0228, 0.0150), (0.0218, 0.0165), (0.0180, 0.0172)], 48, METAL_IDX, center=axis + ZAX * st["bell0"], solid=True, rmod=slots) side += add_lathe(bm, [(0.0221, 0.0), (0.0233, 0.0006), (0.0233, 0.0030), (0.0221, 0.0036)], 48, ANODIZED_IDX, center=axis + ZAX * (st["bell0"] + 0.0114), phase=math.pi / 48.0) for k in range(4): a = phi + 0.5 * math.pi * k c = axis + Vector((math.cos(a), math.sin(a), 0.0)) * 0.0155 + ZAX * st["bell1"] side += add_lathe(bm, screw_profile(-0.0011 - 0.00015 * k, 0.0012 + 0.00015 * k, 0.0017), 10, METAL_IDX, center=c, solid=True, phase=k * math.pi / 20.0) # the propeller: hub, spinner (red on the counter-clockwise props), blades side += add_lathe(bm, [(0.0125, 0.0), (0.0134, 0.0009), (0.0134, 0.0091), (0.0120, 0.0100)], 32, CARBON_IDX, center=axis + ZAX * st["hub0"], solid=True) cap_mat = ANODIZED_IDX if SPIN[i] > 0 else METAL_IDX side += add_lathe(bm, [(0.0092, 0.0), (0.0100, 0.0010), (0.0096, 0.0036), (0.0070, 0.0060), (0.0035, 0.0071), (0.0010, 0.0074)], 32, cap_mat, center=axis + ZAX * (st["hub0"] + 0.0094), solid=True) hub_c = axis + ZAX * st["prop"] psi = math.radians(PROP_PARK_DEG[i]) for sgn in (1.0, -1.0): e_b = Vector((math.cos(psi), math.sin(psi), 0.0)) * sgn scale = (PROP_R + LONG_BLADES) / PROP_R if long_blades else 1.0 side += add_blade(bm, hub_c, e_b, SPIN[i], scale) if unlock: # the arm folded a few degrees back about its hinge pin: not locked open rz = Matrix.Rotation(math.radians(UNLOCK_DEG), 3, "Z") for v in side: v.co = pin + rz @ (v.co - pin) def add_landing_gear(bm, narrow, float_foot): sy_abs = SKID_Y_NARROW if narrow else SKID_Y for s in (1.0, -1.0): sy = s * sy_abs add_tube(bm, [(-SKID_HALF, sy, FOOT_R), (SKID_HALF, sy, FOOT_R)], SKID_R, 16, CARBON_IDX) for sx in (1.0, -1.0): lift = FLOAT_FOOT if (float_foot and s > 0 and sx > 0) else 0.0 rot = frame((sx, 0.0, 0.0), (0.0, 0.0, -1.0)) add_lathe(bm, [(0.0098, 0.0), (0.0115, 0.0025), (0.0115, 0.0220), (0.0105, 0.0285), (0.0075, 0.0325), (0.0030, 0.0345)], 24, RUBBER_IDX, center=(sx * FOOT_X0, sy, FOOT_R + lift), rot=rot, solid=True) # T-collar on the skid, strut into it, root pad under the belly add_lathe(bm, [(0.0098, 0.0), (0.0108, 0.0010), (0.0108, 0.0210), (0.0098, 0.0220)], 24, GRAPHITE_IDX, center=(sx * STRUT_X_BOT - 0.011, sy, FOOT_R), rot=frame((1.0, 0.0, 0.0), (0.0, 0.0, -1.0)), solid=True, phase=math.pi / 24.0) xt, yt = sx * STRUT_X_TOP, s * STRUT_Y_TOP zt = body_bottom(xt, yt) add_rbox(bm, 0.013, 0.011, 0.005, [(0.0012, zt - 0.0068), (0.0, zt - 0.0056), (0.0, zt + 0.0050)], (xt, yt, 0.0), Matrix.Identity(3), GRAPHITE_IDX) add_tube(bm, [(xt, yt, zt - 0.0030), (sx * STRUT_X_BOT, sy, FOOT_R + 0.0040)], STRUT_R, 14, CARBON_IDX) def add_gimbal(bm, bevel_verts, drop_lens): zb = body_bottom(GX, 0.0) zcam = zb - 0.070 ident = Matrix.Identity(3) add_rbox(bm, 0.026, 0.024, 0.006, [(0.0012, zb - 0.0055), (0.0, zb - 0.0043), (0.0, zb + 0.0120)], (GX, 0.0, 0.0), ident, GRAPHITE_IDX) for k, (sx, sy) in enumerate(((1.0, 1.0), (-1.0, 1.0), (-1.0, -1.0), (1.0, -1.0))): add_sphere(bm, (GX + sx * 0.017, sy * 0.016, zb - 0.0108), 0.0058, RUBBER_IDX, spin=k * math.pi / 32.0) add_rbox(bm, 0.022, 0.020, 0.005, [(0.0010, zb - 0.0215), (0.0, zb - 0.0205), (0.0, zb - 0.0165), (0.0010, zb - 0.0155)], (GX, 0.0, 0.0), ident, GRAPHITE_IDX) def band(ii, j): return 0.95 if (j in (2, 3) and ii % 2) else 1.0 # yaw motor add_lathe(bm, [(0.0140, 0.0), (0.0160, 0.0015), (0.0160, 0.0050), (0.0160, 0.0110), (0.0160, 0.0135), (0.0150, 0.0155)], 40, METAL_IDX, center=(GX, 0.0, zb - 0.0360), solid=True, rmod=band) # yaw arm: back, down, forward into the roll motor add_bar(bm, [(GX + 0.008, 0.0, zb - 0.0375), (GX - 0.056, 0.0, zb - 0.0375), (GX - 0.056, 0.0, zcam), (GX - 0.041, 0.0, zcam)], (0.0, 1.0, 0.0), 0.0080, 0.0030, 0.0018, GRAPHITE_IDX) # roll motor (axis along X) rx = frame((1.0, 0.0, 0.0), (0.0, 0.0, 1.0)) add_lathe(bm, [(0.0150, 0.0), (0.0165, 0.0012), (0.0165, 0.0040), (0.0165, 0.0080), (0.0165, 0.0108), (0.0150, 0.0120)], 40, METAL_IDX, center=(GX - 0.050, 0.0, zcam), rot=rx, solid=True, rmod=band) # roll arm: out to the camera's flank and forward to the pitch motor add_bar(bm, [(GX - 0.043, 0.0, zcam), (GX - 0.034, 0.0, zcam), (GX - 0.034, 0.047, zcam), (GX + 0.002, 0.047, zcam)], (0.0, 0.0, 1.0), 0.0080, 0.0030, 0.0018, GRAPHITE_IDX, fillet=0.007) # pitch motor (axis along Y) and the bearing cap opposite ry = frame((0.0, 1.0, 0.0), (0.0, 0.0, 1.0)) add_lathe(bm, [(0.0145, 0.0), (0.0160, 0.0012), (0.0160, 0.0050), (0.0160, 0.0110), (0.0160, 0.0150), (0.0148, 0.0165)], 40, METAL_IDX, center=(GX, 0.0285, zcam), rot=ry, solid=True, rmod=band) add_lathe(bm, [(0.0100, 0.0), (0.0110, 0.0010), (0.0110, 0.0035), (0.0100, 0.0045)], 32, METAL_IDX, center=(GX, -0.0285, zcam), rot=frame((0.0, -1.0, 0.0), (0.0, 0.0, 1.0)), solid=True) # camera body, top grille cam_rot = frame((1.0, 0.0, 0.0), (0.0, 1.0, 0.0)) add_rbox(bm, CAM_HALF[0], CAM_HALF[1], 0.009, [(0.0015, GX - 0.030), (0.0, GX - 0.0285), (0.0, GX + 0.0305), (0.0015, GX + 0.032)], (0.0, 0.0, zcam), cam_rot, GRAPHITE_IDX, n_corner=5) top_rot = Matrix(((1.0, 0.0, 0.0), (0.0, 0.0, -1.0), (0.0, 1.0, 0.0))) # u=x, v=z, w=-y bevel_verts += add_prism(bm, comb_outline(0.0175, -0.0010, 0.0006, 6, 0.0011, 0.0018), -0.016, 0.016, (GX - 0.004, 0.0, zcam + CAM_HALF[1]), top_rot, GRAPHITE_IDX) # lens: ribbed barrel (a ring shell), silver front ring, glass element lx = GX + 0.0305 def ribs(ii, j): return 0.955 if (j in (4, 5) and ii % 2) else 1.0 add_lathe(bm, [(0.0150, 0.0), (0.0198, 0.0), (0.0210, 0.0015), (0.0210, 0.0070), (0.0216, 0.0080), (0.0216, 0.0170), (0.0210, 0.0180), (0.0210, 0.0255), (0.0200, 0.0270), (0.0165, 0.0270), (0.0165, 0.0040), (0.0150, 0.0040)], 64, GRAPHITE_IDX, center=(lx, 0.0, zcam), rot=rx, rmod=ribs) add_lathe(bm, [(0.0180, 0.0245), (0.0212, 0.0245), (0.0219, 0.0252), (0.0219, 0.0285), (0.0206, 0.0292), (0.0180, 0.0292)], 64, METAL_IDX, center=(lx, 0.0, zcam), rot=rx, phase=math.pi / 64.0) gx = lx + (LENS_DROP if drop_lens else 0.0) add_lathe(bm, [(0.0169, 0.0205), (0.0172, 0.0230), (0.0160, 0.0262), (0.0130, 0.0284), (0.0085, 0.0298), (0.0030, 0.0304)], 48, GLASS_IDX, center=(gx, 0.0, zcam), rot=rx, solid=True) def add_top(bm, bevel_verts): """Battery pack, GPS puck, nose grille, flank grilles, visor, tail light, antennas.""" ident = Matrix.Identity(3) # battery: seated below the lowest point of the crown under its footprint hx, hy = BATT_HALF lo = min(body_top(BATT_X + hx * a, hy * b) for a in (-1.0, 0.0, 1.0) for b in (-1.0, 0.0, 1.0)) z0 = lo - 0.004 add_rbox(bm, hx, hy, 0.012, [(0.0015, z0), (0.0, z0 + 0.0015), (0.0, BATT_TOP - 0.0035), (0.0035, BATT_TOP)], (BATT_X, 0.0, 0.0), ident, GRAPHITE_IDX, n_corner=5) top_rot = Matrix(((1.0, 0.0, 0.0), (0.0, 0.0, -1.0), (0.0, 1.0, 0.0))) # u=x, v=z, w=-y bevel_verts += add_prism(bm, comb_outline(0.036, -0.0012, 0.0004, 9, 0.0013, 0.0016), -0.022, 0.022, (BATT_X + 0.004, 0.0, BATT_TOP), top_rot, GRAPHITE_IDX) for s in (1.0, -1.0): rot = frame((0.0, s, 0.0), (1.0, 0.0, 0.0)) zc = BATT_TOP - 0.013 - (0.0003 if s < 0 else 0.0) bevel_verts += add_rbox(bm, 0.013, 0.0055, 0.003, [(0.0, -0.002), (0.0, 0.0022), (0.0010, 0.0032)], (BATT_X + 0.012, s * hy, zc), rot, ANODIZED_IDX) rear = frame((-1.0, 0.0, 0.0), (0.0, 1.0, 0.0)) xr = BATT_X - hx add_lathe(bm, [(0.0034, -0.0020), (0.0034, 0.0010), (0.0028, 0.0018), (0.0012, 0.0021)], 20, METAL_IDX, center=(xr, -0.016, BATT_TOP - 0.013), rot=rear, solid=True) for k in range(4): add_lathe(bm, [(0.0012, -0.0012 - 0.00015 * k), (0.0012, 0.0004 + 0.00015 * k), (0.0007, 0.0009 + 0.00015 * k)], 10, LED_IDX, center=(xr, -0.004 + 0.006 * k, BATT_TOP - 0.013), rot=rear, solid=True, phase=k * math.pi / 20.0) # GPS puck on a mast zt = body_top(GPS_X, 0.0) add_lathe(bm, [(0.0062, -0.004), (0.0062, 0.0100), (0.0055, 0.0106)], 24, GRAPHITE_IDX, center=(GPS_X, 0.0, zt), solid=True) add_lathe(bm, [(0.0200, 0.0), (0.0215, 0.0015), (0.0215, 0.0060), (0.0180, 0.0095), (0.0110, 0.0118), (0.0030, 0.0126)], 40, BODY_IDX, center=(GPS_X, 0.0, zt + 0.0090), solid=True) add_lathe(bm, [(0.0212, 0.0), (0.0222, 0.0005), (0.0222, 0.0022), (0.0212, 0.0027)], 40, GRAPHITE_IDX, center=(GPS_X, 0.0, zt + 0.0080)) # nose grille, laid on the crown p = Vector((VENT_X, 0.0, body_top(VENT_X, 0.0))) rot = surface_frame(p, (1.0, 0.0, 0.0)) grille = Matrix((rot.col[0], rot.col[2], -rot.col[1])).transposed() bevel_verts += add_prism(bm, comb_outline(0.017, -0.0035, 0.0006, 6, 0.0012, 0.0019), -0.019, 0.019, p, grille, GRAPHITE_IDX) # flank grilles, above the parting line behind the rear arms for s in (1.0, -1.0): z = BODY_ZC + 0.0105 p = Vector((-0.086, s * body_side_y(-0.086, z), z)) rot = surface_frame(p, (1.0, 0.0, 0.0)) grille = Matrix((rot.col[0], rot.col[2], -rot.col[1])).transposed() bevel_verts += add_prism(bm, comb_outline(0.017, -0.0035, 0.0005, 5, 0.0011, 0.0016), -0.0045, 0.0045, p, grille, GRAPHITE_IDX) # sensor visor on the nose face, two stereo lenses x_end = BODY_LB * BODY_END + 0.0012 w, ht, hb = body_dims(BODY_LB * BODY_END) zc = BODY_ZC + 0.5 * (ht - hb) nose = frame((1.0, 0.0, 0.0), (0.0, 1.0, 0.0)) bevel_verts += add_prism(bm, rrect(0.0150, 0.0055, 0.0040, 4), -0.004, 0.0012, (x_end, 0.0, zc), nose, GRAPHITE_IDX) for k, s in enumerate((1.0, -1.0)): add_lathe(bm, [(0.0034, -0.0002 * k), (0.0034, 0.0018 + 0.0002 * k), (0.0026, 0.0026 + 0.0002 * k), (0.0010, 0.0030 + 0.0002 * k)], 20, GLASS_IDX, center=(x_end + 0.0004, s * 0.0085, zc), rot=nose, solid=True, phase=k * math.pi / 40.0) # tail light bar w, ht, hb = body_dims(-BODY_LB * BODY_END) zc = BODY_ZC + 0.5 * (ht - hb) tail = frame((-1.0, 0.0, 0.0), (0.0, 1.0, 0.0)) add_prism(bm, rrect(0.018, 0.0028, 0.0024, 4), -0.003, 0.0010, (-x_end, 0.0, zc), tail, LED_IDX) # antennas: down and back from the belly, splayed out for s in (1.0, -1.0): xa, ya = -0.100, s * 0.030 za = body_bottom(xa, ya) add_lathe(bm, [(0.0055, -0.0060), (0.0060, 0.0020), (0.0050, 0.0035)], 20, GRAPHITE_IDX, center=(xa, ya, za + 0.0015), rot=frame((0.0, 0.0, -1.0), (1.0, 0.0, 0.0)), solid=True) d = Vector((-0.42, s * 0.30, -1.0)).normalized() add_lathe(bm, [(0.0036, 0.0), (0.0038, 0.004), (0.0033, 0.030), (0.0030, 0.056), (0.0034, 0.058), (0.0034, 0.066), (0.0024, 0.070), (0.0010, 0.0712)], 16, GRAPHITE_IDX, center=(xa, ya, za - 0.0020), rot=frame(d, (1.0, 0.0, 0.0)), solid=True) def build_drone_mesh(name, bevel_offset, bevel_segments, unlock_arm=False, long_blades=False, narrow_skids=False, float_foot=False, drop_lens=False): bm = bmesh.new() try: bevel_verts = [] add_body(bm) for i in range(4): add_arm(bm, i, bevel_verts, unlock=(unlock_arm and i == UNLOCK_ARM), long_blades=(long_blades and i == UNLOCK_ARM)) add_landing_gear(bm, narrow_skids, float_foot) add_gimbal(bm, bevel_verts, drop_lens) add_top(bm, bevel_verts) if bevel_offset > 0.0: # Chamfer the prism plates' rims, one pass per material with # material= set, over sorted edges. for mat_idx in (GRAPHITE_IDX, ANODIZED_IDX): bm.edges.index_update() edges = sorted( {e for v in bevel_verts if v.is_valid for e in v.link_edges if len(e.link_faces) == 2 and all(f.material_index == mat_idx for f in e.link_faces) and e.calc_face_angle() > math.radians(60.0)}, key=lambda e: e.index, ) if edges: bmesh.ops.bevel(bm, geom=edges, offset=bevel_offset, segments=bevel_segments, profile=0.5, affect="EDGES", clamp_overlap=True, material=mat_idx) bmesh.ops.remove_doubles(bm, verts=list(bm.verts), dist=1e-5) bmesh.ops.dissolve_degenerate(bm, dist=1e-6) triangulate_ngons(bm) zmin = min(v.co.z for v in bm.verts) for v in bm.verts: v.co.z -= zmin if v.co.z < 0.0: v.co.z = 0.0 pack_uvs(bm) bmesh.ops.recalc_face_normals(bm, faces=list(bm.faces)) # Moulded shell, tubes, blades and lathes are smooth-shaded; grilles, # chamfers and knurls stay crisp through sharp edges. for face in bm.faces: face.smooth = True for edge in bm.edges: mats = {f.material_index for f in edge.link_faces} if len(mats) > 1 or not edge.is_manifold or len(edge.link_faces) != 2: edge.smooth = False else: edge.smooth = edge.calc_face_angle() < math.radians(35.0) me = bpy.data.meshes.new(name) bm.to_mesh(me) me.update() finally: bm.free() obj = bpy.data.objects.new(name, me) bpy.context.collection.objects.link(obj) return obj # -------------------------------------------------------------------------- # Materials # -------------------------------------------------------------------------- def principled(name, color, metallic, roughness, roughness_var=0.0, mottle=0.0, noise_scale=14.0, coat=0.0): mat = bpy.data.materials.new(name) mat.use_nodes = True nt = mat.node_tree bsdf = nt.nodes["Principled BSDF"] bsdf.inputs["Base Color"].default_value = color bsdf.inputs["Metallic"].default_value = metallic bsdf.inputs["Roughness"].default_value = roughness if coat > 0.0 and "Coat Weight" in bsdf.inputs: bsdf.inputs["Coat Weight"].default_value = coat bsdf.inputs["Coat Roughness"].default_value = 0.06 if roughness_var > 0.0 or mottle > 0.0: coord = nt.nodes.new("ShaderNodeTexCoord") noise = nt.nodes.new("ShaderNodeTexNoise") noise.inputs["Scale"].default_value = noise_scale noise.inputs["Detail"].default_value = 6.0 nt.links.new(coord.outputs["Object"], noise.inputs["Vector"]) if roughness_var > 0.0: ramp = nt.nodes.new("ShaderNodeValToRGB") lo = max(0.03, roughness - roughness_var) hi = min(0.95, roughness + roughness_var) ramp.color_ramp.elements[0].position = 0.30 ramp.color_ramp.elements[0].color = (lo, lo, lo, 1.0) ramp.color_ramp.elements[1].position = 0.70 ramp.color_ramp.elements[1].color = (hi, hi, hi, 1.0) nt.links.new(noise.outputs["Fac"], ramp.inputs["Fac"]) nt.links.new(ramp.outputs["Color"], bsdf.inputs["Roughness"]) if mottle > 0.0: cramp = nt.nodes.new("ShaderNodeValToRGB") dark = tuple(c * (1.0 - mottle) for c in color[:3]) + (1.0,) cramp.color_ramp.elements[0].position = 0.35 cramp.color_ramp.elements[0].color = dark cramp.color_ramp.elements[1].position = 0.75 cramp.color_ramp.elements[1].color = color nt.links.new(noise.outputs["Fac"], cramp.inputs["Fac"]) nt.links.new(cramp.outputs["Color"], bsdf.inputs["Base Color"]) return mat def _emission(bsdf, color, strength): for key in ("Emission Color", "Emission"): if key in bsdf.inputs: bsdf.inputs[key].default_value = color break if "Emission Strength" in bsdf.inputs: bsdf.inputs["Emission Strength"].default_value = strength def drone_materials(): """(body, carbon, metal, glass, led, rubber, graphite, anodized): shared by the check and the render. The shell is a warm light-grey moulding with a clear coat; arms, skids, hubs and blades are glossy carbon; motors, pins and screws gunmetal; the lens and stereo sensors dark glass; the lights emit red forward of the body's centre and green aft of it (object-space X); feet and dampers rubber; clevises, battery, gimbal and grilles a dark graphite plastic; the lock rings, latches, top bands and the counter-clockwise spinners red anodised aluminium. """ body = principled("DroneShell", (0.60, 0.605, 0.60, 1.0), 0.0, 0.34, roughness_var=0.06, mottle=0.04, noise_scale=30.0, coat=0.25) carbon = principled("DroneCarbon", (0.024, 0.025, 0.028, 1.0), 0.0, 0.26, roughness_var=0.06, mottle=0.12, noise_scale=160.0, coat=0.8) metal = principled("DroneGunmetal", (0.34, 0.35, 0.37, 1.0), 1.0, 0.30, roughness_var=0.08, noise_scale=90.0) glass = principled("DroneLensGlass", (0.012, 0.018, 0.035, 1.0), 0.0, 0.04, coat=1.0) led = principled("DroneNavLight", (1.0, 1.0, 1.0, 1.0), 0.0, 0.25) nt = led.node_tree bsdf = nt.nodes["Principled BSDF"] _emission(bsdf, (1.0, 1.0, 1.0, 1.0), 6.0) coord = nt.nodes.new("ShaderNodeTexCoord") sep = nt.nodes.new("ShaderNodeSeparateXYZ") ramp = nt.nodes.new("ShaderNodeValToRGB") ramp.color_ramp.interpolation = "CONSTANT" ramp.color_ramp.elements[0].position = 0.0 ramp.color_ramp.elements[0].color = (0.05, 1.0, 0.18, 1.0) ramp.color_ramp.elements[1].position = 0.5 ramp.color_ramp.elements[1].color = (1.0, 0.06, 0.03, 1.0) gt = nt.nodes.new("ShaderNodeMath") gt.operation = "GREATER_THAN" gt.inputs[1].default_value = 0.0 nt.links.new(coord.outputs["Object"], sep.inputs["Vector"]) nt.links.new(sep.outputs["X"], gt.inputs[0]) nt.links.new(gt.outputs["Value"], ramp.inputs["Fac"]) nt.links.new(ramp.outputs["Color"], bsdf.inputs["Base Color"]) for key in ("Emission Color", "Emission"): if key in bsdf.inputs: nt.links.new(ramp.outputs["Color"], bsdf.inputs[key]) break rubber = principled("DroneRubber", (0.022, 0.022, 0.024, 1.0), 0.0, 0.72, roughness_var=0.08, noise_scale=80.0) graphite = principled("DroneGraphite", (0.050, 0.052, 0.058, 1.0), 0.0, 0.42, roughness_var=0.08, mottle=0.15, noise_scale=70.0) anodized = principled("DroneAnodised", (0.62, 0.050, 0.030, 1.0), 1.0, 0.32, roughness_var=0.06, noise_scale=60.0) return body, carbon, metal, glass, led, rubber, graphite, anodized def assign_slots(obj, wanted): # Do not materials.clear() — that resets polygon material_index to 0. mats = obj.data.materials for i, mat in enumerate(wanted): if i < len(mats): mats[i] = mat else: mats.append(mat) # -------------------------------------------------------------------------- # Audits # -------------------------------------------------------------------------- def world_bbox(obj): corners = [obj.matrix_world @ Vector(c) for c in obj.bound_box] xs = [c.x for c in corners] ys = [c.y for c in corners] zs = [c.z for c in corners] return (min(xs), min(ys), min(zs), max(xs), max(ys), max(zs)) def uv_stats(mesh): uv = mesh.uv_layers.active if uv is None: return 0.0, 0.0, 1.0, 1.0, 0, 1.0 data = uv.data us = [loop.uv[0] for loop in data] vs = [loop.uv[1] for loop in data] aabbs = [] for poly in mesh.polygons: pu = [data[i].uv[0] for i in poly.loop_indices] pv = [data[i].uv[1] for i in poly.loop_indices] aabbs.append((min(pu), min(pv), max(pu), max(pv))) aabbs.sort() overlap = 0.0 for i, a in enumerate(aabbs): for j in range(i + 1, len(aabbs)): b = aabbs[j] if b[0] >= a[2]: break x0 = max(a[0], b[0]) y0 = max(a[1], b[1]) x1 = min(a[2], b[2]) y1 = min(a[3], b[3]) overlap += max(0.0, x1 - x0) * max(0.0, y1 - y0) return min(us), min(vs), max(us), max(vs), overlap, len(aabbs) def face_area(me, poly): vs = [me.vertices[i].co for i in poly.vertices] if len(vs) < 3: return 0.0 v0 = vs[0] area = 0.0 for i in range(1, len(vs) - 1): area += (vs[i] - v0).cross(vs[i + 1] - v0).length * 0.5 return area def hygiene_audit(me): # Combinatorics match examples/mesh-hygiene-audit.audit (copied, not imported). ngons = sum(1 for p in me.polygons if len(p.vertices) > 4) zero_area = sum(1 for p in me.polygons if face_area(me, p) <= AREA_EPS) bm = bmesh.new() try: bm.from_mesh(me) loose_v = sum(1 for v in bm.verts if len(v.link_edges) == 0) loose_e = sum(1 for e in bm.edges if len(e.link_faces) == 0) nonman = sum(1 for e in bm.edges if not e.is_manifold) ret = bmesh.ops.find_doubles(bm, verts=list(bm.verts), dist=DOUBLES_EPS) doubles = len(ret.get("targetmap") or {}) finally: bm.free() return {"ngons": ngons, "loose_v": loose_v, "loose_e": loose_e, "nonman": nonman, "zero_area": zero_area, "doubles": doubles} def shells(me): neighbors = [[] for _ in range(len(me.vertices))] for edge in me.edges: a, b = edge.vertices neighbors[a].append(b) neighbors[b].append(a) seen = [False] * len(me.vertices) groups = [] for start in range(len(me.vertices)): if seen[start]: continue seen[start] = True stack = [start] group = [] while stack: cur = stack.pop() group.append(cur) for nxt in neighbors[cur]: if not seen[nxt]: seen[nxt] = True stack.append(nxt) groups.append(group) return groups def zfight_pairs(me, groups): """Coplanar face pairs from *different shells* (copied from showcase/grindstone).""" owner = {} for si, g in enumerate(groups): for vi in g: owner[vi] = si faces = [(p.normal.copy(), p.center.copy(), owner.get(p.vertices[0], -1)) for p in me.polygons] kd = KDTree(len(faces)) for i, (_n, c, _s) in enumerate(faces): kd.insert(c, i) kd.balance() hits = 0 for i, (ni, ci, si) in enumerate(faces): for _co, j, _d in kd.find_range(ci, COPLANAR_CENTRE_MAX): if j <= i: continue nj, cj, sj = faces[j] if si == sj: continue if abs(abs(ni.dot(nj)) - 1.0) > COPLANAR_NORMAL_EPS: continue if abs(ni.dot(cj - ci)) > COPLANAR_PLANE_EPS: continue hits += 1 return hits def shell_polys(me, groups): owner = [0] * len(me.vertices) for si, g in enumerate(groups): for vi in g: owner[vi] = si polys = [[] for _ in groups] for p in me.polygons: polys[owner[p.vertices[0]]].append(p) return polys class Shell: def __init__(self, me, idx, verts, polys): self.idx = idx self.verts = verts pts = [me.vertices[i].co.copy() for i in verts] self.pts = pts self.lo = Vector((min(p.x for p in pts), min(p.y for p in pts), min(p.z for p in pts))) self.hi = Vector((max(p.x for p in pts), max(p.y for p in pts), max(p.z for p in pts))) self.size = self.hi - self.lo self.centre = (self.lo + self.hi) * 0.5 self.mean = sum(pts, Vector()) / len(pts) mats = {} for p in polys: mats[p.material_index] = mats.get(p.material_index, 0) + 1 self.mat = max(mats, key=mats.get) if mats else None self.mats = set(mats) remap = {vi: n for n, vi in enumerate(verts)} self.tri_idx = [[remap[v] for v in p.vertices] for p in polys] self.tree = BVHTree.FromPolygons([tuple(p) for p in pts], self.tri_idx) self.polys = polys def pca_axis(pts, largest=True): p = np.array([tuple(v) for v in pts], dtype=np.float64) c = p.mean(axis=0) q = p - c _w, vecs = np.linalg.eigh(q.T @ q) axis = vecs[:, -1] if largest else vecs[:, 0] if axis[2] < 0.0: axis = -axis return c, axis def classify(me): groups = shells(me) polys = shell_polys(me, groups) parts = [Shell(me, i, g, polys[i]) for i, g in enumerate(groups)] out = {"all": parts, "groups": groups} # the shell is two-tone (light canopy, dark belly): the largest shell # that carries any canopy faces bodies = [s for s in parts if BODY_IDX in s.mats] out["body"] = max(bodies, key=lambda s: len(s.verts)) if bodies else None out["bells"] = [s for s in parts if s.mat == METAL_IDX and 0.040 < s.size.x < 0.050 and 0.040 < s.size.y < 0.050 and 0.012 < s.size.z < 0.024] top = min((b.hi.z for b in out["bells"]), default=0.0) carbon = [s for s in parts if s.mat == CARBON_IDX] out["hubs"] = [s for s in carbon if 0.024 < s.size.x < 0.030 and 0.024 < s.size.y < 0.030 and s.size.z < 0.012] out["blades"] = [s for s in carbon if max(s.size.x, s.size.y) > 0.08 and s.size.z < 0.03 and s.lo.z > top - 0.012] out["feet"] = [s for s in parts if s.mat == RUBBER_IDX and s.hi.z < 0.04] return out def feet_audit(cls): return [f.lo.z for f in cls["feet"]] def layout_audit(cls): """Motor axes about the body centre: angular gaps, radii, diagonals, tilt; hub heights and hubs on their motor axes.""" body = cls["body"] cx, cy = (body.centre.x, body.centre.y) if body else (0.0, 0.0) motors = [] for b in cls["bells"]: _c, ax = pca_axis(b.pts, largest=False) tilt = math.degrees(math.acos(min(1.0, abs(float(ax[2]))))) ang = math.degrees(math.atan2(b.mean.y - cy, b.mean.x - cx)) % 360.0 motors.append((ang, b.mean.x, b.mean.y, tilt)) motors.sort() res = {"motors": len(motors), "hubs": len(cls["hubs"]), "angle_err": 0.0, "radius_spread": 0.0, "diag": [], "diag_diff": 0.0, "tilt": 0.0, "hub_z_spread": 0.0, "hub_axis": 0.0, "centroid": 0.0, "angles": []} if len(motors) != MOTOR_COUNT: return res angs = [m[0] for m in motors] gaps = [((angs[(k + 1) % 4] - angs[k]) % 360.0) for k in range(4)] res["angles"] = [round(a, 3) for a in angs] res["angle_err"] = max(abs(g - 90.0) for g in gaps) radii = [math.hypot(m[1] - cx, m[2] - cy) for m in motors] res["radius_spread"] = max(radii) - min(radii) diag = [math.hypot(motors[k][1] - motors[k + 2][1], motors[k][2] - motors[k + 2][2]) for k in range(2)] res["diag"] = diag res["diag_diff"] = abs(diag[0] - diag[1]) res["tilt"] = max(m[3] for m in motors) mx = sum(m[1] for m in motors) / 4.0 my = sum(m[2] for m in motors) / 4.0 res["centroid"] = math.hypot(mx - cx, my - cy) hz = [h.mean.z for h in cls["hubs"]] if hz: res["hub_z_spread"] = max(hz) - min(hz) res["hub_axis"] = max((min(math.hypot(h.mean.x - m[1], h.mean.y - m[2]) for m in motors) for h in cls["hubs"]), default=9.0) return res def clearance_audit(cls): """Per propeller: the swept disc radius of its blades about its motor axis, its blade count, blades seated in the hub; per neighbouring pair of motors, the gap between their discs.""" bells = cls["bells"] motors = sorted(((math.atan2(b.mean.y, b.mean.x) % (2.0 * math.pi), b) for b in bells), key=lambda t: t[0]) res = {"discs": [], "blades": [], "unseated": 0, "clear": []} if len(motors) != MOTOR_COUNT: return res own = {k: [] for k in range(4)} for bl in cls["blades"]: k = min(range(4), key=lambda q: math.hypot(bl.mean.x - motors[q][1].mean.x, bl.mean.y - motors[q][1].mean.y)) own[k].append(bl) for k in range(4): b = motors[k][1] hub = min(cls["hubs"], key=lambda h: math.hypot(h.mean.x - b.mean.x, h.mean.y - b.mean.y)) r = 0.0 for bl in own[k]: r = max(r, max(math.hypot(p.x - b.mean.x, p.y - b.mean.y) for p in bl.pts)) if not bl.tree.overlap(hub.tree): res["unseated"] += 1 res["discs"].append(r) res["blades"].append(len(own[k])) for k in range(4): a, b = motors[k][1], motors[(k + 1) % 4][1] d = math.hypot(a.mean.x - b.mean.x, a.mean.y - b.mean.y) res["clear"].append(d - res["discs"][k] - res["discs"][(k + 1) % 4]) return res def shell_mass(s): vol = 0.0 mom = Vector() for tri in s.tri_idx: a = s.pts[tri[0]] for k in range(1, len(tri) - 1): b, c = s.pts[tri[k]], s.pts[tri[k + 1]] v = a.dot(b.cross(c)) / 6.0 vol += v mom += v * (a + b + c) / 4.0 return vol, (mom / vol if abs(vol) > 1e-15 else s.mean) def stance_audit(cls, lay): """Mass centre against the feet's ground-contact footprint; wheelbase and body size read off the mesh.""" total = 0.0 mom = Vector() for s in cls["all"]: if s.mat is None: continue vol, cen = shell_mass(s) # the moulded shell is weighed as a hollow moulding with its # electronics, whichever tone covers more of it m = abs(vol) * DENSITY[BODY_IDX if s is cls["body"] else s.mat] total += m mom += m * cen com = mom / total # each foot's own sole (its lowest ring), whether or not it is grounded: # grounding is the feet budget's job (exit 16), the footprint's shape is this one's contact = [(p.x, p.y) for f in cls["feet"] for p in f.pts if p.z < f.lo.z + 0.0005] margin = -1.0 if len(contact) >= 3: hull = hull2d(contact) margin = 9.0 for k in range(len(hull)): a, b = hull[k], hull[(k + 1) % len(hull)] ex, ey = b[0] - a[0], b[1] - a[1] ln = math.hypot(ex, ey) margin = min(margin, (ex * (com.y - a[1]) - ey * (com.x - a[0])) / ln) body = cls["body"] wheel = sum(lay["diag"]) / len(lay["diag"]) if lay["diag"] else 0.0 return {"mass": total, "com": com, "margin": margin, "wheelbase": wheel, "body": (body.size.x, body.size.y) if body else (0.0, 0.0)} def connected_components(cls): parts = cls["all"] n = len(parts) parent = list(range(n)) def find(i): while parent[i] != i: parent[i] = parent[parent[i]] i = parent[i] return i for i in range(n): a = parts[i] for j in range(i + 1, n): b = parts[j] if (a.lo.x > b.hi.x or b.lo.x > a.hi.x or a.lo.y > b.hi.y or b.lo.y > a.hi.y or a.lo.z > b.hi.z or b.lo.z > a.hi.z): continue if find(i) == find(j): continue if a.tree.overlap(b.tree): parent[find(i)] = find(j) roots = {find(i) for i in range(n)} sizes = {} for i in range(n): sizes[find(i)] = sizes.get(find(i), 0) + 1 return len(roots), sorted(sizes.values()) def add_stray_vert(me): bm = bmesh.new() try: bm.from_mesh(me) # inside the envelope, so only the hygiene budget can see it bm.verts.new((0.0, 0.0, 0.12)) bm.to_mesh(me) me.update() finally: bm.free() def make_lod(obj, name, ratio, skip_decimate): mesh = obj.data.copy() lod = bpy.data.objects.new(name, mesh) lod.matrix_world = obj.matrix_world.copy() bpy.context.scene.collection.objects.link(lod) if not skip_decimate and 0.0 < ratio < 1.0: mod = lod.modifiers.new("DecimateBudget", "DECIMATE") mod.decimate_type = "COLLAPSE" mod.ratio = ratio return lod def convex_hull_collider(obj, name): # Duplicated from snippets/convex_hull_collider.py (not a package). mesh = bpy.data.meshes.new(name) bm = bmesh.new() try: bm.from_mesh(obj.data) result = bmesh.ops.convex_hull(bm, input=list(bm.verts)) interior = result.get("geom_interior") or [] unused = result.get("geom_unused") or [] if interior: bmesh.ops.delete(bm, geom=interior, context="VERTS") if unused: bmesh.ops.delete(bm, geom=unused, context="VERTS") bm.to_mesh(mesh) mesh.update() finally: bm.free() collider = bpy.data.objects.new(name, mesh) bpy.context.collection.objects.link(collider) collider.matrix_world = obj.matrix_world.copy() return collider def setup_bake_image(obj, target_mat, size=BAKE_RES): # Adapted from snippets/setup_bake_target_image.py — do not replace slots. if not obj.data.uv_layers: return None, None img = bpy.data.images.new("DroneNrm", size, size, alpha=True, float_buffer=False) img.colorspace_settings.name = "Non-Color" nodes = target_mat.node_tree.nodes tex = nodes.new("ShaderNodeTexImage") tex.image = img nodes.active = tex tex.select = True obj.active_material_index = GRAPHITE_IDX return img, tex def bake_normal(high, low): # Duplicated from snippets/bake_normal_high_to_low.py (not a package). scene = bpy.context.scene scene.render.engine = "CYCLES" scene.cycles.device = "CPU" scene.cycles.samples = 1 scene.cycles.use_denoising = False for ob in bpy.context.view_layer.objects: ob.select_set(False) high.select_set(True) low.select_set(True) bpy.context.view_layer.objects.active = low return bpy.ops.object.bake( type="NORMAL", use_selected_to_active=True, cage_extrusion=CAGE_EXTRUSION, use_cage=False, normal_space="TANGENT", margin=4, margin_type="ADJACENT_FACES", use_clear=True, target="IMAGE_TEXTURES", ) def export_unity(path, objects): # Duplicated from snippets/export_preset_unity.py (not a package). for ob in bpy.context.view_layer.objects: ob.select_set(False) for ob in objects: ob.select_set(True) bpy.context.view_layer.objects.active = objects[0] bpy.ops.export_scene.gltf( filepath=path, use_selection=True, export_yup=True, export_apply=True, export_draco_mesh_compression_enable=False, export_animations=False, ) def check(skip_decimate, lift_z=False, stray_vert=False, float_foot=False, unlock_arm=False, long_blades=False, narrow_skids=False, drop_lens=False): bpy.ops.wm.read_factory_settings(use_empty=True) flags = dict(unlock_arm=unlock_arm, long_blades=long_blades, narrow_skids=narrow_skids, float_foot=float_foot, drop_lens=drop_lens) low = build_drone_mesh("DroneLow", bevel_offset=0.0005, bevel_segments=1, **flags) high = build_drone_mesh("DroneHigh", bevel_offset=0.0005, bevel_segments=3, **flags) mats = drone_materials() assign_slots(low, mats) assign_slots(high, mats) # The bake targets the graphite: the grilles, lugs and tongues are where # the high mesh's rounder chamfer differs from the low. target = mats[GRAPHITE_IDX] if stray_vert: add_stray_vert(low.data) if lift_z: for v in low.data.vertices: v.co.z += LIFT_Z low.data.update() none3 = (None, None, None) if low.data is None or len(low.data.polygons) < 6: return (fail("drone mesh did not build", 3),) + none3 base_tris = triangle_count(low.data) slots = [s for s in low.data.materials if s is not None] nmat = len(slots) distinct_mats = len({id(s) for s in slots}) idx_counts = {} for poly in low.data.polygons: idx_counts[poly.material_index] = idx_counts.get(poly.material_index, 0) + 1 print(f"measured mat_index_counts={dict(sorted(idx_counts.items()))}") u0, v0, u1, v1, overlap, nfaces = uv_stats(low.data) bb = world_bbox(low) size_x, size_y, size_z = bb[3] - bb[0], bb[4] - bb[1], bb[5] - bb[2] hyg = hygiene_audit(low.data) cls = classify(low.data) zf = zfight_pairs(low.data, cls["groups"]) feet = feet_audit(cls) lay = layout_audit(cls) clr = clearance_audit(cls) stance = stance_audit(cls, lay) ncomp, comp_sizes = connected_components(cls) img, tex = setup_bake_image(low, target) if img is None: return (fail("drone has no UV layer", 3),) + none3 bake_result = bake_normal(high, low) lod1 = make_lod(low, "DroneLOD1", LOD1_TARGET, skip_decimate) lod2 = make_lod(low, "DroneLOD2", LOD2_TARGET, skip_decimate) bpy.context.view_layer.update() lod1_tris = evaluated_triangle_count(lod1) lod2_tris = evaluated_triangle_count(lod2) r1 = lod1_tris / base_tris if base_tris else 0.0 r2 = lod2_tris / base_tris if base_tris else 0.0 collider_src = build_drone_mesh("DroneColSrc", bevel_offset=0.0, bevel_segments=1) collider = convex_hull_collider(collider_src, "DroneCollider") bpy.data.objects.remove(collider_src, do_unlink=True) col_tris = triangle_count(collider.data) export_path = os.path.join(tempfile.gettempdir(), f"bdt_quad_drone_{os.getpid()}.glb") if os.path.exists(export_path): os.remove(export_path) export_unity(export_path, [low, collider]) export_size = os.path.getsize(export_path) if os.path.isfile(export_path) else 0 if os.path.isfile(export_path): try: os.remove(export_path) except OSError: pass print(f"blender={tuple(bpy.app.version)} skip_decimate={skip_decimate}") print(f"measured base_tris={base_tris} lod1_tris={lod1_tris} " f"lod2_tris={lod2_tris} r1={r1:.4f} r2={r2:.4f}") print(f"measured nmat={nmat} uv=({u0:.4f},{v0:.4f})-({u1:.4f},{v1:.4f}) " f"overlap={overlap:.6f} nfaces={nfaces}") print(f"measured bbox=({size_x:.4f},{size_y:.4f},{size_z:.4f}) " f"outer={OUTER_SIZE} zmin={bb[2]:.4f} min=({bb[0]:.4f},{bb[1]:.4f})") print(f"measured collider_tris={col_tris} bake={bake_result} " f"bake_has_data={img.has_data} export_bytes={export_size}") print(f"measured hygiene loose_v={hyg['loose_v']} loose_e={hyg['loose_e']} " f"nonman={hyg['nonman']} zero_area={hyg['zero_area']} " f"doubles={hyg['doubles']} ngons={hyg['ngons']} zfight={zf}") print(f"measured shells={len(cls['all'])} feet={len(feet)} " f"feet_zmin={[round(z, 5) for z in feet]}") print(f"measured motors={lay['motors']} hubs={lay['hubs']} angles={lay['angles']} " f"angle_err={lay['angle_err']:.4f} radius_spread={lay['radius_spread']:.6f} " f"diag={[round(d, 5) for d in lay['diag']]} diag_diff={lay['diag_diff']:.6f} " f"tilt={lay['tilt']:.4f} hub_z_spread={lay['hub_z_spread']:.6f} " f"hub_axis={lay['hub_axis']:.6f} centroid={lay['centroid']:.6f}") print(f"measured blades={clr['blades']} unseated={clr['unseated']} " f"discs={[round(r, 5) for r in clr['discs']]} " f"clear={[round(c, 5) for c in clr['clear']]}") print(f"measured mass={stance['mass']:.3f}kg com=({stance['com'].x:.4f}," f"{stance['com'].y:.4f},{stance['com'].z:.4f}) margin={stance['margin']:.4f} " f"wheelbase={stance['wheelbase']:.5f} body=({stance['body'][0]:.4f}," f"{stance['body'][1]:.4f})") print(f"measured components={ncomp} sizes={comp_sizes[-5:]}") if not (BASE_TRIS_MIN <= base_tris <= BASE_TRIS_MAX): return (fail(f"base tris {base_tris} not in [{BASE_TRIS_MIN}, {BASE_TRIS_MAX}]", 4),) + none3 if nmat != MATERIAL_COUNT or distinct_mats != MATERIAL_COUNT: return (fail(f"material slots {nmat} distinct {distinct_mats} != {MATERIAL_COUNT}", 5),) + none3 floors = ((BODY_IDX, BODY_FACES_MIN, "shell"), (CARBON_IDX, CARBON_FACES_MIN, "carbon"), (METAL_IDX, METAL_FACES_MIN, "gunmetal"), (GLASS_IDX, GLASS_FACES_MIN, "glass"), (LED_IDX, LED_FACES_MIN, "light"), (RUBBER_IDX, RUBBER_FACES_MIN, "rubber"), (GRAPHITE_IDX, GRAPHITE_FACES_MIN, "graphite"), (ANODIZED_IDX, ANODIZED_FACES_MIN, "anodised")) for idx, floor, label in floors: if idx_counts.get(idx, 0) < floor: return (fail(f"{label} faces {idx_counts.get(idx, 0)} < {floor}", 5),) + none3 if u0 < -UV_EPS or v0 < -UV_EPS or u1 > 1.0 + UV_EPS or v1 > 1.0 + UV_EPS: return (fail(f"UVs outside 0..1: ({u0:.4f},{v0:.4f})-({u1:.4f},{v1:.4f})", 6),) + none3 if overlap > UV_OVERLAP_MAX: return (fail(f"UV AABB overlap {overlap:.6f} > {UV_OVERLAP_MAX}", 7),) + none3 if (abs(size_x - OUTER_SIZE[0]) > BBOX_TOL or abs(size_y - OUTER_SIZE[1]) > BBOX_TOL or abs(size_z - OUTER_SIZE[2]) > BBOX_TOL): return (fail(f"bbox ({size_x:.4f},{size_y:.4f},{size_z:.4f}) off outer {OUTER_SIZE}", 8),) + none3 if not (LOD1_RATIO_MIN <= r1 <= LOD1_RATIO_MAX): return (fail(f"LOD1 ratio {r1:.4f} not in [{LOD1_RATIO_MIN}, {LOD1_RATIO_MAX}] " "(--skip-decimate is the designed fail)", 9),) + none3 if not (LOD2_RATIO_MIN <= r2 <= LOD2_RATIO_MAX): return (fail(f"LOD2 ratio {r2:.4f} not in [{LOD2_RATIO_MIN}, {LOD2_RATIO_MAX}]", 9),) + none3 if col_tris > COLLIDER_TRIS_MAX: return (fail(f"collider tris {col_tris} > {COLLIDER_TRIS_MAX}", 11),) + none3 if bake_result != {"FINISHED"} or not img.has_data: return (fail(f"bake failed result={bake_result} has_data={img.has_data}", 12),) + none3 if export_size <= 0: return (fail("export file missing or empty", 13),) + none3 if (hyg["loose_v"] or hyg["loose_e"] or hyg["nonman"] or hyg["zero_area"] or hyg["doubles"] or hyg["ngons"] or zf): return (fail(f"hygiene {hyg} zfight={zf}", 15),) + none3 if bb[2] > ZMIN_EPS: return (fail(f"grounded zmin={bb[2]:.5f}", 16),) + none3 if len(feet) != FEET_COUNT or max(feet) > ZMIN_EPS: return (fail(f"feet: {len(feet)} (want {FEET_COUNT}), zmin per foot " f"{[round(z, 5) for z in feet]} (each must be within {ZMIN_EPS} of 0)", 16),) + none3 if (lay["motors"] != MOTOR_COUNT or lay["hubs"] != MOTOR_COUNT or lay["angle_err"] > ANGLE_TOL_DEG or lay["radius_spread"] > RADIUS_TOL or lay["diag_diff"] > DIAG_TOL or lay["tilt"] > AXIS_TILT_MAX_DEG or lay["hub_z_spread"] > HUB_Z_TOL or lay["hub_axis"] > HUB_AXIS_TOL or lay["centroid"] > CENTROID_TOL): return (fail(f"motor layout off an exact X: {lay}", 17),) + none3 if (len(clr["discs"]) != MOTOR_COUNT or any(n != BLADES_PER_PROP for n in clr["blades"]) or clr["unseated"] or any(not (CLEAR_MIN <= c <= CLEAR_MAX) for c in clr["clear"])): return (fail(f"propeller clearance: discs {[round(r, 4) for r in clr['discs']]}, " f"gaps {[round(c, 4) for c in clr['clear']]} (band [{CLEAR_MIN}, " f"{CLEAR_MAX}]), blades {clr['blades']}, unseated {clr['unseated']}", 18),) + none3 if (stance["margin"] < STANCE_MARGIN or abs(stance["wheelbase"] - WHEELBASE) > WHEELBASE_TOL or abs(stance["body"][0] - BODY_LEN) > BODY_TOL or abs(stance["body"][1] - BODY_WIDTH) > BODY_TOL): return (fail(f"stance: mass centre margin {stance['margin']:.4f} < {STANCE_MARGIN} " f"or size off: {stance}", 19),) + none3 if ncomp != 1: return (fail(f"assembly splits into {ncomp} components {comp_sizes}", 20),) + none3 return 0, low, target, tex def wire_normal(mat, tex): nt = mat.node_tree bsdf = nt.nodes["Principled BSDF"] nrm = nt.nodes.new("ShaderNodeNormalMap") nrm.inputs["Strength"].default_value = 1.0 nt.links.new(tex.outputs["Color"], nrm.inputs["Color"]) nt.links.new(nrm.outputs["Normal"], bsdf.inputs["Normal"]) def render_still(low, target, tex, path, engine): scene = bpy.context.scene wire_normal(target, tex) for ob in list(scene.objects): if ob.type == "MESH" and ob != low: ob.hide_render = True ob.hide_viewport = True low.rotation_euler.z = math.radians(HERO_YAW_DEG) bpy.context.view_layer.update() bb = world_bbox(low) centre = Vector((0.5 * (bb[0] + bb[3]), 0.5 * (bb[1] + bb[4]), 0.5 * (bb[2] + bb[5]))) floor_me = bpy.data.meshes.new("Floor") bm = bmesh.new() try: bmesh.ops.create_grid(bm, x_segments=1, y_segments=1, size=60.0) bm.to_mesh(floor_me) finally: bm.free() fmat = bpy.data.materials.new("Floor") fmat.use_nodes = True fb = fmat.node_tree.nodes["Principled BSDF"] fb.inputs["Base Color"].default_value = (0.03, 0.032, 0.037, 1.0) fb.inputs["Roughness"].default_value = 0.7 floor_me.materials.append(fmat) floor = bpy.data.objects.new("Floor", floor_me) scene.collection.objects.link(floor) wall = bpy.data.objects.new("Wall", floor_me.copy()) wall.location = (0.0, centre.y + WALL_Y, 0.0) wall.rotation_euler = (math.radians(90), 0.0, 0.0) scene.collection.objects.link(wall) world = bpy.data.worlds.new("World") world.use_nodes = True world.node_tree.nodes["Background"].inputs["Color"].default_value = (0.02, 0.021, 0.025, 1.0) scene.world = world def light(name, offset, energy, size, col, target=None, spread=None): ld = bpy.data.lights.new(name, "AREA") ld.energy = energy ld.size = size ld.color = col if spread is not None: ld.spread = math.radians(spread) ob = bpy.data.objects.new(name, ld) ob.location = centre + Vector(offset) aim_at = centre if target is None else Vector(target) ob.rotation_euler = (aim_at - ob.location).normalized().to_track_quat("-Z", "Y").to_euler() scene.collection.objects.link(ob) # The house rig scaled to a 0.7 m prop: warm key upper left, cool fill # low right, cool rim behind, warm wedge pooled on the back wall. light("Key", (-1.4, -1.8, 1.9), 45.0, 1.0, (1.0, 0.95, 0.90), spread=20.0) light("Fill", (2.0, -1.3, 0.4), 7.0, 2.6, (0.72, 0.82, 1.0)) light("Rim", (-0.6, 1.1, 1.0), 30.0, 0.8, (0.62, 0.78, 1.0)) light("Wedge", (1.0, 1.2, 0.7), 45.0, 1.2, (1.0, 0.68, 0.38), target=(centre.x + 1.4, centre.y + WALL_Y, 0.45)) cam_data = bpy.data.cameras.new("Cam") cam_data.lens = 50.0 cam = bpy.data.objects.new("Cam", cam_data) view = Vector((-0.55, -0.80, 0.0)).normalized() cam.location = centre + view * 1.17 + Vector((0.0, 0.0, 0.48)) scene.collection.objects.link(cam) aim = bpy.data.objects.new("Aim", None) aim.location = centre + Vector((0.0, 0.0, -0.012)) scene.collection.objects.link(aim) con = cam.constraints.new("TRACK_TO") con.target = aim con.track_axis = "TRACK_NEGATIVE_Z" con.up_axis = "UP_Y" scene.camera = cam scene.render.engine = "CYCLES" if engine == "cycles" else eevee_engine_id() if engine == "cycles": scene.cycles.samples = 32 scene.cycles.device = "CPU" else: try: scene.eevee.taa_render_samples = 64 except AttributeError: pass scene.render.resolution_x = 1280 scene.render.resolution_y = 720 scene.render.image_settings.file_format = "WEBP" if path.lower().endswith(".webp") else "PNG" if path.lower().endswith(".webp"): scene.render.image_settings.quality = 90 scene.render.filepath = path # Standard, not AgX: AgX washes the red anodising toward pastel scene.view_settings.view_transform = "Standard" fcode = gallery_framing.check_framing(scene, cam, hero=[low], elements=[low], stage=[floor, wall]) if fcode: return fcode # asset-quality floors return 11, which this piece spends on the # collider ceiling; remap at the call site if gallery_asset_quality.check_asset_quality(scene, cam, [low], stage=[floor, wall]): return 21 bpy.ops.render.render(write_still=True) if not (os.path.exists(path) and os.path.getsize(path) > 0): return fail("render produced no file", 14) return 0 def main(): argv = sys.argv[sys.argv.index("--") + 1:] if "--" in sys.argv else [] p = argparse.ArgumentParser() p.add_argument("--output", default=None) p.add_argument("--engine", default="eevee", choices=("eevee", "cycles")) p.add_argument("--skip-decimate", action="store_true") p.add_argument("--stray-vert", action="store_true") p.add_argument("--lift-z", action="store_true") p.add_argument("--float-foot", action="store_true") p.add_argument("--unlock-arm", action="store_true") p.add_argument("--long-blades", action="store_true") p.add_argument("--narrow-skids", action="store_true") p.add_argument("--drop-lens", action="store_true") args = p.parse_args(argv) code, low, target, tex = check( args.skip_decimate, lift_z=args.lift_z, stray_vert=args.stray_vert, float_foot=args.float_foot, unlock_arm=args.unlock_arm, long_blades=args.long_blades, narrow_skids=args.narrow_skids, drop_lens=args.drop_lens, ) if code: return code if args.output: rcode = render_still(low, target, tex, os.path.abspath(args.output), args.engine) if rcode: return rcode print(f"rendered still {args.output}") print("quad-drone OK") return 0 if __name__ == "__main__": try: sys.exit(main()) except Exception as e: traceback.print_exc() print(f"FATAL: {e}", file=sys.stderr) sys.exit(1)
